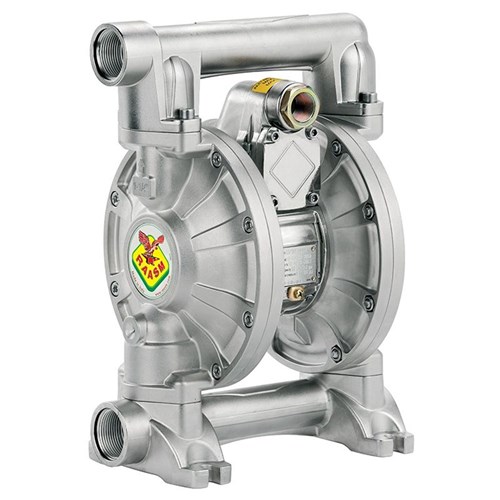

The RAASM Diaphragm Pumps are designed and manufactured for Pumping a wide range of fluids. They can be used in heavy-duty conditions such as places with high humidity or a potentially explosive atmosphere.
FEATURES AND BENEFITS
- High-performance air-operated diaphragm pump
- Made of durable and corrosion-resistant die-cast aluminium
- ATEX certified for use in hazardous environments
- Maximum flow rate of 200 l/min
- Can handle fluids with high viscosity and suspended solids
- Self-priming
- Simple design with few moving parts
- Easy to maintain and repair
- Long service life
- Wide range of applications
- 10-year warranty
- Suitable for oil, waste oil, coolant & diesel
The RAASM Diaphragm Pumps - 1 1/4"" Series Aluminium Pump 200 LPM can be partially or completely immersed in a fluid, making them ideal for pumping fluids from tanks, drums, and other containers. The pumps can also be used to transfer fluids between different containers.
Compressed air is a more suitable power source for the RAASM Diaphragm Pumps than electric power, especially in places with a potentially explosive atmosphere. This is because compressed air does not produce sparks, which could ignite flammable fluids. The RAASM Diaphragm Pumps meet ATEX requirements and can be used in these types of environments.
To start or stop the pump, simply open or close the delivery valve. The structure and internal composition of the RAASM Diaphragm Pumps minimizes wear on the seal parts, which ensures lasting efficiency.
SPECIFICATIONS
| Compression Ratio | 1:1 |
| Flow Rate | 200 L/min |
| Max Pressure | 8 Bar |
| Max suction lift | dry column 5m- wet column 7.5m |
| Max pumpable size | 3mm |
| Noise level | 75dB |
| Weight | 15Kg |
| Suitable for | New Oil, Water, Coolant, Waste Oil & Diesel |
MODELS AVAILABLE
RAASM 1"" Series Aluminium Pump 610 LPM (RA-3C1/50111NHH)
RAASM 1 1/2"" Series Aluminium Pump 480 LPM (RA-3C1/40111NHH)
RAASM 3/4"" Series Aluminium Pump 610 LPM (RA-3C1/50111NHH)
RAASM 2"" Series Aluminium Pump 610 LPM (RA-3C1/50111NHH)
