The RAASM Diaphragm Pumps are designed and manufactured for Pumping a wide range of fluids. They can be used in heavy-duty conditions such as places with high humidity or a potentially explosive atmosphere.

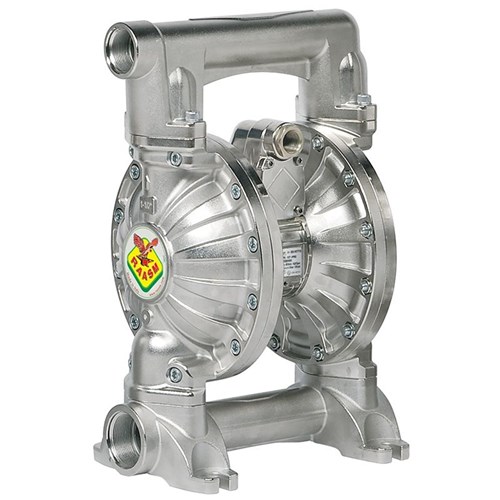

The RAASM Diaphragm Pumps - 1 1/2" Series Aluminium Pump 480 LPM are a high-performance, air-operated diaphragm pump that is ideal for a wide range of demanding applications. The pumps are made of die-cast aluminium for durability and corrosion resistance, and they are ATEX certified for use in hazardous environments. The RAASM Diaphragm Pump - 1 1/2" Series Aluminium Pump 480 LPM have a maximum flow rate of 480 l/min, which makes them a good choice for applications that require a high volume of fluid transfer. The pumps can also handle fluids with high viscosity and suspended solids.
The RAASM Diaphragm Pumps are self-priming, so they can be used with a variety of fluids without the need for a priming tank. The pumps also have a simple design with few moving parts, which makes them easy to maintain and repair.
SPECIFICATIONS
| Compression Ratio | 1:1 |
| Flow Rate | 480 L/min |
| Max Pressure | 8 Bar |
| Max suction lift | dry column 5m- wet column 7.5m |
| Max pumpable size | 5.5mm |
| Noise level | 78dB |
| Weight | 21.5Kg |
| Suitable for | Oil (Including Mineral & Vegetable Oils), Water, Coolant, Abrasive Fluids & Diesel |
MODELS AVAILABLE
RAASM 3/4" Series Aluminium Diaphragm Pump 70LPM (AF-RA-3C1/16111NHH
RAASM 1" Series Aluminium Diaphragm Pump 170LPM (AF-RA-3C1/26111NHH)
RAASM 1 1/4" Series Aluminium Pump 200 LPM (AF-RA-3C1/30111NHH)
RAASM 1 1/2" Series Aluminium Pump Diaphragm 480 LPM (AF-RA-3C1/40111NHH)
RAASM 2" Series Aluminium Diaphragm Pump 610 LPM (AF-RA-3C1/50111NHH)
