A-FLO supplies a reliable range of heavy vehicle workshop jacks designed to lift buses, trucks, trailers, and industrial equipment with safety and efficiency. Built to handle extreme loads and intensive use, these jacks are essential in transport depots, commercial workshops, and mine sites where equipment uptime is critical.

Our solutions include the full range of Mammut jack stands and air/hydraulic heavy vehicle jacks – with capacities ranging from 20 up to 200 tonnes. Each model is selected for its proven performance in demanding workshop environments, helping technicians service large vehicles safely and with minimal manual effort.

Key Features and Benefits

High-Tonnage Capacity: Lifting solutions up to 150T for the heaviest vehicles.
Compact, Mobile Designs: Easy to manoeuvre within tight workshop spaces.
Pneumatic and Manual Options: Cater to various power sources and operational preferences.
Safety Lock Mechanisms: Ensure safe, stable operation during lifting and servicing.
Rapid Lift Times: Reduce downtime during tyre, suspension, or underbody maintenance.
Built to Withstand Harsh Environments: Ideal for mining, military, and industrial workshops.

We offer a broad range of Heavy Duty Vehicle Jacks

110 Ton Jack Stand

Capacity: 100 t / 110 ton
Min. height: 700 mm / 27.5”
Max. height: 1,150 mm / 54.3”
Positions: 5
Air requirement: 4-12 bar (58-174 psi)

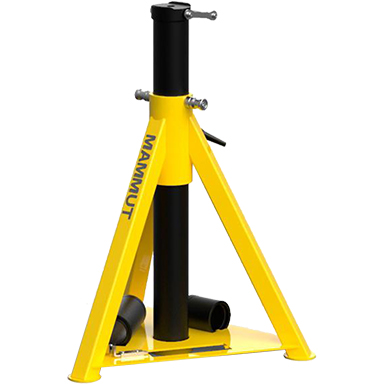

20 Ton Jack Stand

Capacity: 20 t / 22 ton
Net weight: 50 kg / 110 lb
Min. height: 700 mm / 27.5”
Max. height: 1200 mm / 47.2”
Positions: 6
Air requirement: None

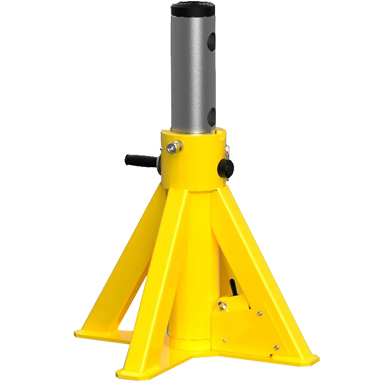

50 Ton Jack Stand

Capacity: 50 t / 55.1 ton
Net weight: 115 kg / 253 lb
Min. height: 600 mm / 23.6”
Max. height: 1000 mm / 39.3”
Positions: 6
Air requirement: 4-12 bar / 58-174 psi

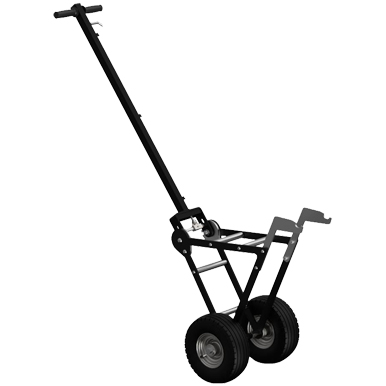

Jack Trolley

The lightest, most agile and most compact jack stands trolley on the market. Optional trolley, allow a single operator to quickly move the jack stand as needed. Provided with pneumatic wheels, suitable for uneven ground. The handle is adjustable in three positions in order to pick and move the jack stand at different height regulations.

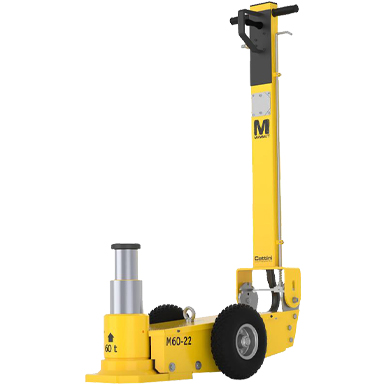

Mammut Air/Hydraulic heavy vehicle jacks: 60/30 t

Air/Hydraulic Heavy Vehicle Jack: 60/30 t

Capacity: 60/30 t / 66.1/33.1 ton
Net weight: 93 Kg / 205 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 222 mm / 8.7 in
Max height: 448mm / 17.6 in
Number of pistons: 2
Pistons Stroke: 226 mm / 8.8 in

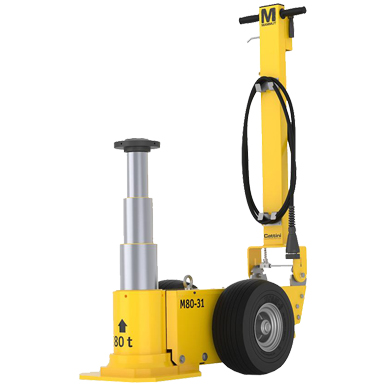

Mammut Air/Hydraulic heavy vehicle jacks: 80/50/25 t

Air/Hydraulic Heavy Vehicle Jack: 80/50/25 t

Capacity: 80/50/25 t / 88.2/55.1/27.6 ton
Net weight: 163 Kg / 359 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 342 mm / 13.5 in
Max height: 848 mm / 33.4 in
Number of pistons: 3
Pistons Stroke: 506 mm / 19.9 in

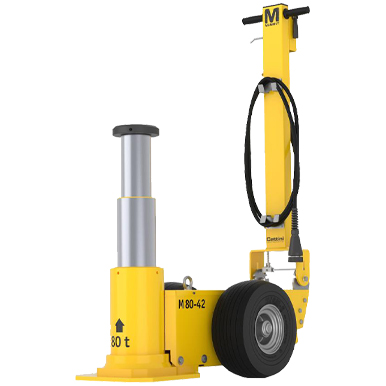

Air/Hydraulic Heavy Vehicle Jack: 80/50 t

Capacity: 80/50 t / 88.2/55.1 ton
Net weight: 173 kg / 381 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 419 mm / 16.4 in
Max height: 839 mm / 33 in
Number of pistons: 2
Pistons Stroke: 420 mm / 16.5 in

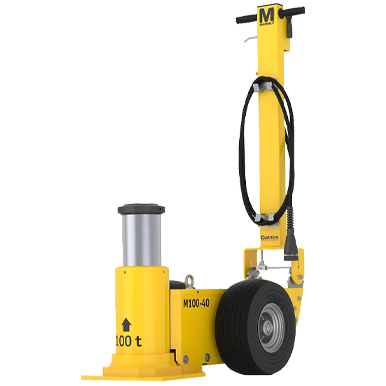

Lightweight Air/Hydraulic Heavy Vehicle Jack: 100 t

Capacity: 100 t / 110.2 ton
Net weight: 168 kg / 370 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 399 mm / 15.7 in
Max height: 602 mm / 23.7 in
Number of pistons: 1
Pistons Stroke: 203 mm / 8 in

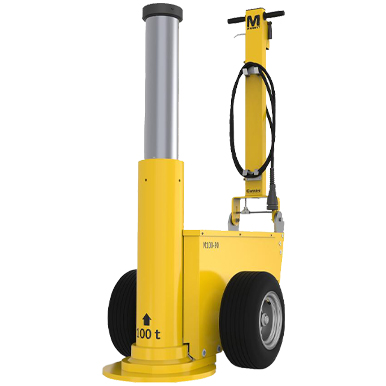

Air/Hydraulic Heavy Vehicle Jack: 100 t

Capacity: 100 t / 110.2 ton
Net weight: 377 kg / 831 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 900 mm / 35.4 in
Max height: 1466 mm / 57.7 in
Number of pistons: 1
Pistons Stroke: 566 mm / 22.2 in

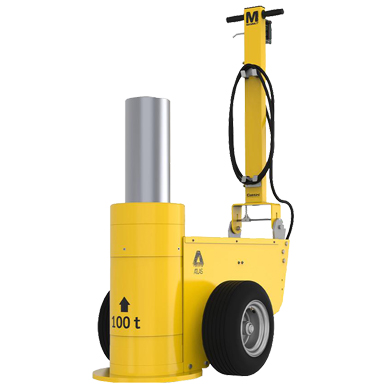

ATLAS Air/Hydraulic Locking Heavy Vehicle Jacks: 100 t

Two in one jack that can also mechanically lock and turn into a jack stand.
Capacity: 100 t / 110.2 ton
Net weight: 427 kg / 941 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 722 mm / 28.4 in
Max height: 1062 mm / 46.9 in
Number of pistons: 1
Pistons Stroke: 340 mm / 13.3 in

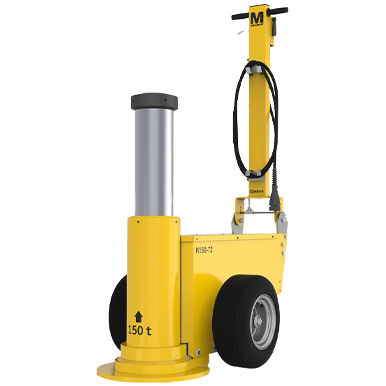

Mammut Air/Hydraulic Heavy Vehicle Jack With Remote: 150 t

Mammut Air/Hydraulic Heavy Vehicle Jack: 150 t

Remote control as standard
Capacity: 150 t / 165.3 ton
Net weight: 367 kg / 809 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 720 mm / 28.3 in
Max height: 1092 mm / 42.9 in
Number of pistons: 1
Pistons Stroke: 372 mm / 14.6 in

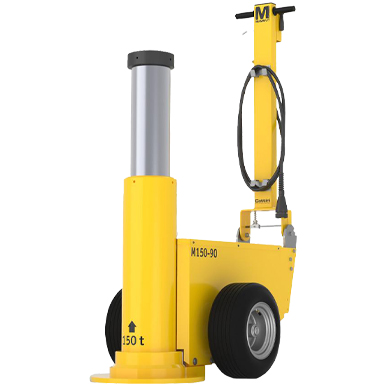

Mammut Air/Hydraulic Heavy Vehicle Jack: 150 t

Remote control optional
Capacity: 150 t / 165.3 ton
Net weight: 377 Kg / 831 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 901 mm / 35.4 in
Max height: 1455 mm / 57.2 in
Number of pistons: 1
Pistons Stroke: 554 mm / 21.8 in

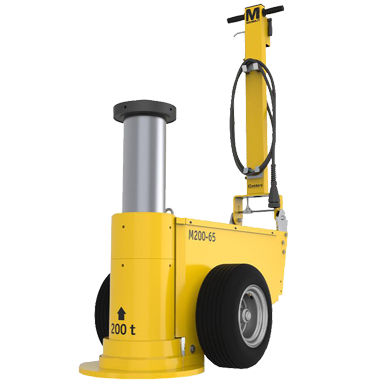

Mammut Air/Hydraulic Heavy Vehicle Jack: 200 t

Remote control optional
Capacity: 200 t / 220.4 ton
Net weight: 385 kg / 848 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 650 mm / 25.5 in
Max height: 1000 mm / 39.3 in
Number of pistons: 1
Pistons Stroke: 350 mm / 13.7 in

Mammut Air/Hydraulic Heavy Vehicle Jack With Remote: 200 t

Mammut Air/Hydraulic Heavy Vehicle Jack: 200 t

Remote control as standard
Capacity: 200 t / 220.4 ton
Net weight: 450 kg / 992 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Min. height: 900 mm / 35.4 in
Max height: 1450 mm / 57 in
Number of pistons: 1
Pistons Stroke: 550 mm / 21.6 in
