Air Operated Oil Transfer Pumps

RAASM 3/4" Series Aluminium Pump 70L/min

Product Code: AF-RA-3C1/16111NHH

Brand
RAASM
Increase value Decrease value
Description

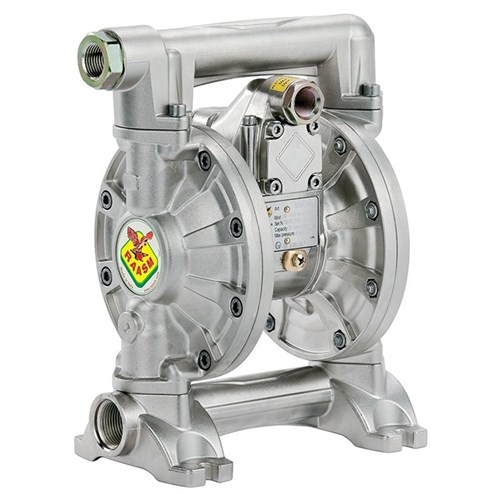

RAASM 3/4" Series Aluminium Diaphragm Pump

Diaphragm pumps for transferring industrial
fluids compatible with the materials of the pumps,
made from die-cast aluminium, with high quality
components, they ensure lasting and reliable
operation even in extreme conditions

Features and Benefits

Flow rate: 70 LPM
Ratio: 1:1
Max Pressure: 8 Bar
Max suction lift: dry column 4.5m- wet column 7.5m
Max pumpable size: 1.5mm
Noise level: 75dB
Air working pressure: 2 - 6 Bar
Air inlet connection: G 3/8 (f)
Fluid inlet connection: G 3/4 (f)
Fluid outlet connection: G 1/2 (f)
Weight: 6.3Kg
Suitable for New Oil, Water, Coolant, Waste Oil & Diesel
