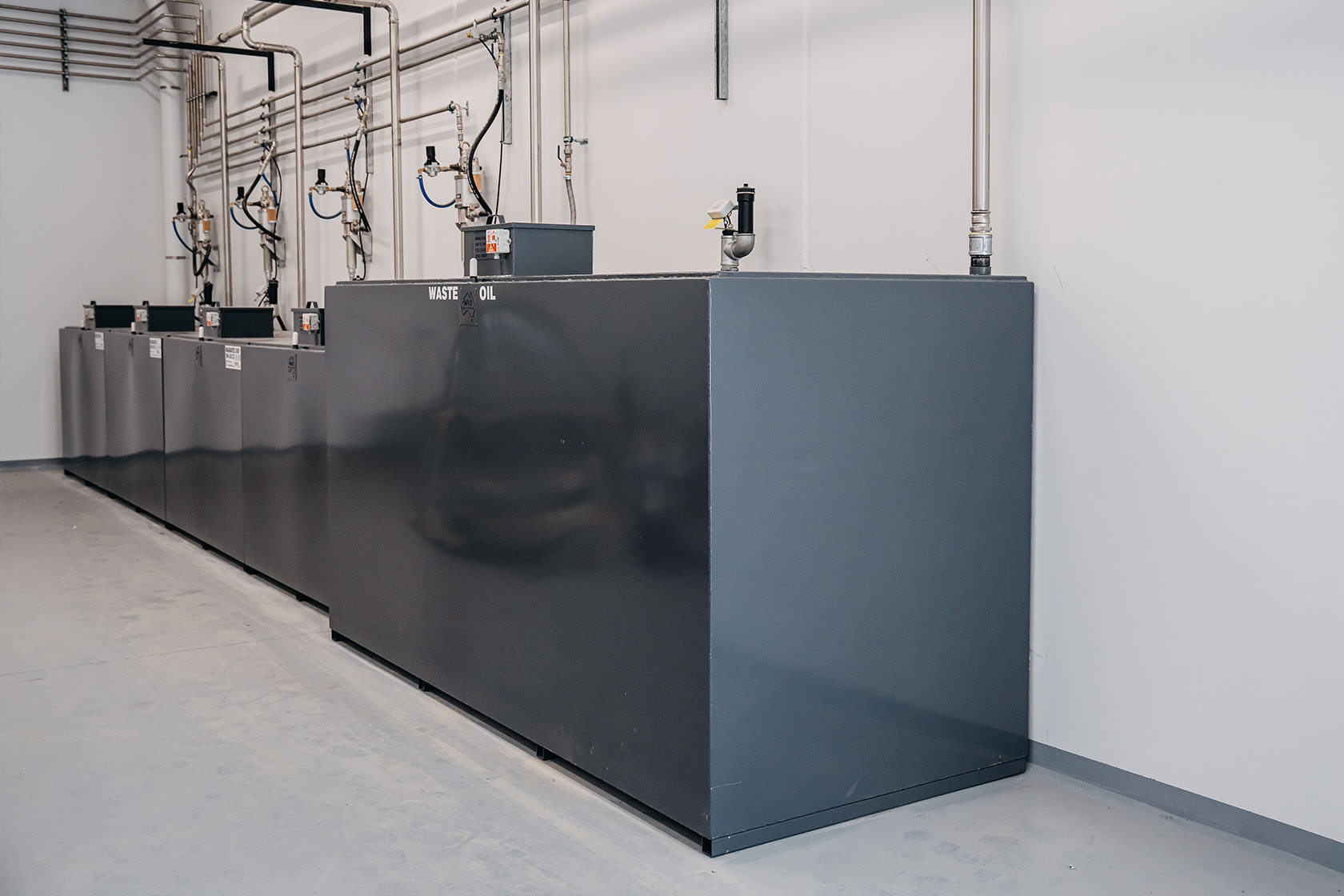

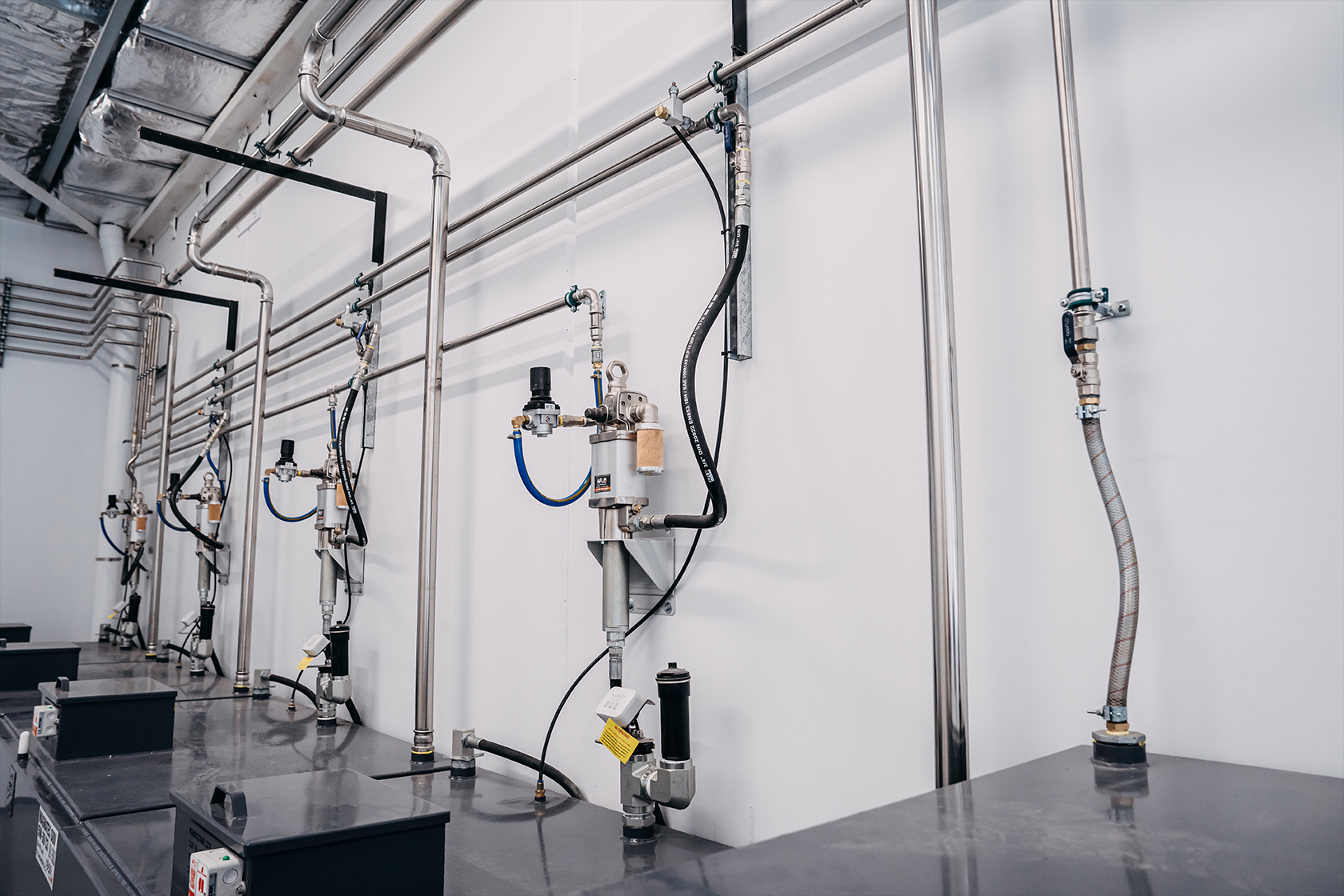

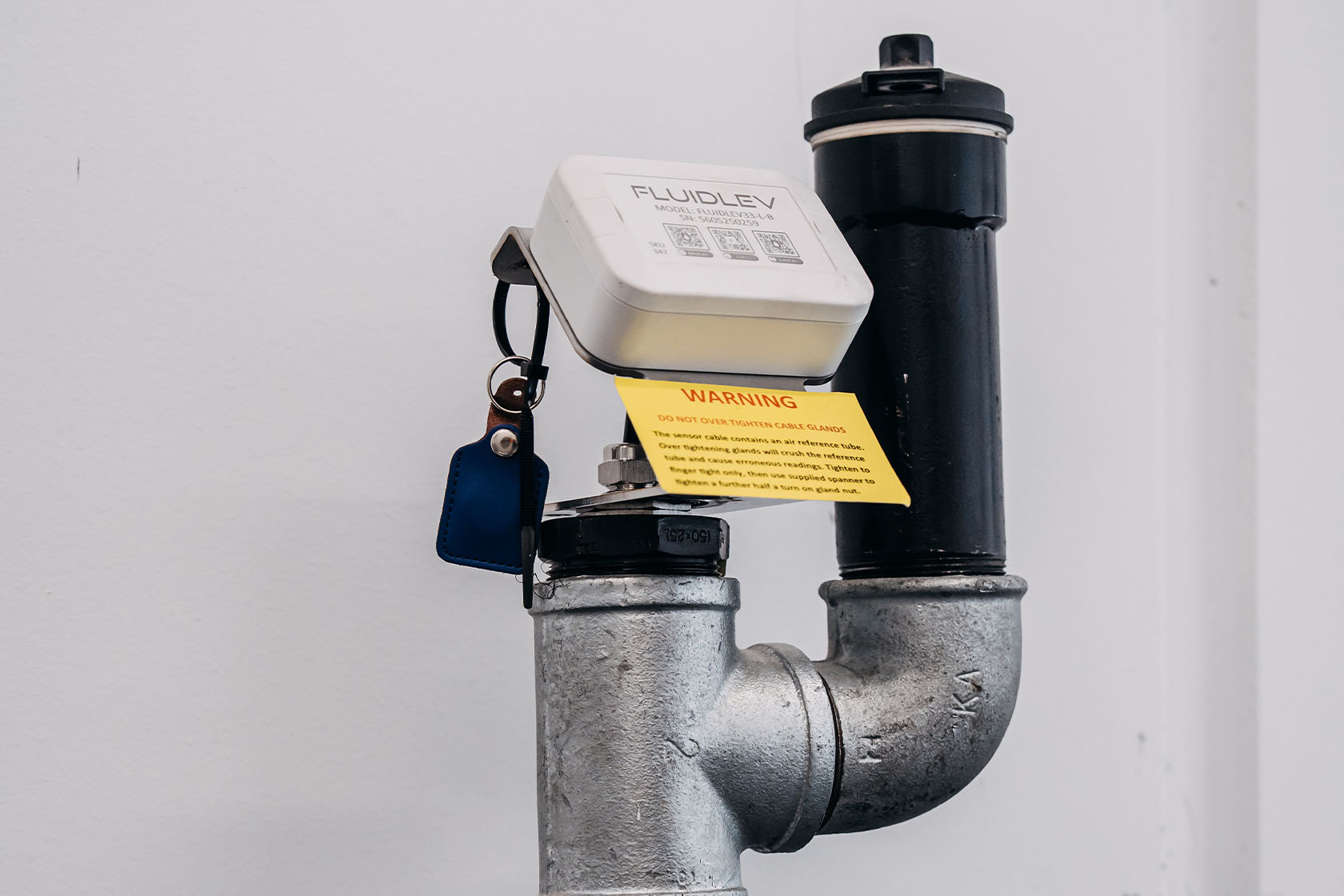

The project included the supply and installation of five self-bunded oil tanks – each tank equipped with RAASM 5:1 High-Flow Pneumatic Oil Pumps, level alarms, breathers, and Leveltrack level monitoring systems. These tanks are serviced via an external remote fill box, allowing both oil filling and waste oil removal.

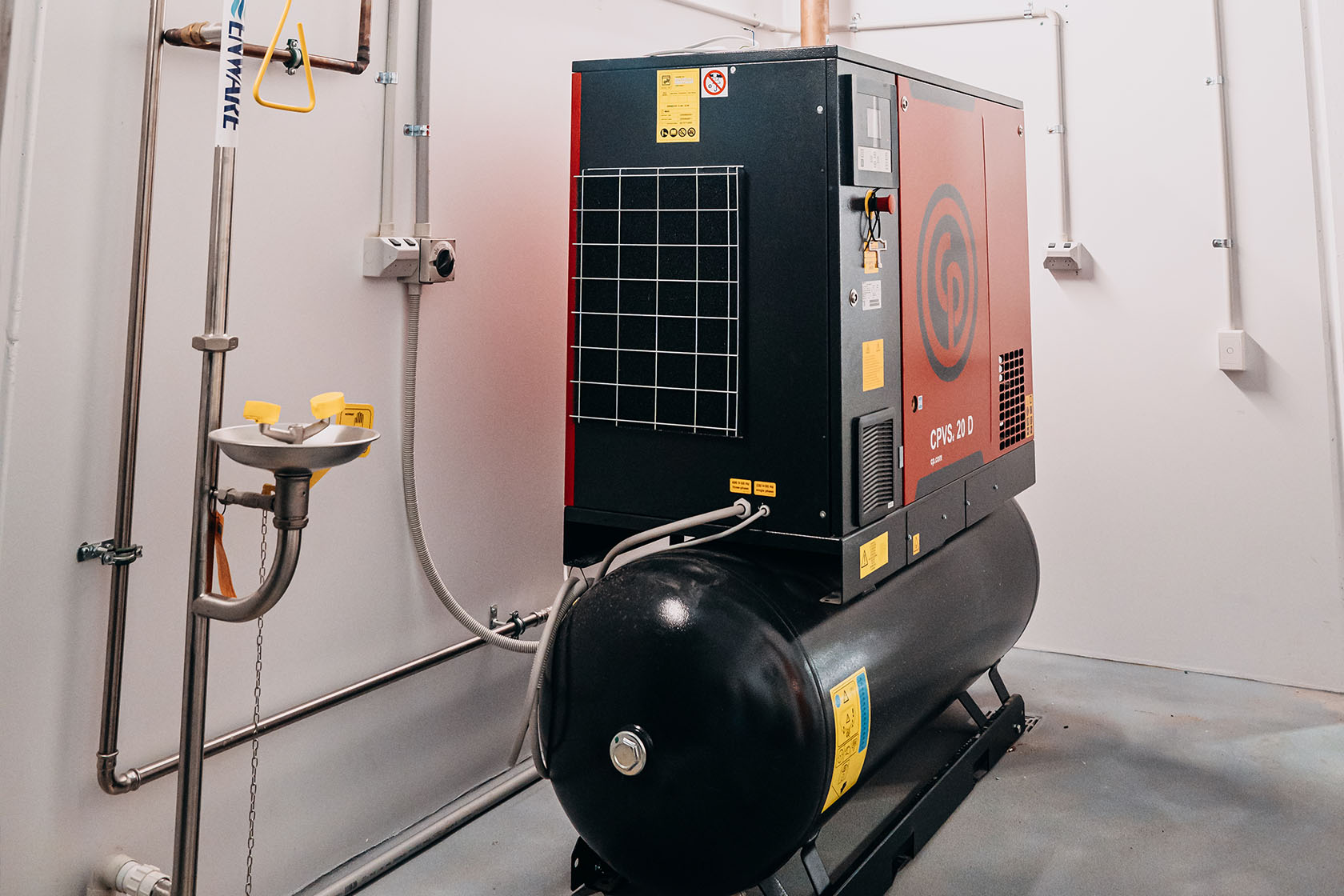

Supporting workshop operations is a 15 kW Chicago Pneumatic compressor package, incorporating an integrated refrigerated dryer, pre- and post-filters, a 500L receiver tank, and an oil–water separator.

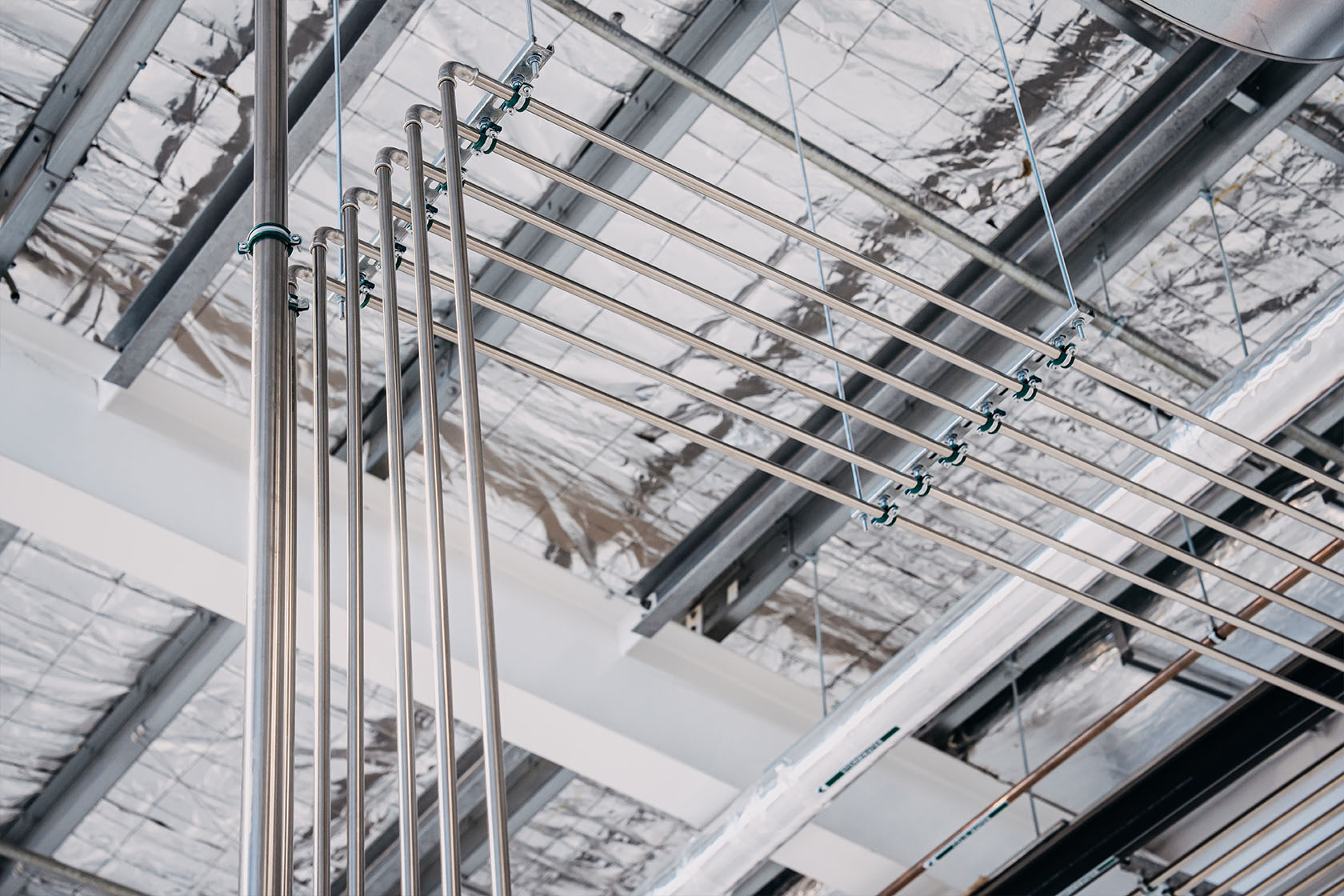

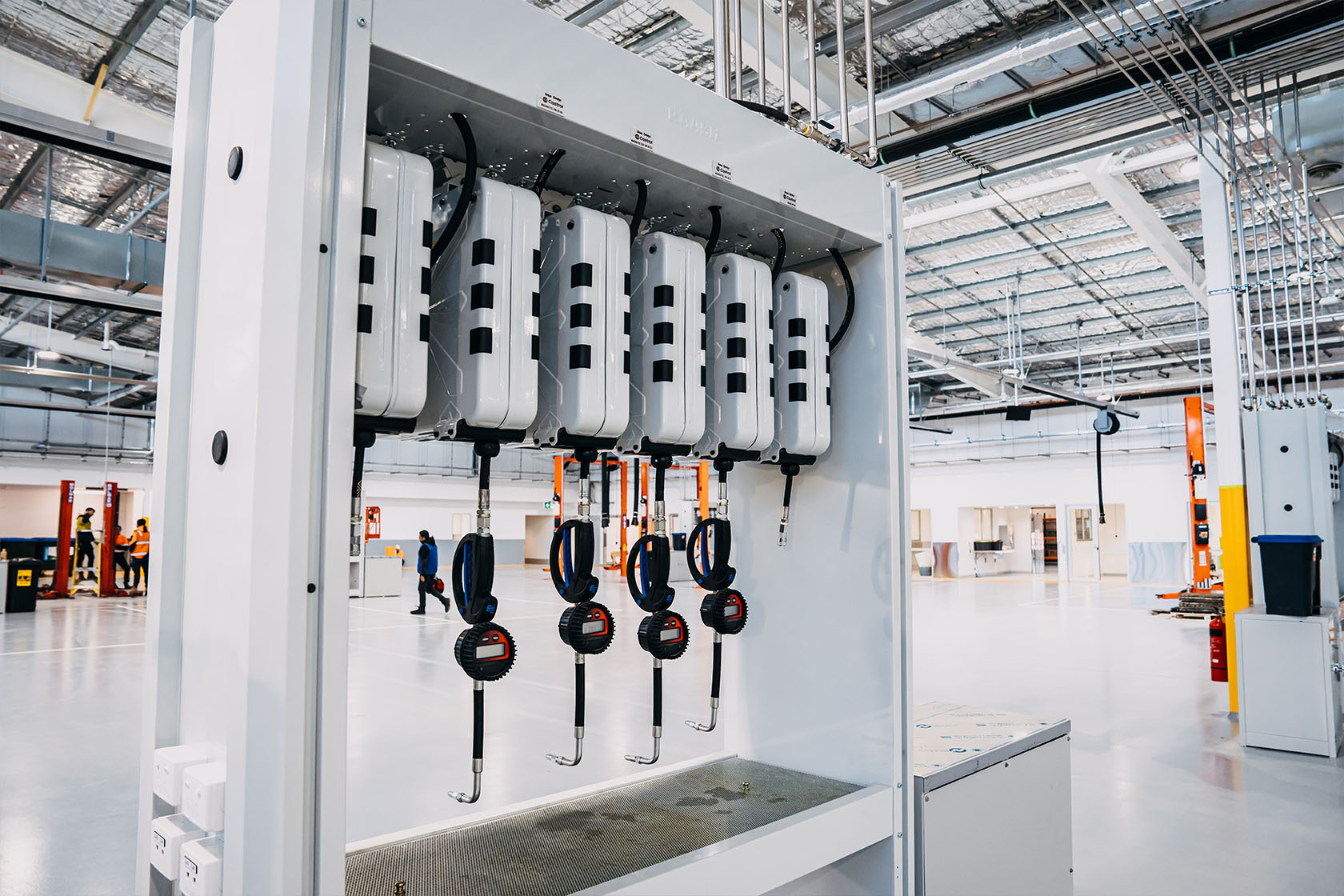

The A-FLO Projects Team designed and installed stainless steel oil, air, and water lines connecting the tanks and air compressor to 10 RAASM enclosed hose reel gantry stations. Across the workshop, 75 RAASM 440 Series hose reels with Badger digital metered guns were mounted within these gantries. Each station was paired with a custom workshop bench, finished with a stainless-steel worktop to provide durability and efficiency at point of use.

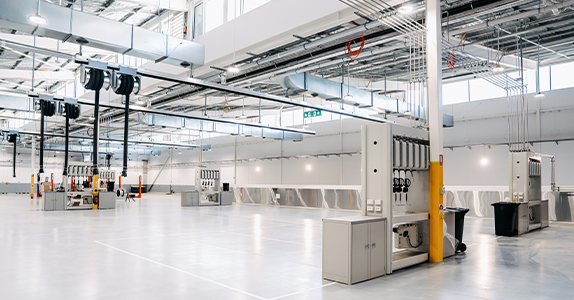

In addition, A-FLO Equipment supplied and installed 112 metres of Worky exhaust extraction system. The installation featured 14 sliding hose reels with exhaust nozzles, supported by a wireless remote-controlled fan system to ensure safe and efficient air quality management throughout the facility.
Products & Services Provided:
- Comprehensive bulk oil transfer system for new & waste oil tank room
- Complete workshop exhaust and piping system
- 10 RAASM enclosed hose gantry systems with workshop bench, fit with RAASM 440 Series hose reels
- Chicago Pneumatic Screw Air Compressor System
- Grand total of 1800m of pipework installed across the workshop
