Air Operated Oil Transfer Pumps

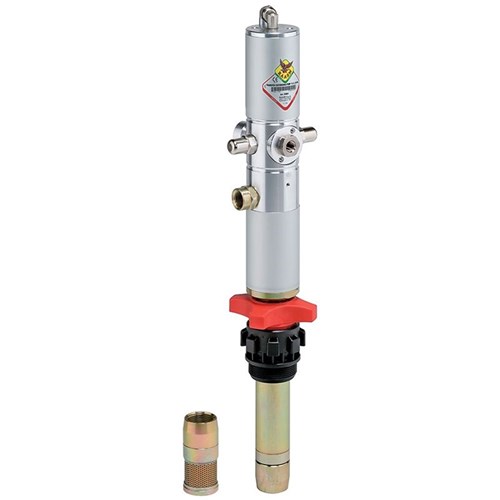

RAASM 1:1 Ratio Stub Pump 23L/min (0A32071)

Product Code: AF-RA-33071

Brand
RAASM
Increase value Decrease value
Description

RAASM 1:1 Ratio Oil Pumps Specifications:

The RAASM 1:1 Ratio Drum Pump is designed for transferring low viscosity liquids relatively short distances at low pressures. These Drum Pumps are ideal for mounting drums and servicing oil bars. For heavier gear oils and longer distances or for servicing hose reels, higher pressure pumps should be used.

What does a 1:1 Ratio mean?

The pumping ratio, as explained by the Petroleum Equipment Institute (PEI), is the area of the air piston compared to the area of the fluid piston in an air-powered pump. \n \nSo when we have a 1:1 ratio, it means that the amount of air-input pressure is equal to that of the fluid-output pressure. For example, if the pump has 100 PSI of air going in then, there will be 100 PSI of pressure pushing the fluid out.

  • Flow Rates: up to 23LPMs
  • Air Inlet: 1/4"" BSP(f)
  • Fluid Outlet: 3/4"" BSP(f)
  • Available in stub or drum lengths
  • Ideal for low viscosity transfer of fluids such as oil, waste oil, antifreeze & coolant

MODELS AVAILABLE RAASM 1:1 Ratio 205L Drum Pump (RA-33073) \nRAASM 1:1 Ratio Stub Pump (RA-33071) Click here to explore other products in our Air Operated Oil Transfer Pump range"

Features
  • Flow Rates: up to 23 LPM
  • Air Inlet: 1/4″ BSP(f)
  • Fluid Outlet: 3/4″ BSP(f)
  • Available in stub or drum lengths
  • Ideal for low viscosity transfer of fluids such as oil, waste oil, antifreeze & coolant
