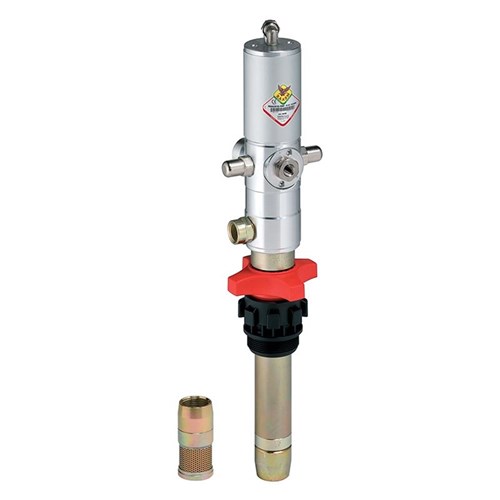

The RAASM 3:1 Ratio Oil Pumps are ideal for medium size workshops which may involve multiple hose reels with manual and metered guns
Pneumatic piston pump s. 600 for transferring oil and similar, R 3:1 - 14 l/min with NBR seals and extendable suction tube 1"
- Ratio: 3:1
- Flow Rate: up to 14LPM
- Air Inlet: 1/4" BSP(f)
- Fluid Outlet: 1/2" BSP(f)
- Compatible fluids: oils, lubricants and similar
- Suction tube upper body: aluminum
- Suction tube: carbon steel
- Air working pressure: 6 - 8 bar
- Average air consumption: 330 l/min
- Noise level: 81 dB
- max deliverable oil viscosity: SAE 130
- Bung adaptor: standard
- Suitable for drums or tanks: customisable 1"
- 10 year Warranty
Ideal for car, truck, and bus workshop applications
