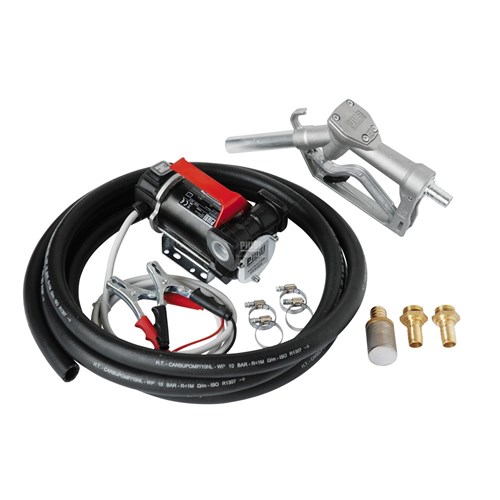

The ULTRAFLO 12V/24V Refuelling Pump Kits are built to handle the most difficult of applications due to their cast iron body.

• Vane pump with motor
• Built-in by-pass valve
• Noise Level: below 70dB
• Portable diesel transfer unit
• Self-priming electric vane pump run by a 12V or 24V DC electric motor.
• Cast iron body
• Fixed brush motor with permanent magnet stator
• Suction capacity: up to 2 meters
• Terminal board with switches and fuses to protect against overload
• 2M cables with clips for battery connection
• 4M hose (diameter 3/4"")
• Aluminium manual or automatic shut-off nozzle & bottom suction filter
• Flow Rate: up to 50LPM
• 12V or 24V DC operation
• 30 min duty cycle

MODELS AVAILABLE

• ULTRAFLO 12V Refuelling Pump Kit & Auto Nozzle (FP-22500C-A)
• ULTRAFLO 12V Refuelling Pump Kit (FP-22500C)
• ULTRAFLO 24V Refuelling Pump Kit & Auto Nozzle (FP-22600C-A)
• ULTRAFLO 24V Refuelling Pump Kit (FP-22600C)
