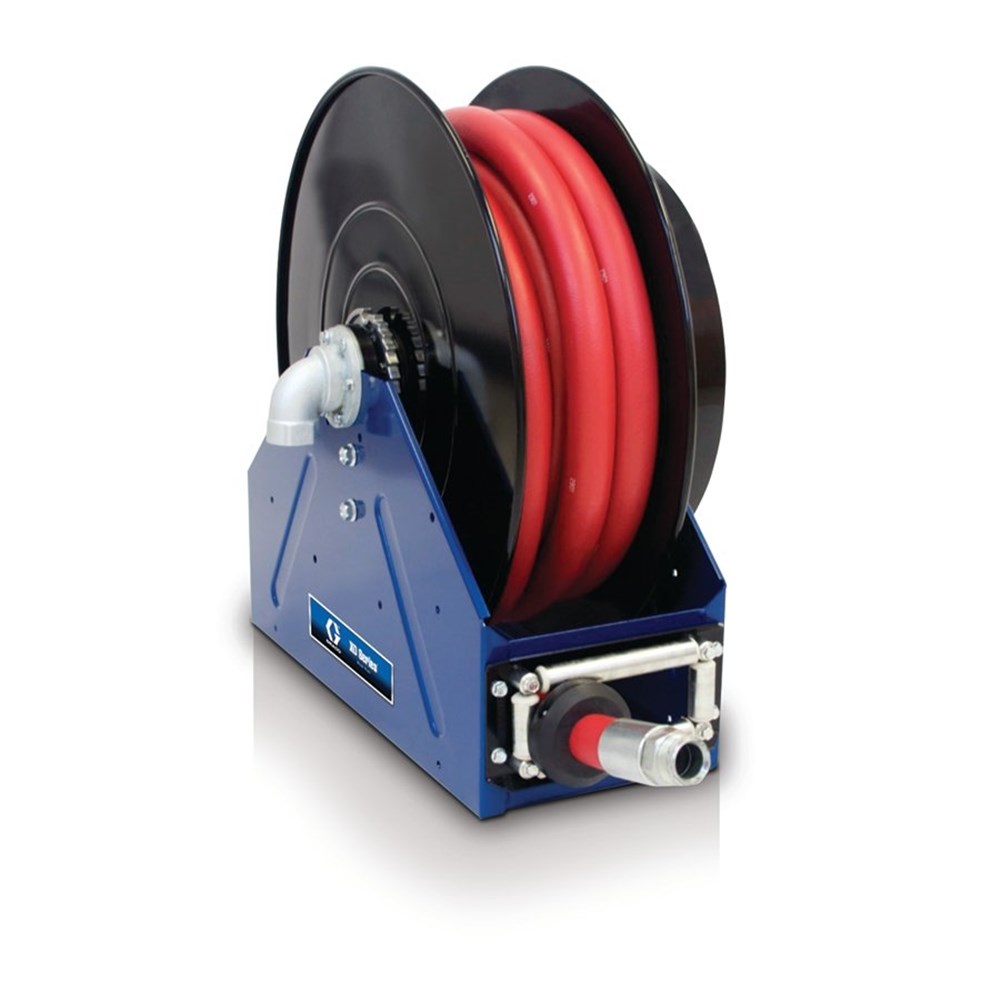

XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several colour options, thread types and hoses. Typical fluids handled include: Petroleum and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
Extensive Hose Offering Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Rugged and Durable Body Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
Meets Worldwide Needs Built standard with 90 elbow with NPT thread
Technical specifications
- Dry Weight (lb): 164
- Inlet Size (in): 1-1/2
- Inlet Size (mm): 38.1
- Maximum Working Pressure (psi): 150
- Outlet Size (in): 1-1/2
- Outlet Size (mm): 38.1
- Overall Height (in) : 30.13
- Overall Height (mm): 765
- Overall Length (in): 29.4
- Overall Length (mm): 747
- Overall Width (in): 18.24
- Overall Width (mm): 463
- Series: 50
- Frame Type: Box Frame
- Reel Thread Type: NPT
- Recommended Fluid Type: Diesel Fuel
- Hose Reel Type: Hose with Reel - 15m x 1 "
