Diesel Hose Reels

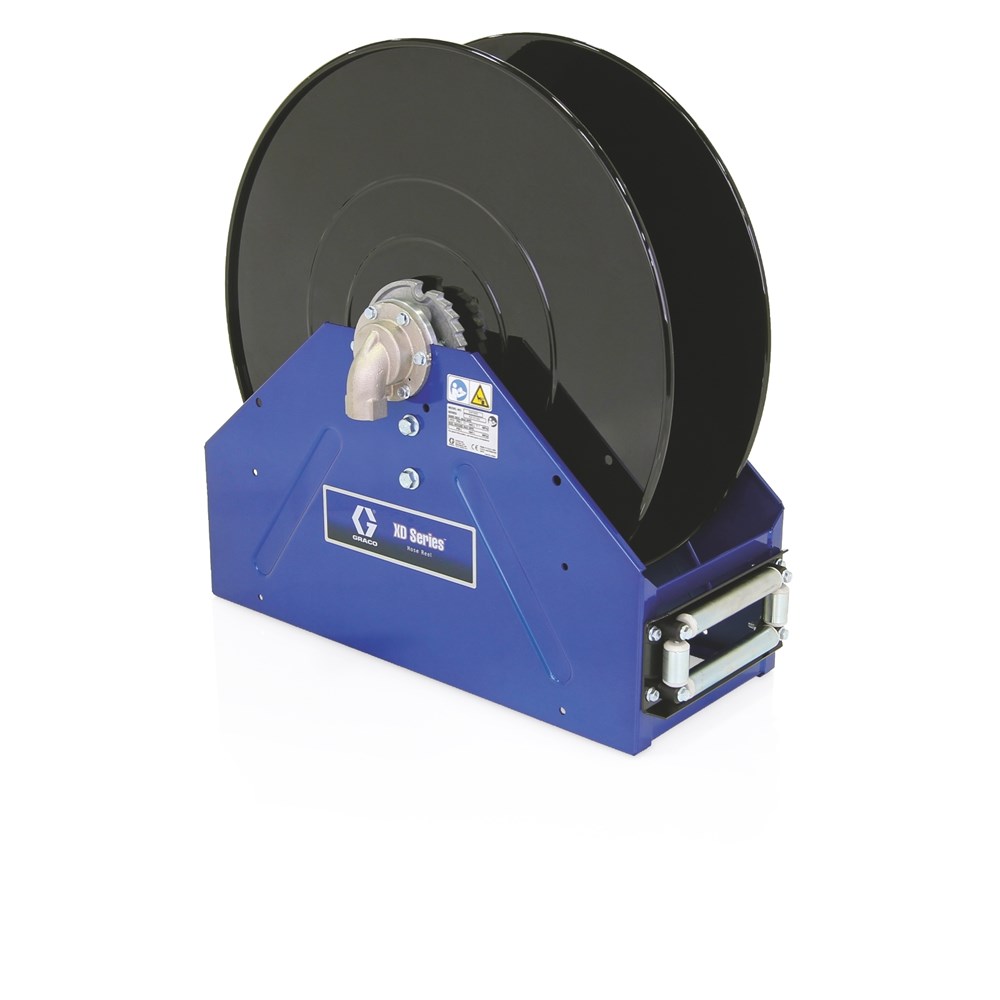

GRACO XD50 Series Reel - Bare (Blue)

Product Code: AF-G-24P467

Brand
Graco
Increase value Decrease value
Description

XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several colour options, thread types and hoses. Typical fluids handled include: Petroleum and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Extensive Hose Offering Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications

Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop

Rugged and Durable Body Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

Meets Worldwide Needs Built standard with 90 elbow with NPT thread

Technical specifications

Dry Weight (lb): 162

Inlet Size (in): 1-1/2

Inlet Size (mm): 38.1

Maximum Working Pressure (psi): 600

Outlet Size (in): 1-1/2

Outlet Size (mm): 38.1

Overall Height (in) : 30.13

Overall Height (mm): 765

Overall Length (in): 29.4

Overall Length (mm): 747

Overall Width (in): 18.24

Overall Width (mm): 463

Series: 50

Frame Type: Box Frame

Reel Thread Type: NPT

Recommended Fluid Type: Diesel Fuel

Hose Reel Type: Bare Reel
