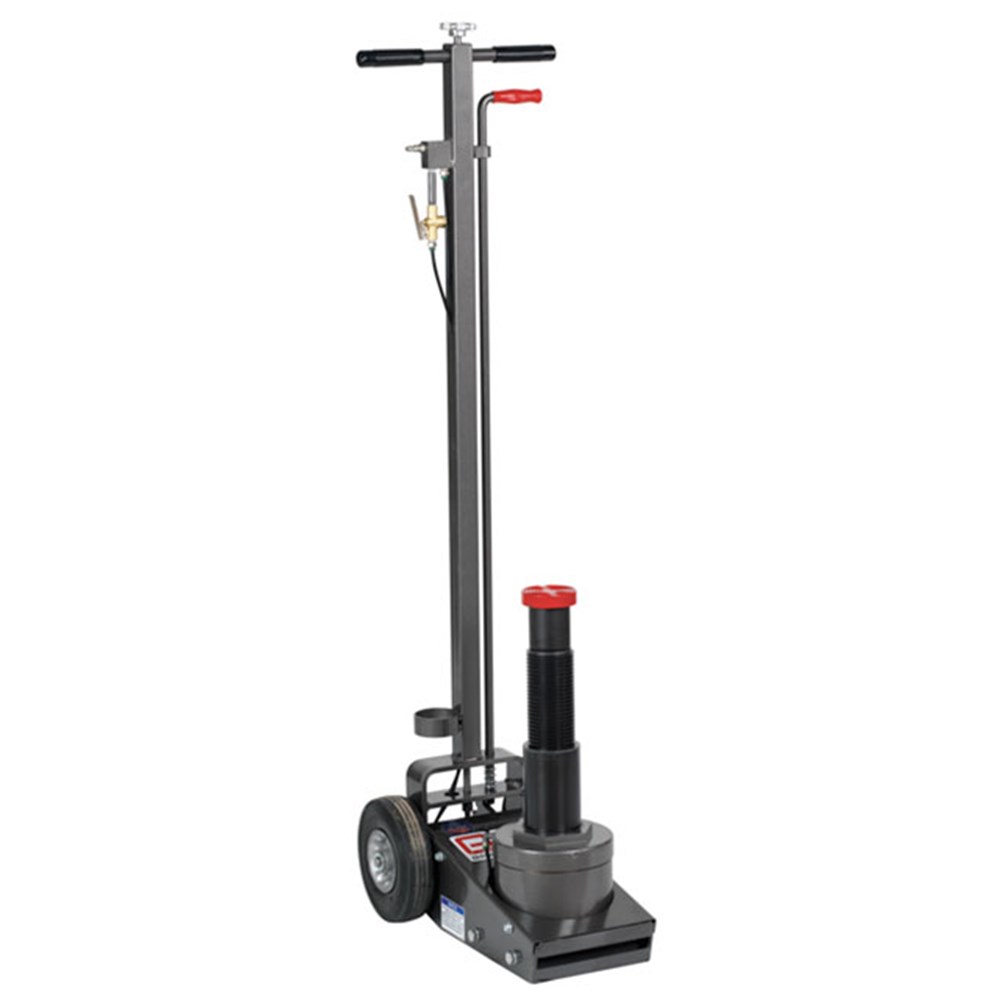

GRAYS Air Hydraulic Jacks are ideal for road service works due to their field-ready design. It has a Unique QuickLift feature (internal design raises the ram to the load at a quicker rate of speed).
- Unique QuickLift feature (internal design raises the ram to the load at a quicker rate of speed)
- Low starting height of 8"" allows for easy positioning & spotting underneath low-profile vehicles
- Air ram retract utilises shop air to reset the ram back to a minimum starting height
- Field ready design makes it ideal for road service work
FEATURES
- Black Hard Coating protects ram from rust and corrosion
- Acme threaded screw adjustment for flexible start height
- Modular design for easy repair
- Air retract ram for ease of use
- Long handle design for hard-to-engage vehicles
- Large rubber wheels for easy movement
SPECIFICATIONS
- Maximum Capacity: 70,000 lbs / 31,751.47 kg
- Air Pressure: 110-200 PSI / 7.6-13.8 Bar
- Start Height: 9 / 23.50 cm
- Start Height w/Adapter: 11 7/8 " / 30.16 cm
- Maximum Lift Height: 22 / 55.88 cm
- Screw Adjustment: 5 / 12.7 cm
- Stroke: 5 1/8 / 13.02 cm
- Length (Handle Horizontal): 71 / 180.34 cm
- Overall Height (Handle Vertical): 58 / 148.59 cm
- Width at Wheels: 14 / 36.20 cm
