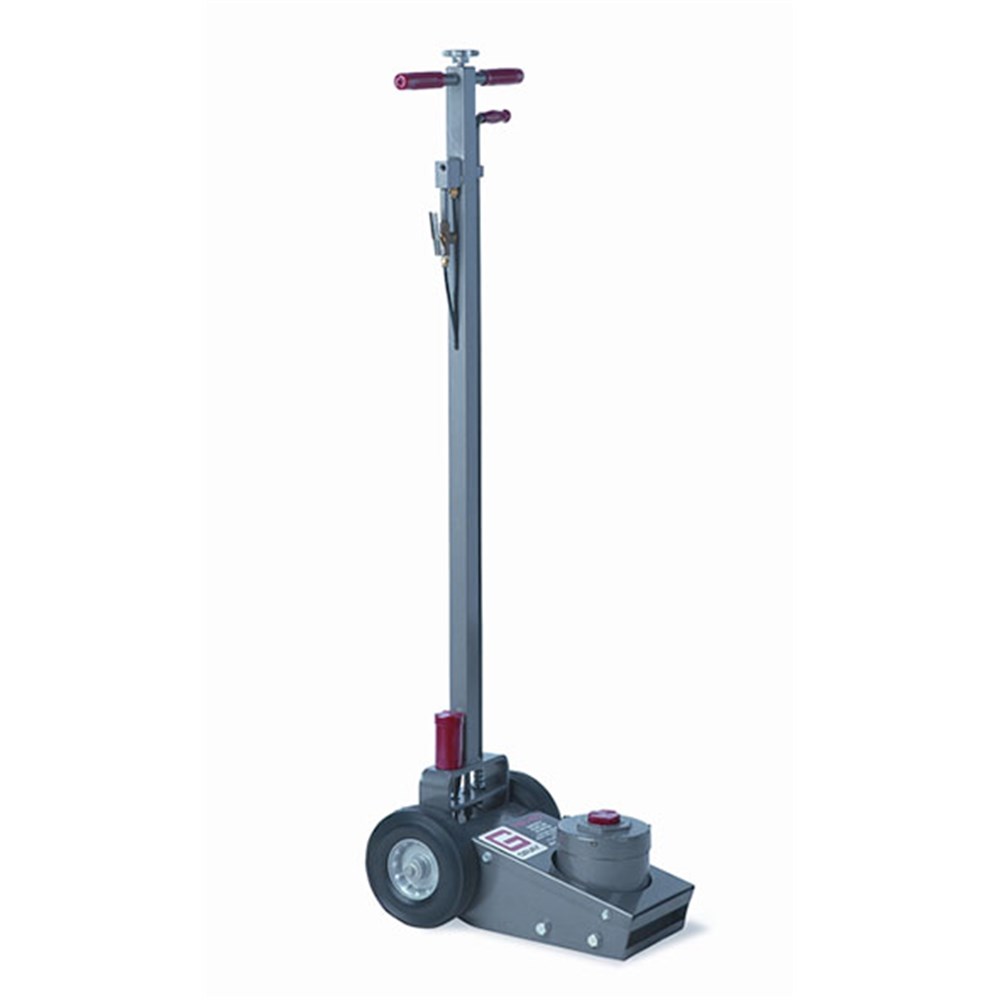

GRAYS Air Hydraulic Jacks are ideal for road service works due to their field-ready design. It has a Unique QuickLift feature (internal design raises the ram to the load at a quicker rate of speed).

• Unique QuickLift feature (internal design raises the ram to the load at a quicker rate of speed)
• Low starting height of 8"" allows for easy positioning & spotting underneath low-profile vehicles
• Air ram retract utilises shop air to reset the ram back to a minimum starting height
• Field ready design makes it ideal for road service work

FEATURES

• Black Hard Coating protects ram from rust and corrosion
• Acme threaded screw adjustment for flexible start height
• Modular design for easy repair
• Air retract ram for ease of use
• Long handle design for hard-to-engage vehicles
• Large rubber wheels for easy movement

SPECIFICATIONS

• Maximum Capacity: 50,000 lbs / 22,679.62 kg
• Minimum Start Height: 8" / 20.32 cm
• Maximum Lift Height: 21" / 53.34 cm
• Power: Air/Hydraulic
• Required Air Pressure: 90-200 PSI / 6.2-13.8 Bar
• Stroke: 5 1/8 / 13.02 cm
• Extension Screw Adjustment: 4 7/8 / 12.38 cm
• Frame Width: 12 / 30.48 cm
• Frame Length: 20 / 50.80 cm
• Wheel Diameter: 8 / 20.32 cm
• Handle Length: 53 / 134.62 cm
