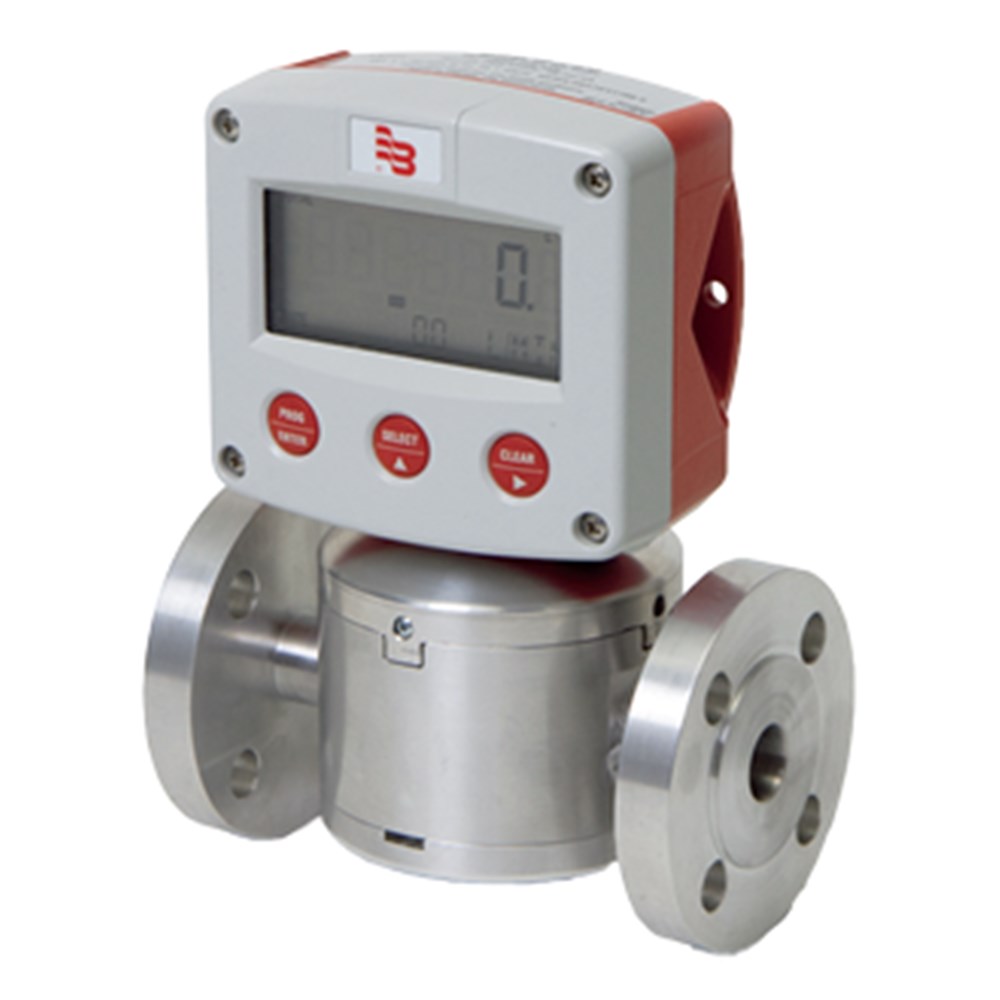

Flow rate Indicator / Totalizer

Flow measurement where a local flow rate indication and totalizer function is required without signal re-transmission.

The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40 C up to +80 C (-40 F up to 176 F).

Features

• Displays total and flow rate simultaneously and additional accumulated total.
• Large digit selection for flow rate or total.
• Flow rate: seven 17mm (0.67") or 8mm (0.31") digits.
• Total - resettable: seven 17mm (0.67") digits.
• Accumulated total - not resettable: eleven 8mm (0.31") digits.
• Selectable on-screen engineering units for total: ml, L, m , GAL, USGAL, kg, lb, bbl or no unit.
• LED backlight with adjustable intensity.
• Easy configuration with clear alphanumerical display.
  Ambient temperature: -40 C to +80 C (-40 F to 176 F).
