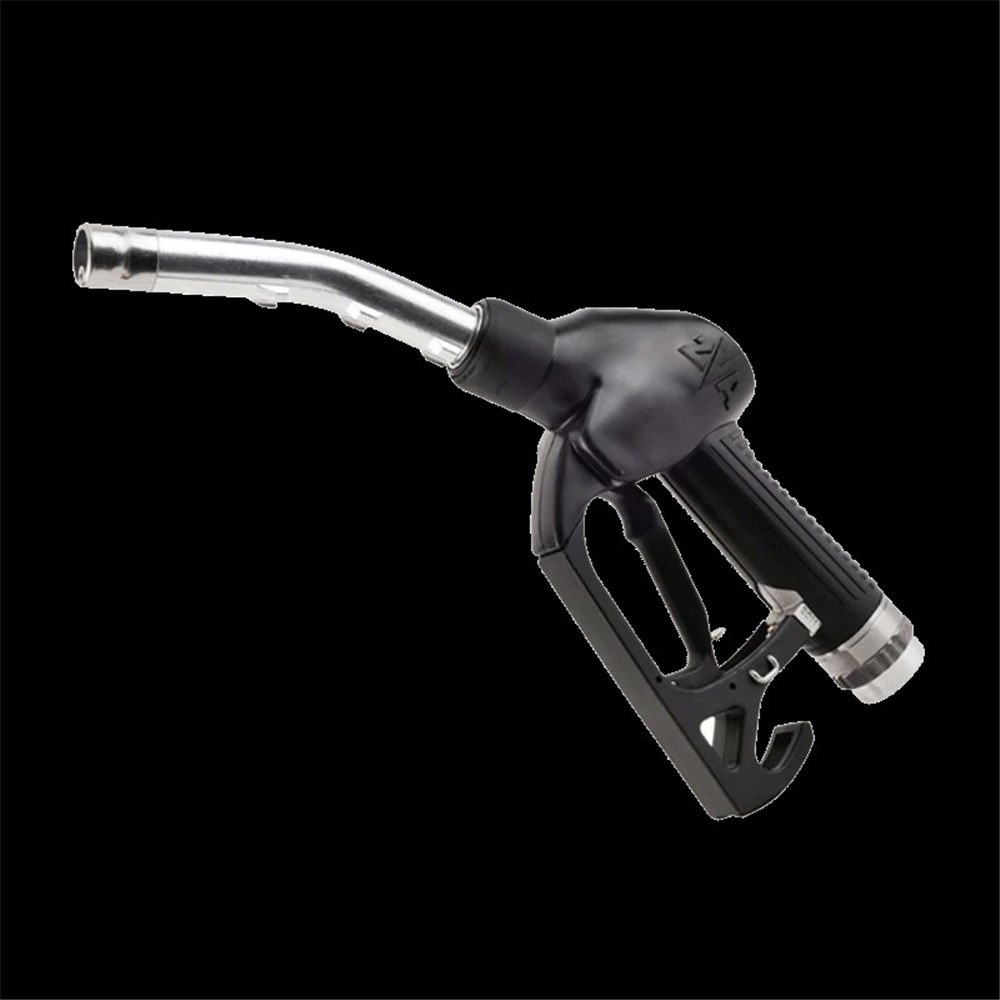

ZVA Diesel Slimline Automatic Nozzle

The ZVA Slimline 2 Automatic Nozzle is a high quality, heavy duty automatic shut off diesel nozzle approved for refuelling in resale pumping applications as well as flammable environments.

Designed to automatically shut off when the vehicle tank is full, this quality, made in Germany, fuel nozzle prevents an overspill situation from occurring. The ZVA Slimline 2 also benefits from a two position stay open latch and is supplied as standard with a No 4 trigger guard for safety and durability.

ZVA nozzles are a widely recognised brand of forecourt (retail) style nozzle, known throughout the world for their sturdy construction and ease of handling.

• Working pressure 0,5 up to 3,5 bar.
• Flow rate up to 80 l/min.
• Inlet: 1" BSP
• Outlet: 19mm
• Temperature range -20 C to +55 C.Integral swivel joint for ease of use. 1" BSPF.

• NMI/NSC certified for resalable use.

• Pump use only.

• Suitable for diesel

  Not suitable for viscous oils.

STANDARD SPECIFICATION :

• Venturi type automatic shut-off with safety cut-out attitude valve.
• Built-in check valve. 2-speed lever latch with removable latch pin EB 280.
• Body and hose inlet of aluminium.
• Spout of aluminium, tip of stainless steel.
• Easy rotating swivel, swivel nut of stainless steel.
• Lip seal, O-rings + diaphragm of polyurethane and NBR.
• Guard and lever of composite plastic.
• Inner parts of brass, stainless steel, POM and PEEK.
• Scuff guard and comfigrip of PVC.
• Product Sleeve EK 043 of polyurethane.

Meets EN 13012. Fulfils the requirements of safety and Weights and Measures. ATEX ( ` II 1G ) certificate no. : TPS 19 ATEX 103415 0002 U. T V approval P-T 7-01930.\
