Industrial Hose Reels

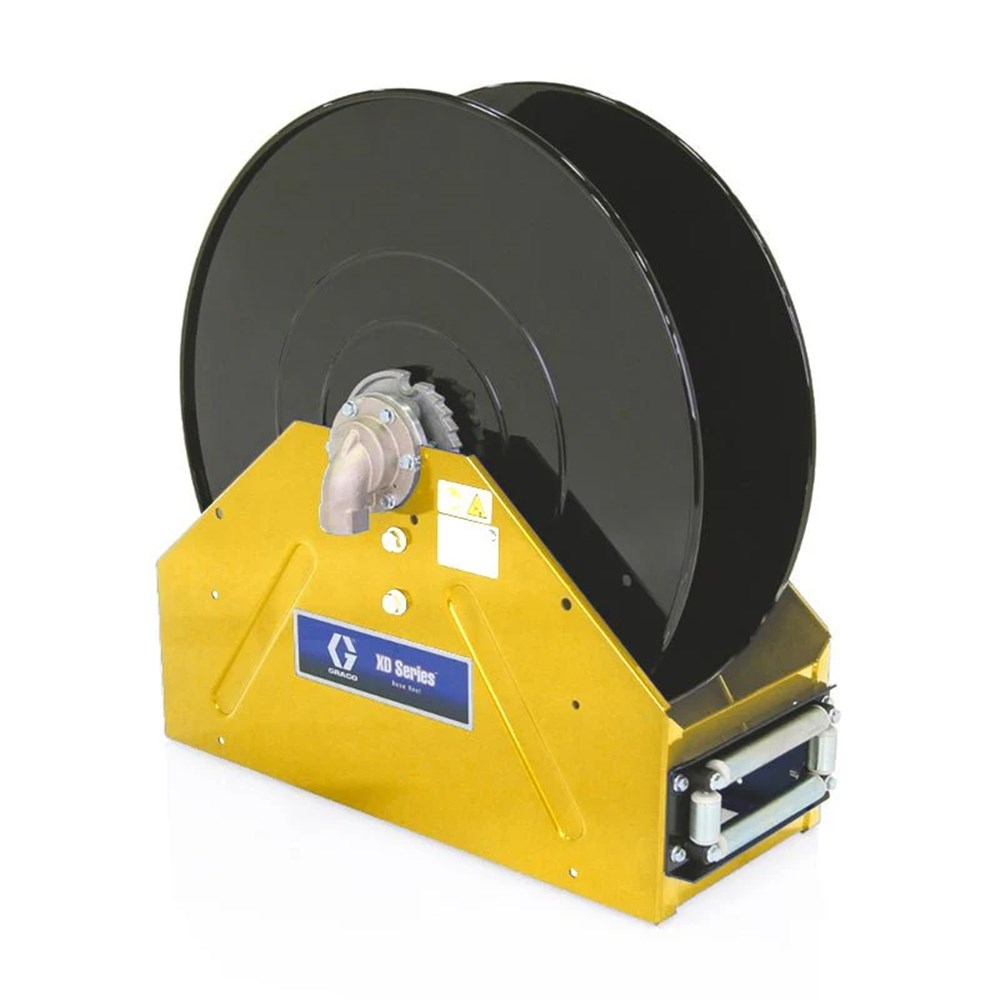

GRACO XD50 Bare Hose Reel - Yellow

Product Code: AF-G-24P459

Brand
Graco
Increase value Decrease value
Description

XD50 , Oil, 25 mm (1 in) Inlet, Bare Reel (25 mm X 23 m (1 in. X 75 ft.) Capacity), NPT, Yellow

Graco s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several colour options, thread types and hoses. Typical fluids handled include: Petroleum and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Extensive Hose Offering Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs Built standard with 90 elbow with NPT threads

Operational Specifications

Height: 94.488 CM
Length: 70.104 CM
Width: 91.44 CM
Shipping Weight: 92.53 KG

Technical specifications
Dry Weight (lb): 152
Hose Inside Diameter (mm): 25.4
Inlet Size (in): 1
Inlet Size (mm): 25.4
Maximum Working Pressure (psi): 2000
Outlet Size (in): 1
Outlet Size (mm): 25.4
Overall Height (in): 30.13
Overall Height (mm): 765
Overall Length (in): 29.4
Overall Length (mm): 747
Overall Width (in): 17.47
Overall Width (mm): 444
Series: 50
Frame Type: Box Frame
Reel Thread Type: NPT
Recommended Fluid Type: Oil
Hose Reel Type: Bare Reel
Model: XD
Hose not included
