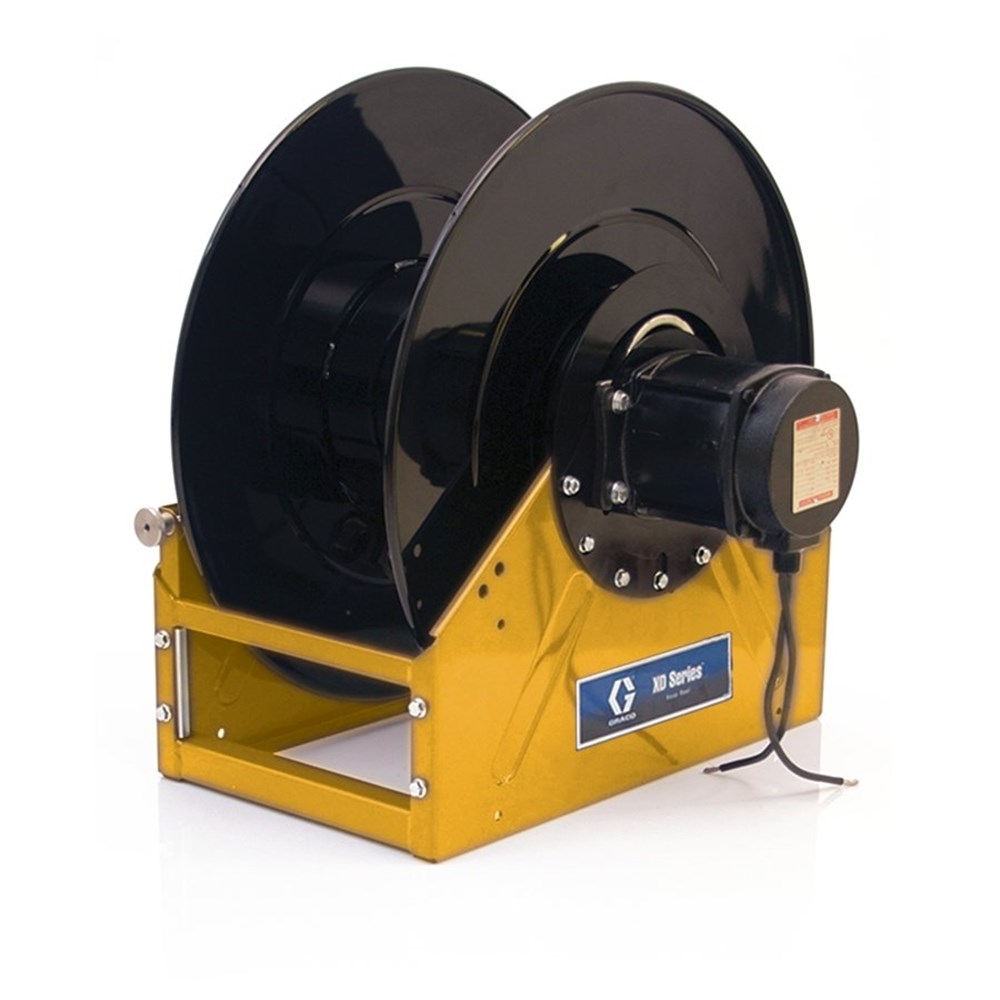

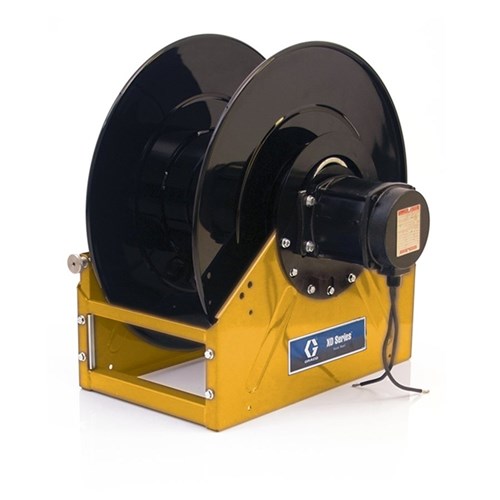

XD70 , Air/Water/Diesel Fuel, 25 mm (1 in.) Inlet/Outlet, Bare Reel (25 mm X 30 m (1 in. X 100 ft.) Capacity), NPT, Motorless Reel, Yellow

FEATURES

• Safe, Reliable Direct Drive and Gear Motors Drive unit is clean and lubricated for life. No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators

• Easy System Integration Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation

• Heavy-Duty Welded Spool Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation

• Rugged and Durable Body Heavy-duty one piece welded frame is engineered to flex under extreme operating conditions and is stronger than bolted frames that can loosen with use. Individually painted and powder coated components have superior corrosion resistance over assembled and painted products

Operational Specifications

Country of Origin: US
Unit of Measure: EA
Height: 97.536 CM
Length: 70.104 CM
Width: 69.85 CM
Shipping Weight 53.52 KG

Technical specifications
Inlet Size (in): 1
Maximum Temperature ( C)" 82
Maximum Working Pressure (psi): 600
Minimum Temperature ( C): -40
Outlet Size (in): 1
Series: 70
Outlet Thread Gender: Female
Frame Type: Box Frame
Recommended Fluid Type: Air, Water, Diesel Fuel
Inlet Thread Gender: Female
Reel Thread Type: NPT
Hose Reel Type: Bare Reel
