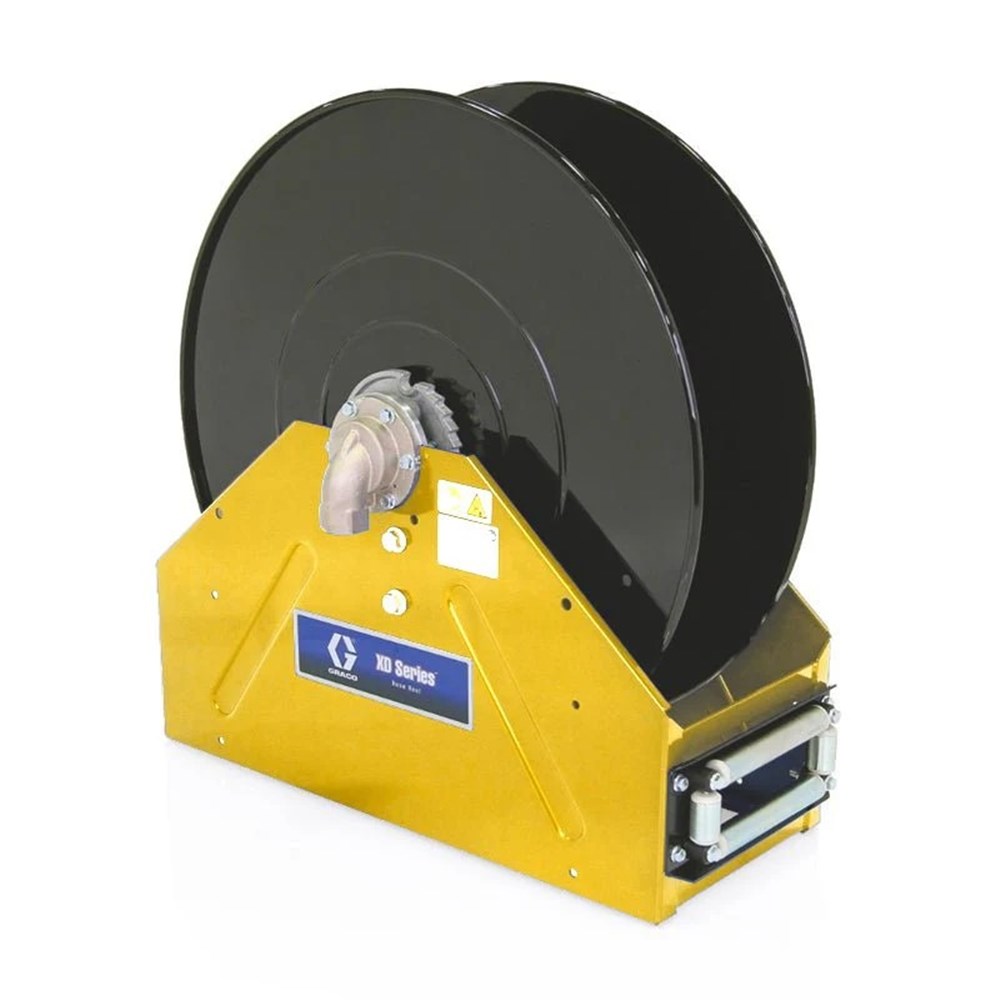

XD50 , Air/Water/Diesel Fuel, 25 mm (1 in) Inlet, Bare Reel (25 mm X 30 m (1 in. X 100 ft.) Capacity), NPT, Yellow
Graco s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several colour options, thread types and hoses. Typical fluids handled include: Petroleum and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Extensive Hose Offering Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Meets Worldwide Needs Built standard with 90 elbow with NPT threads
Operational Specifications
Height: 97.536 CM
Length: 70.104 CM
Width: 91.44 CM
Volume: .625 M3
Shipping Weight: 91.63 KG
Technical specifications
Dry Weight (lb): 162
Hose Inside Diameter (mm): 25.4
Inlet Size (in): 1
Inlet Size (mm): 25.4
Maximum Working Pressure (psi): 600
Outlet Size (in): 1
Outlet Size (mm): 25.4
Overall Height (in): 30.13
Overall Height (mm): 765
Overall Length (in): 29.4
Overall Length (mm): 747
Overall Width (in): 17.47
Overall Width (mm): 444
Series: 50
Frame Type: Box Frame
Reel Thread Type: NPT
Recommended Fluid Type: Air, Water, Diesel Fuel
Hose Reel Type: Bare Reel
Model: XD
Does not include hose
