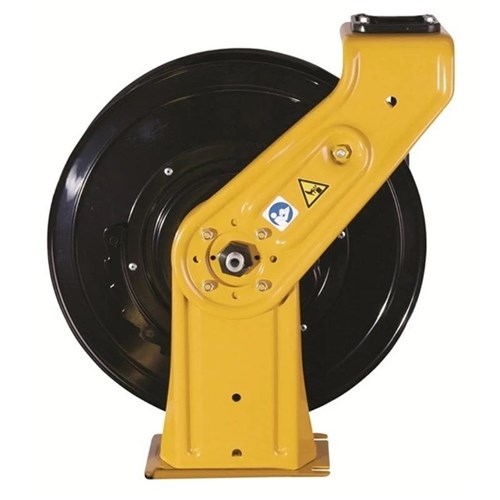

XD30 , Pressure Wash, 1/2 in. (13 mm) Inlet, 3/8 in. X 75 ft. (10 mm X 23 m) Hose, NPT, Truck/Bench Mount, Yellow
Graco s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Technical specifications
- Dry Weight (lb): 98
- Hose Inside Diameter (mm): 9.525
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Maximum Working Pressure (psi): 4000
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Overall Height (in): 23.10
- Overall Height (mm): 588
- Overall Length (in): 22.12
- Overall Length (mm): 561.73
- Overall Width (in): 9
- Overall Width (mm): 229
- Series: 30
- Frame Type: Dual Pedestal
- Reel Thread Type: NPT
- Recommended Fluid Type: Pressure Wash
- Hose Reel Type: Reel with Hose
- Model: XD
- includes hose: Yes
