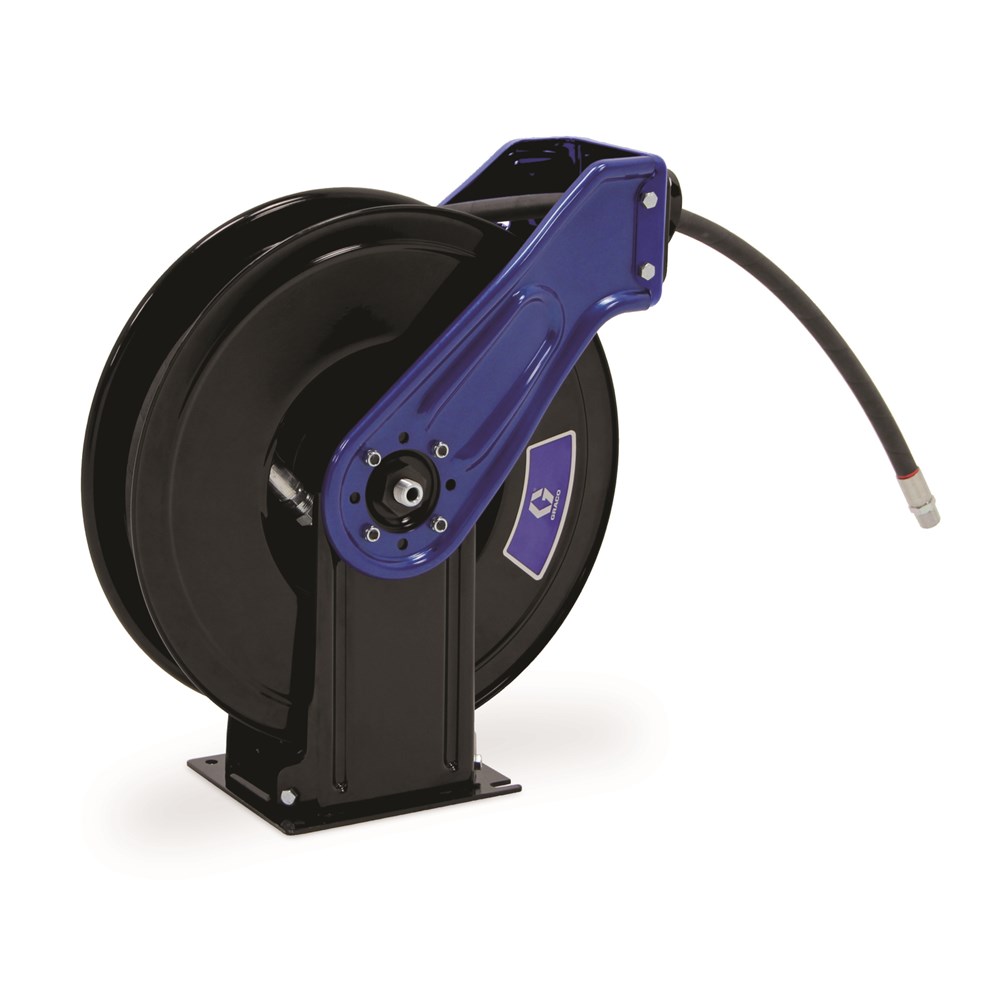

XDX 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
Graco s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
SPECIFICATIONS
- Hose Inside Diameter (mm): 12.7
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Maximum Temperature ( C): 87
- Maximum Temperature ( F): 190
- Maximum Working Pressure (psi): 2000
- Minimum Temperature ( C): -28
- Minimum Temperature ( F): -20
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Overall Height (in): 25.2
- Overall Height (mm): 640
- Overall Length (in): 23.4
- Overall Length (mm): 594
- Overall Width (in): 7.5
- Overall Width (mm): 191
- Series: 20
- Frame Type: Dual Pedestal
- Reel Thread Type: NPT
- Inlet Thread Gender: Male
- Outlet Thread Gender: Male
- Recommended Fluid Type: Oil
- Hose Reel Type: Reel with Hose
- includes hose: Yes
