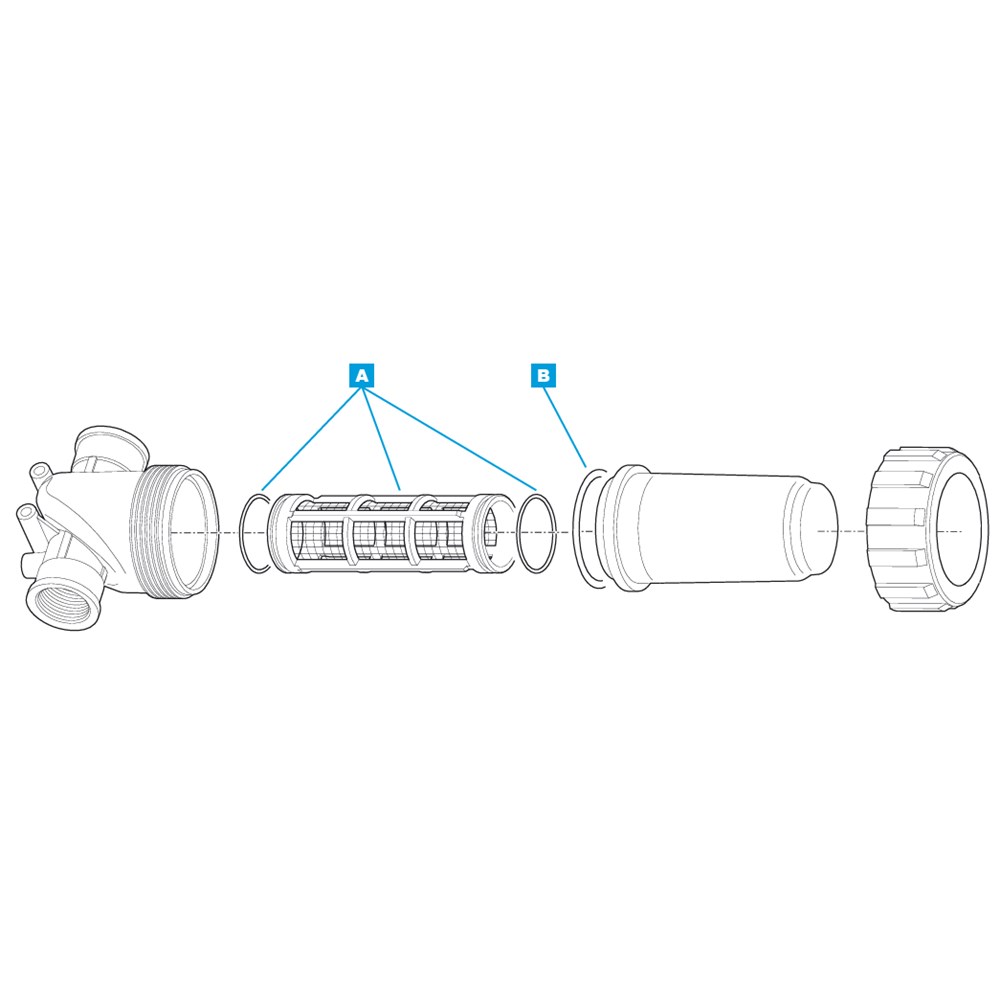

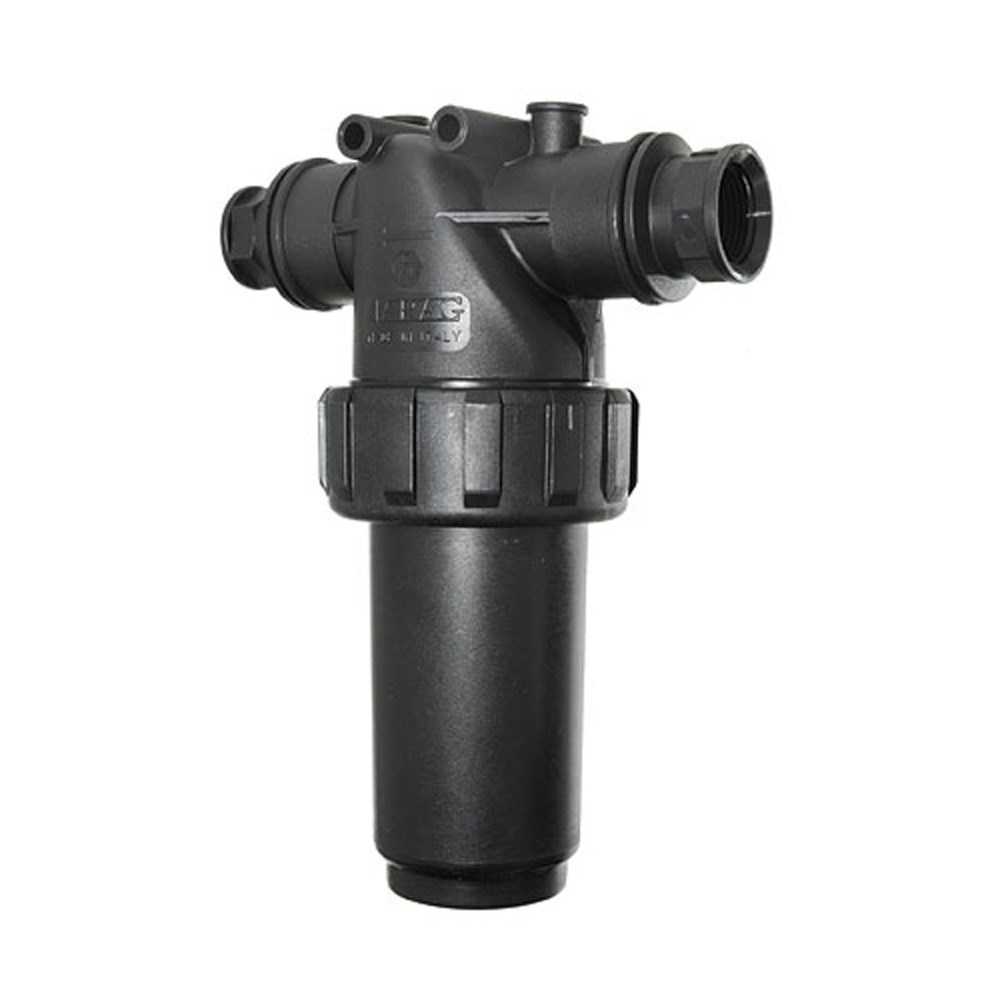

The polypropylene strainer housing is resistant to most fluids used in a modern car workshop and equipped with a 32 mesh stainless steel filter cartridge. (Equivalent to ~0.6 mm perforations).
The filtration is sufficient to prevent harmful particles from entering the pump. The washable strainer should be cleaned regularly to remove any contamination.
The two BSP(f) threads on the top of the strainer can be used to attach vacuum gauges. The strainer is delivered without a hole down to the strainer chamber.
When attaching a vacuum gauge a 3 mm hole must be drilled in the bottom of the BSP port. Attaching two vacuum gauges will indicate the pressure drop over the cartridge.
- 32 mesh strainer
- 1 " BSP connections
- Limited stock available
Maximum working pressure: 20 bar
Maximum vacuum: -1 bar (100% vacuum)
Maximum working temperature: +80 C (temporarily 100 C)
Weight (approx): 1 kg
Effective strainer area: 115 cm2

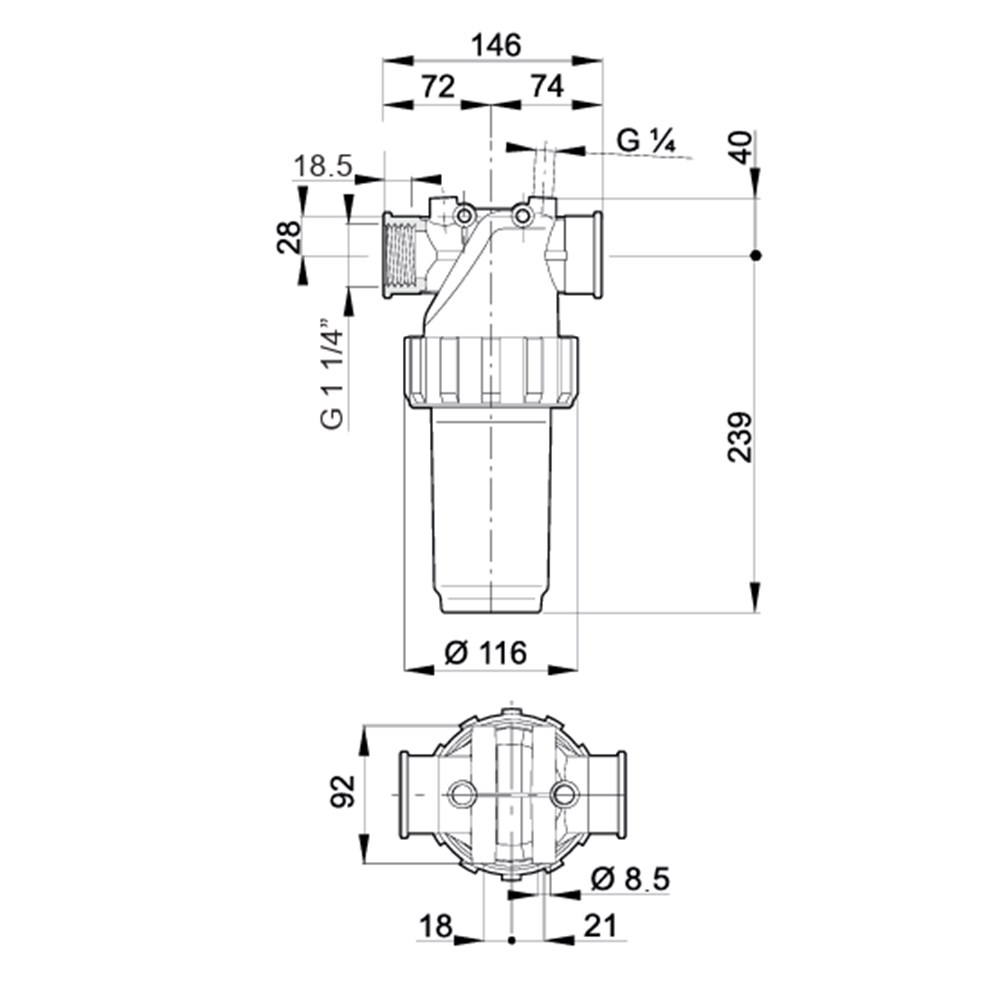

Connection thread: G 1 1/4" (f)
