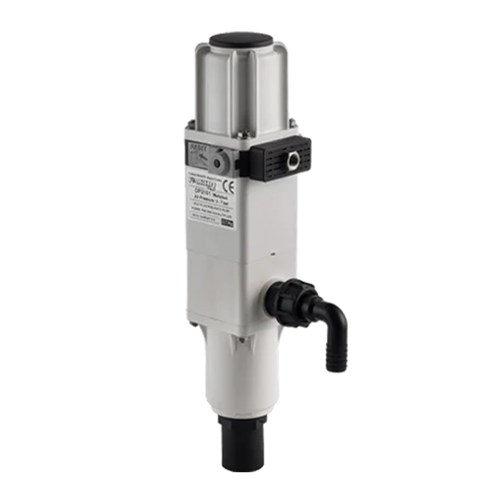

MULTIFLUID PNEUMATIC PUMP

Particularly suitable for the distribution of low viscosity fluids such as oil, diesel, urea (AdBlue/AUS32), antifreeze and windshield liquid, but also aqueous solutions with detergents or disinfectants.

They are not suitable for distributing petrol, solvents, flammable liquids or particularly aggressive or corrosive fluids.

The high flow performance allows the transfer of large volumes of fluid at a short/medium distance.

SPECIFICATIONS

• Compression ratio: 2:1

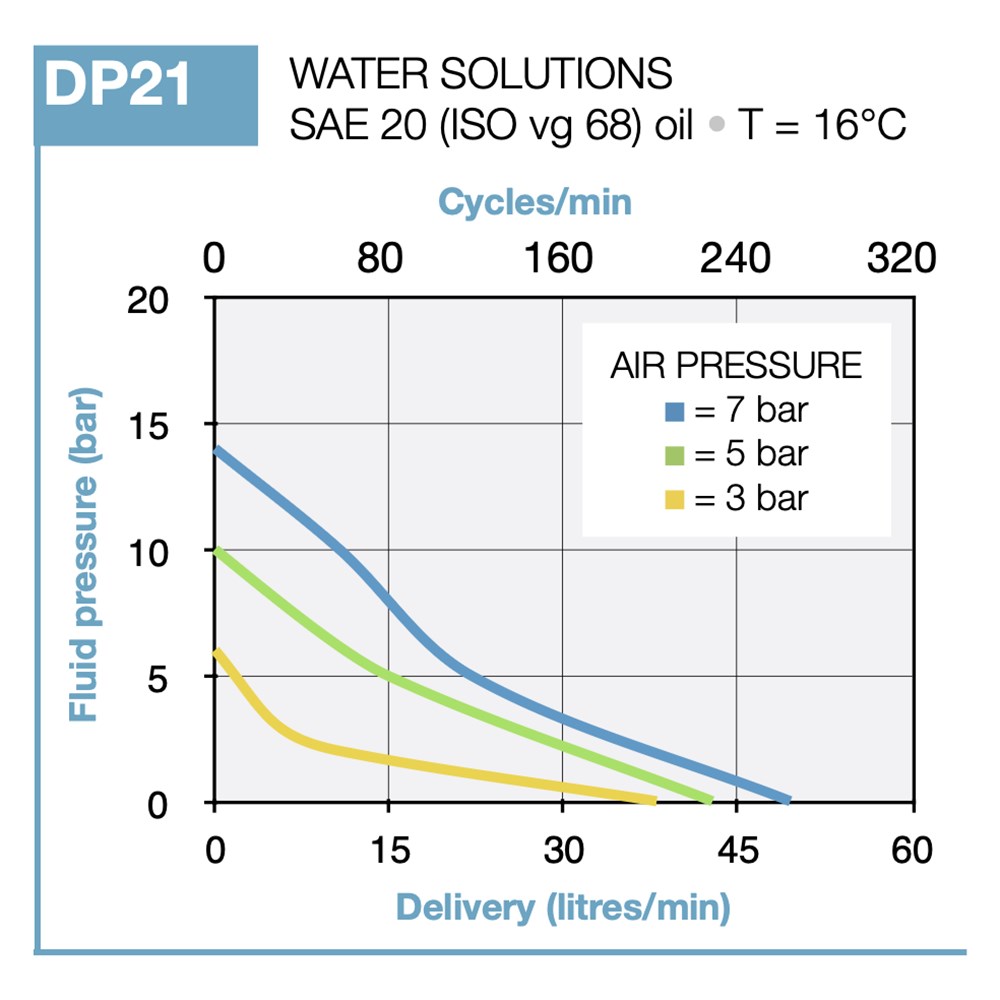

• Delivery at free outlet: (7 bar) 50L/min
• Air pressure: 3-7 bar
• Air consumption: 200-250 L/min

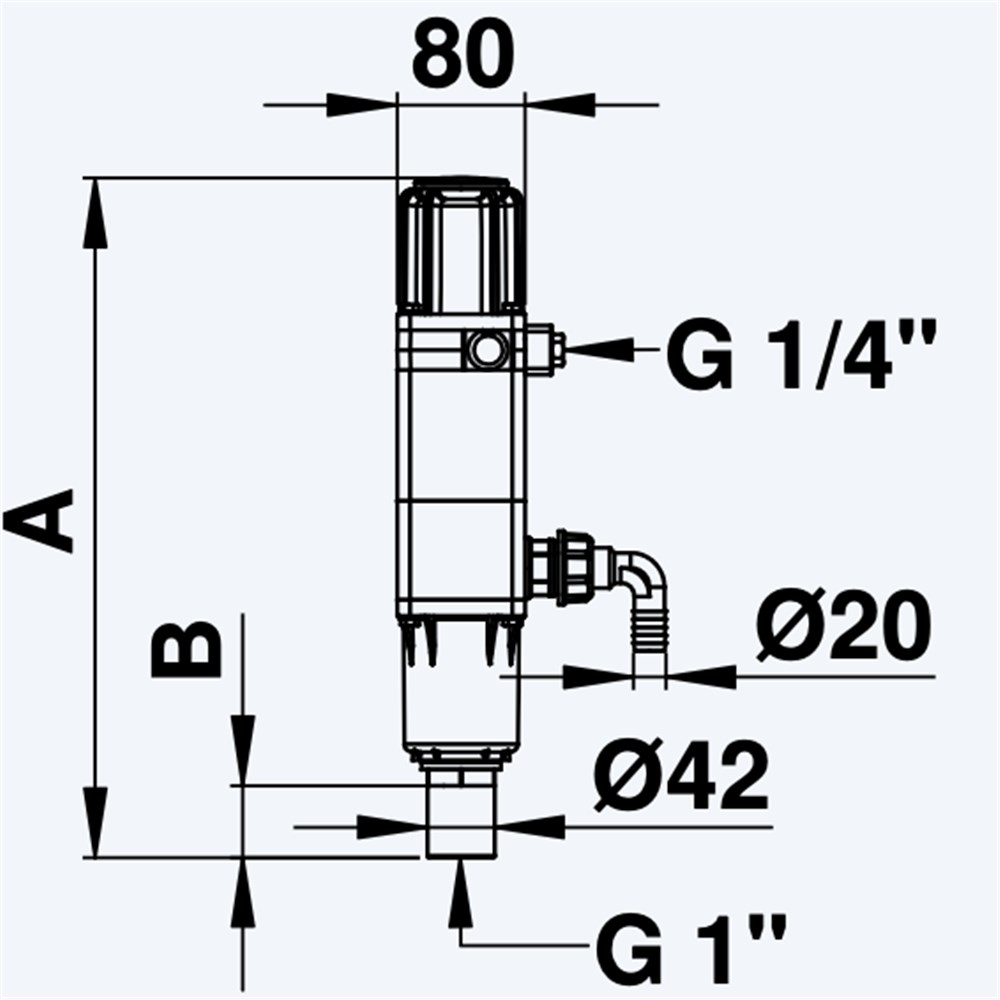

• Suction connection diameter: 42 mm
• Air inlet connection: F. 1/4 G
• Suction connection: F. 1 G
• Outlet connection: 20 mm
• Total length (mm): 425
• Weight (kg): 2.4kg
