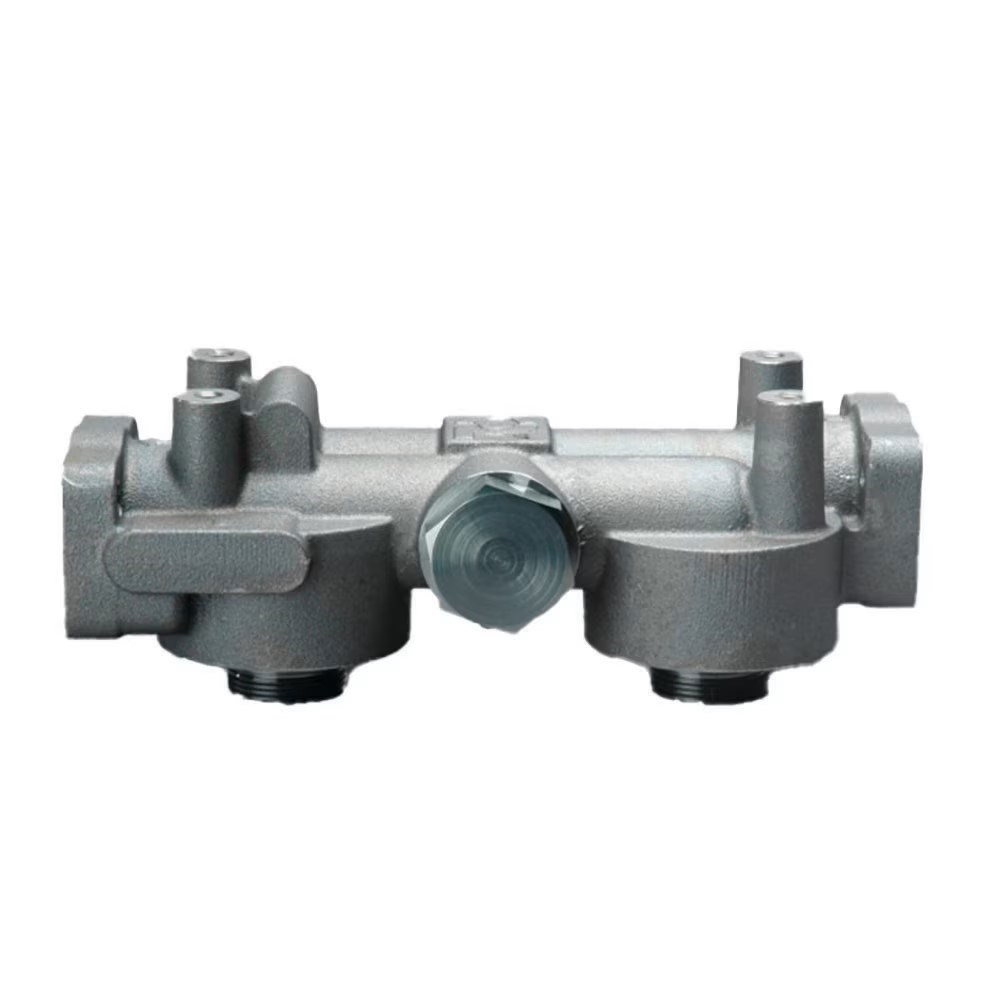

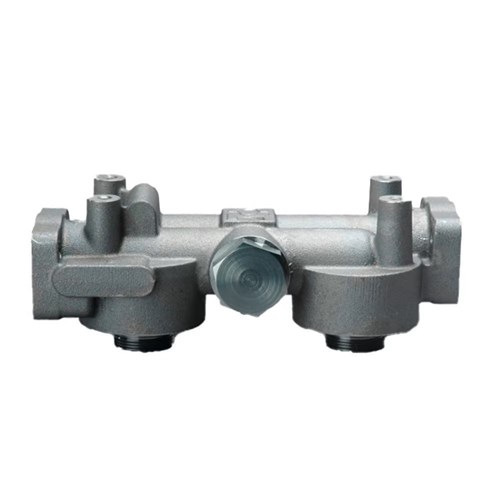

The ULTRAFLO Head Assembly is a high-performance component designed for bulk fluid filtration systems. this product is part of Bulk Filtration and is engineered for durability and efficiency in fluid handling applications.
Inlet Size 1 1/2 SAE 4 Bolt Code 61
Outlet Size 1 1/2 SAE 4 Bolt Code 61
Specifications
Connection: 1&1/2" SAE 4-Bolt Code 61 Flange
Filter Quantity: 2
Max. Flow Range: 125 gpm / 473 lpm
Fluid Compatibility: All diesel fuels and lubricants
Working Pressure: 350 psi / 2413 kPa / 24.1 bar
Rated Static Burst: 800 psi / 5520 kPa / 55.2 bar
Operating Temperature: -40 to 245 F / -40 to 118 C
Indicator Port: Use to adapt pressure gauges or samping ports (sold separately)
Construction: Aluminum head with threaded steel inserts and Viton seals
Compatible Filters
DBB8664, DBB8665, DBB8666,
DBB5333, DBB0248, DBB8777,
DBB7733
Flange Adapters:
P563107 11/2" NPTF
P563109 SAE-24
