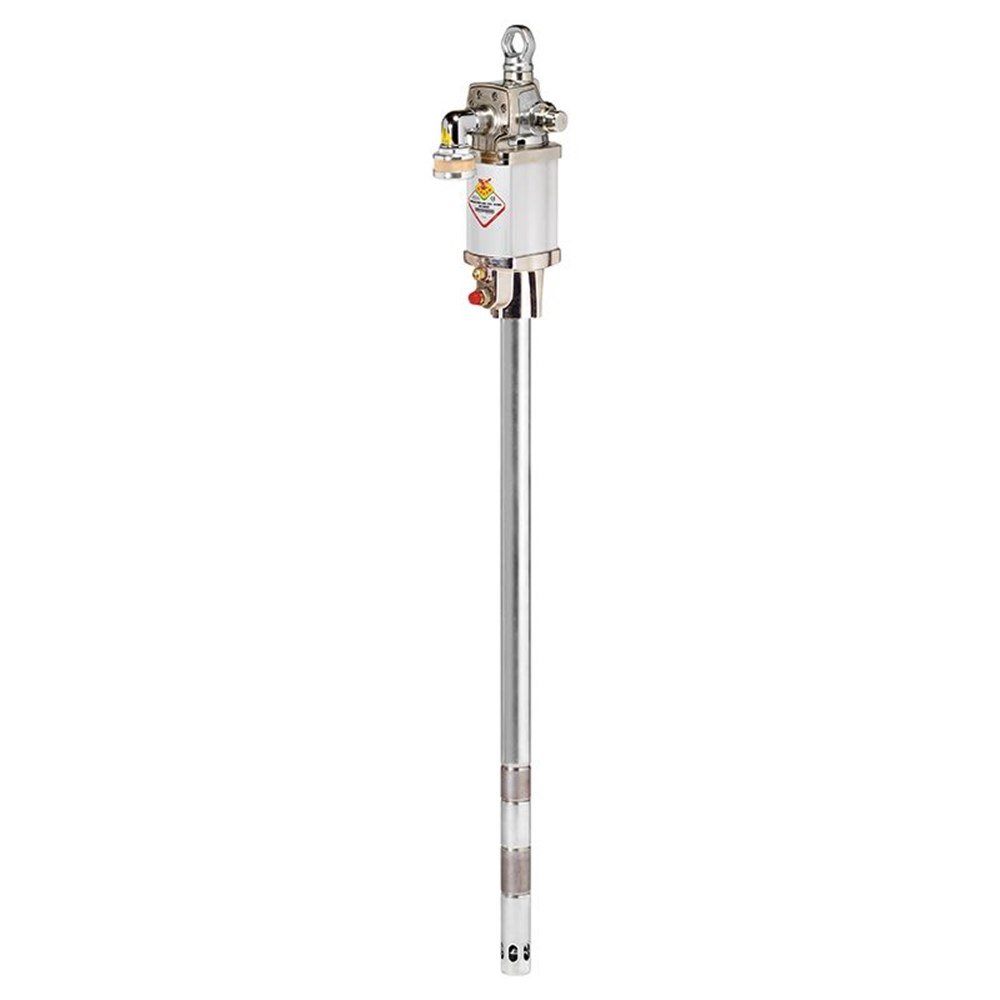

The RAASM 70:1 Ratio Grease Pump is an integral pump built for oils and grease. These pumps have a suction tube built of steel that can dispense fluids from 180kg drums.

Series 900 industrial air operated pumps for short-long distance grease distribution, for high pressure greasing.

Ideal for transferring grease and high viscosity oil.

The double action guarantees the delivery of a continuous and constant flow, suitable for the numerous needs of modern industry.

The high quality of the materials used and the anticorrosion treatments reduce internal friction and limit wear over time.

SPECIFICATIONS

Flow rate: 3000 g/min
Ratio: 70:1
Compatible fluids: high viscosity oils and greases
Suction tube upper body: aluminum
Suction tube: carbon steel
Air inlet connection: G 1/2" (f)
Fluid outlet connection: G 1/2" (f)
Max supply pressure: 8 bar
Max air consumption 8 bar: 1,6 m3/min
Noise level: 80 dB
Suitable for drums or tank: suitable for drums 180 - 220 kg
