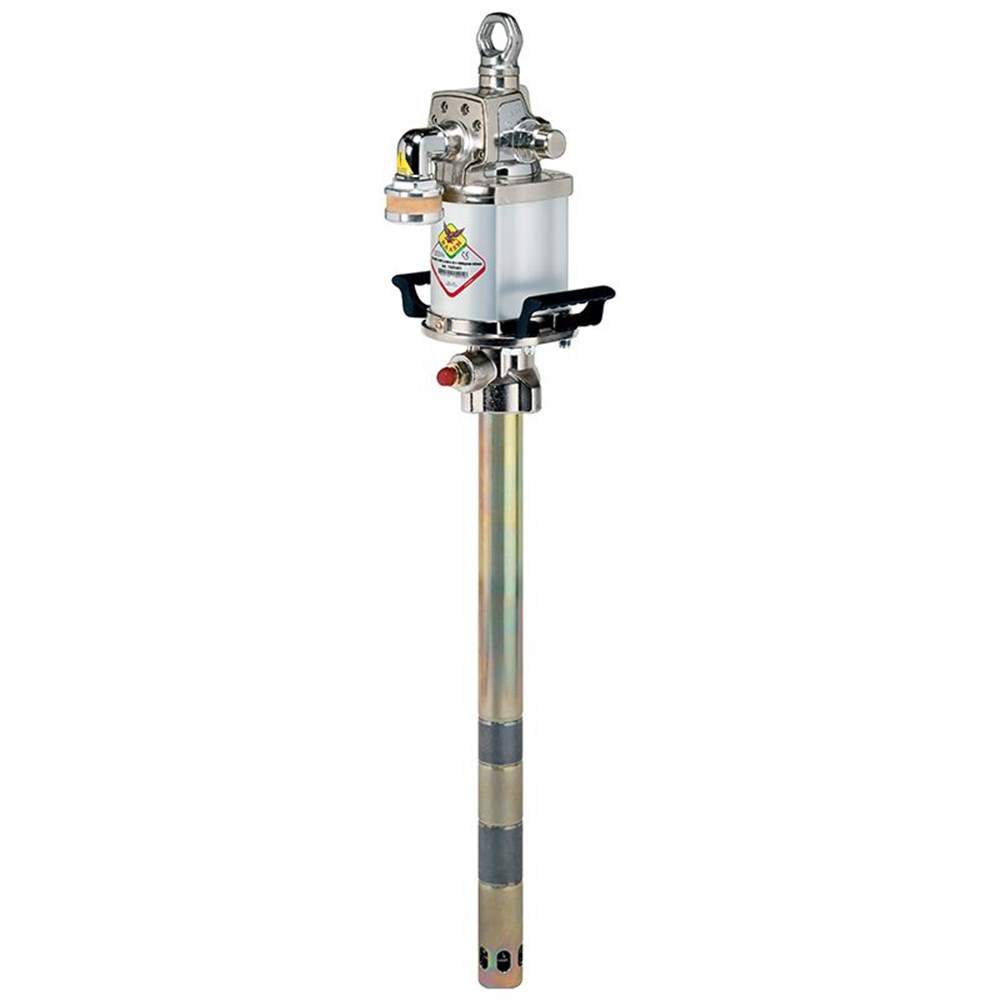

RAASM 40:1 Ratio High Volume Grease Stub Pump

Product Code: AF-RA-118F/401

Brand
RAASM
Increase value Decrease value
Description

The RAASM 40:1 Ratio Grease Pumps are flanged industrial pumps built to dispense high viscosity fluids such as grease and oils. The high quality components ensure lasting and reliable operation even in the most extreme conditions.

SPECIFICATIONS

  • Compression Ratio: 40:1
  • Flow Rate: 10 kg/min
  • Air Cylinder Diameter: 115mm
  • Max supply pressure: 8 bar
  • Max air consumption 8 bar: 2,8 m3/min
  • Air Inlet Connection: 1/2 (f)
  • Fluid Outlet Connection: 1/2 (f)
  • Suction tube upper body: carbon steel
  • Suction tube: carbon steel
  • Suction Tube Length: 600mm
  • Suction Tube Diameter: 50.8mm
  • Noise level: 80 dB
  • Suitable for drums or tank: tank
  • Compatible fluids: high viscosity oils and greases


Technical Specifications
Brand RAASM
