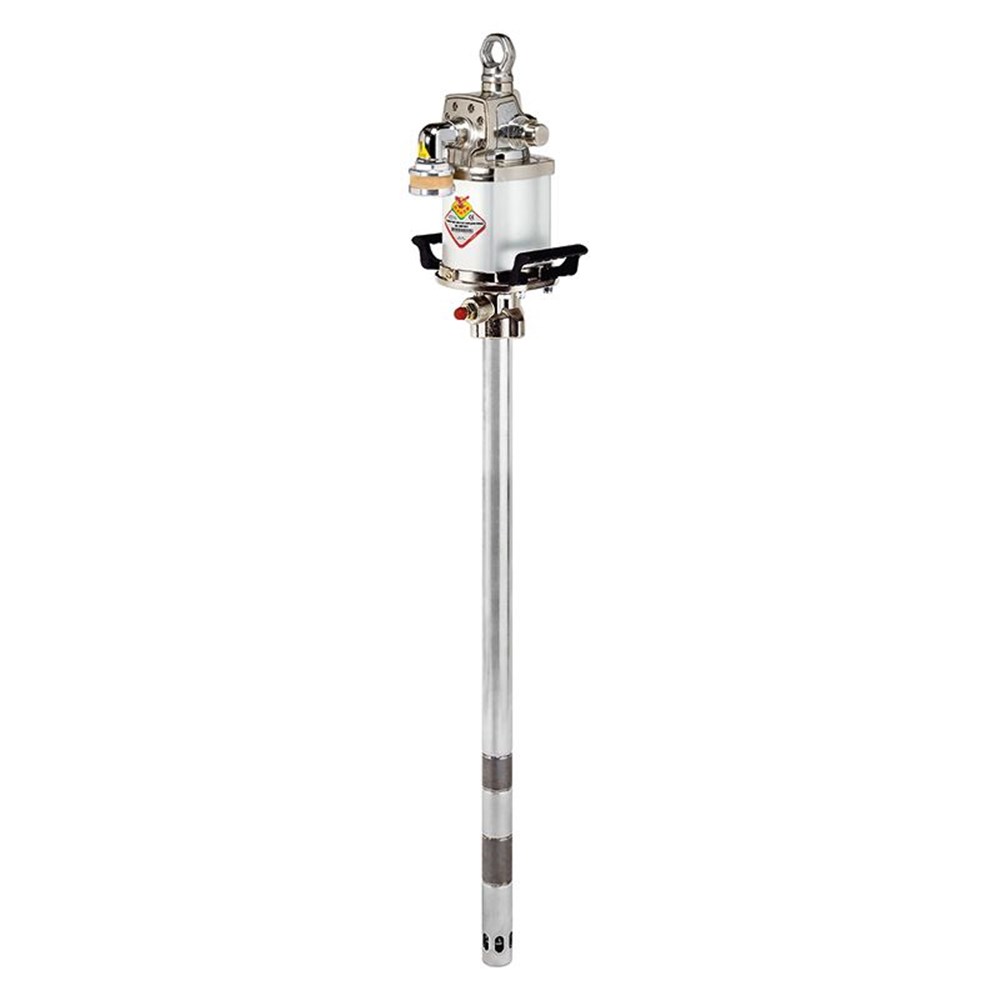

The RAASM 1200 Series 75:1 Ratio Grease Pump is a flanged pump built for highly viscous fluids such as grease and oil. These Pumps are built for 180Kg - 220Kg drums. The suction tube made of steel allows these pumps to dispense grease/oil from 180Kg drums. The RAASM 75:1 Ratio Grease Pumps hold the ATEX (ZONE 2) & ATEX (ZONE 22) certifications.

SPECIFICATIONS

• Flow rate: 4400 g/min
• Ratio: 75:1
• Compatible Fluids: Greases, High viscosity oils
• Suction Tube Upper Body: Carbon steel
• Suction Tube: Carbon Steel
• Air Inlet: 1/2" (f)
• Fluid Outlet: 1/2" (f)
• Max Air Pressure: 8 bar
• Max air consumption 8 bar: 2.8 m3/min
• Noise level: 80 dB
• Suitable for drums or tank: suitable for drums 180 - 220 kg
• Industries: Mining, Shipping and Manufacturing Industries
• Certifications: ATEX (ZONE 2) & ATEX (ZONE 22)
