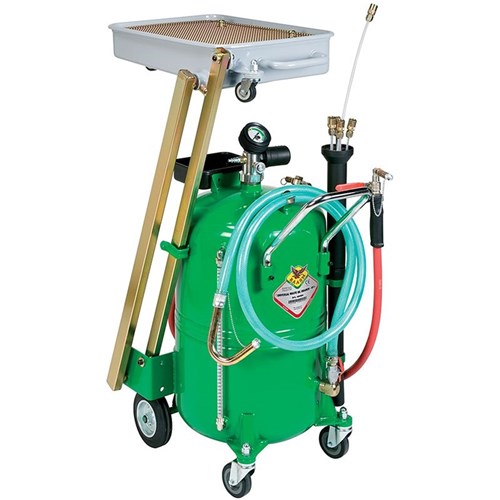

The RAASM Pantograph Oil Suction Drainers are universal oil drainers that can be used to change the oil of all motor vehicles.
Air Operated - Waste oil can be collected whether by gravity, using the recovering basin on the floor or in the upper position if vehicles
are over car lift, or by suction through the supplied probes. (Oil must be hot at 70-80 C.
After depressurisation the drainer works independently without
requiring continuous connection to the compressed air system.
Comes complete with:
- Level Gauge
- Cantilever arms & removable drip tray
FEATURES:
- Tank capacity: 65 L
- Max draining capacity: 52 L
- Bowl capacity: 14 L
- Air pressure for depressurisation: 6.5 - 7 bar
- Depressurisation time: 2 min
- Noise level: 75 dB
- Suction speed: 1.5 - 2 l/min
- Total suction capacity: 43 - 45 L
- Discharging/Suction hose: 2 m / 2 m
- Max pressure for discharging: 0.5 bar
MODELS AVAILABLE
- RAASM 65L Universal Mobile Oil Suction Drainer (AF-RA-46065)
- RAASM 115L Universal Mobile Oil Suction Drainer (AF-RA-46215)
