Product Code: AF-RA-62048

Description

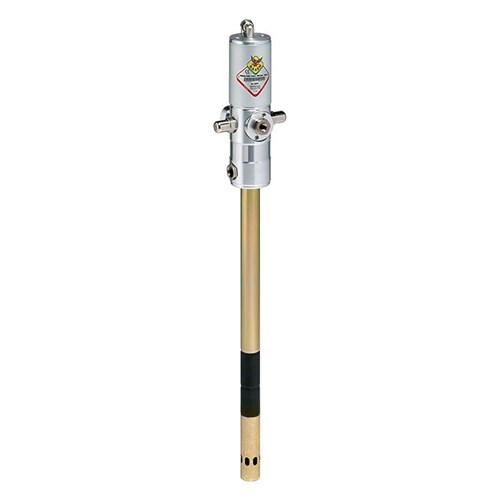

The RAASM 50:1 Ratio Grease Pump is a high-pressure grease pump that has the ability to dispense up to 1500 g/min. These pumps are ideal for dispensing medium-high viscosity grease over medium to large distances. The 50:1 Ratio Pump is suitable for mobile installations & centralised fixed systems.

SPECIFICATIONS

Suitable for 20kg drum
Flow Rate: 1500 g/min
Suction Tube: Carbon Steel
Suction Tube Upper Body: Aluminium
Compatible Fluids: Medium-High viscosity Greases
Air Inlet: 1/4 (f)
Fluid Outlet: 3/8 (f)
Working Pressure: 6-8 bar
Industries: Agriculture, Aeronautic, Construction, Railway, Mining & Centralized Lubrication System industries.

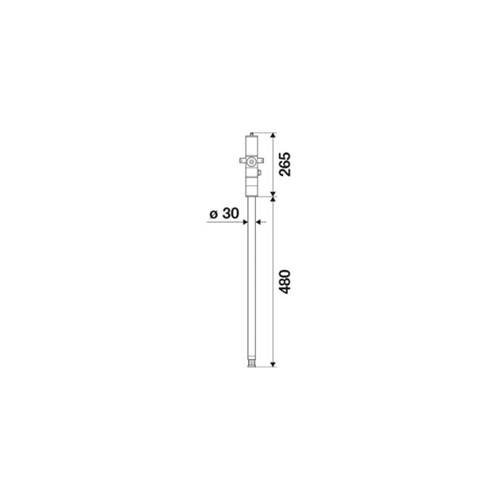

DIMENSIONS AND WEIGHT

480mm (L) x 30mm (W) x 265mm (H)
4.8Kg

MODELS AVAILABLE

RAASM 50:1 Ratio Grease Pump - Suitable for 20kg drums (AF-RA-62048)
RAASM 50:1 Ratio Grease Pump - Suitable for 180kg drums (AF-RA-62095)

Technical Specifications

Brand	RAASM
Dimensions	78X12X12
Weight	5 Kg
