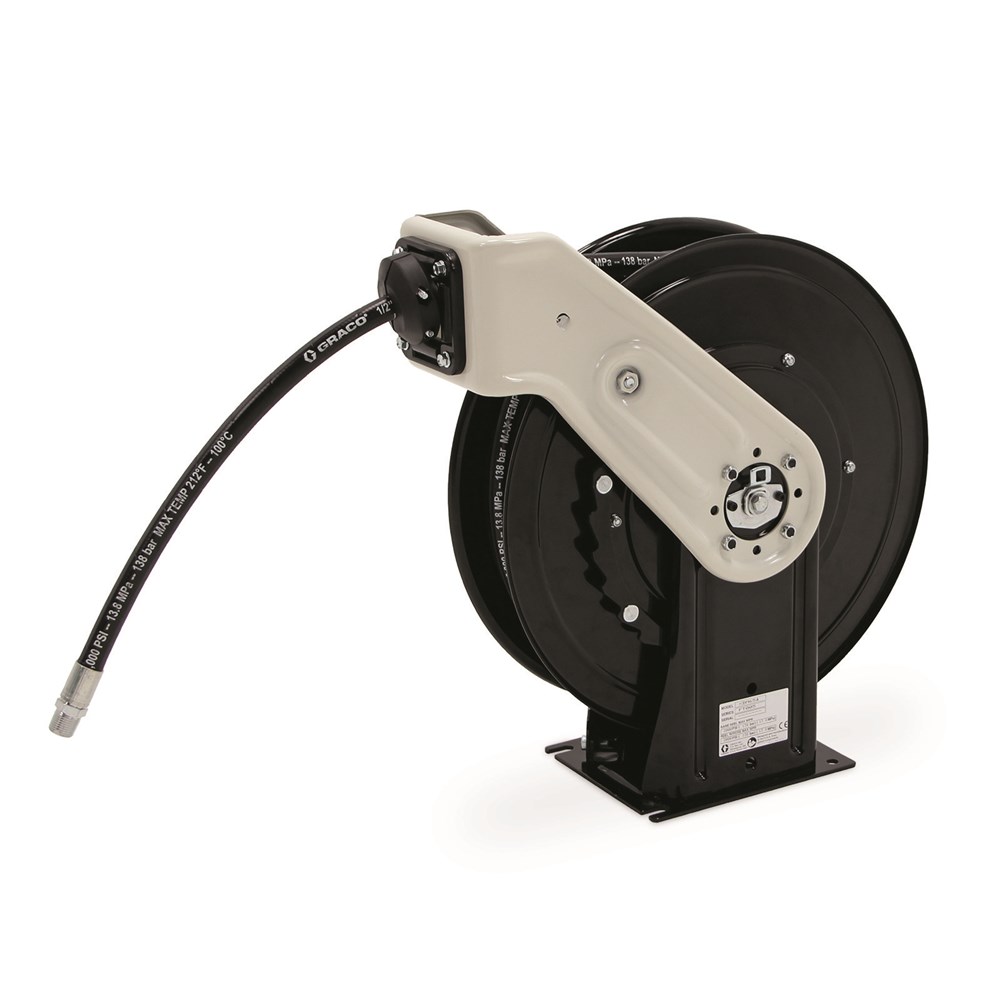

XDX 20, Air/Water/Antifreeze/WWS, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, White
Graco s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment Increase or decrease spring tension while reel is pressurised with fluid
- Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile Compact pedestal and spool fits into tight spaces and can accommodate 107-198 metre (35-65 foot) hose capacity for a wide variety of applications
Technical specifications
Hose Inside Diameter (mm): 9.525
Inlet Size (in / mm): 1/2 / 12.7
Maximum Temperature ( C / F): 87 / 190
Maximum Working Pressure (psi): 300
Minimum Temperature ( C / F): -28 / -20
Outlet Size (in / mm): 3/8 / 9.525
Overall Height (in / mm): 25.2 / 640
Overall Length (in / mm): 23.4 / 594
Overall Width (in / mm): 7.5 / 191
Series: 20
Frame Type: Dual Pedestal
Reel Thread Type: NPT
Inlet Thread Gender: Male
Outlet Thread Gender: Male
Recommended Fluid Type: Air, Water, Antifreeze, WWS
Hose Reel Type: Reel with Hose
includes_hose: Yes
