Grease Hose Reels

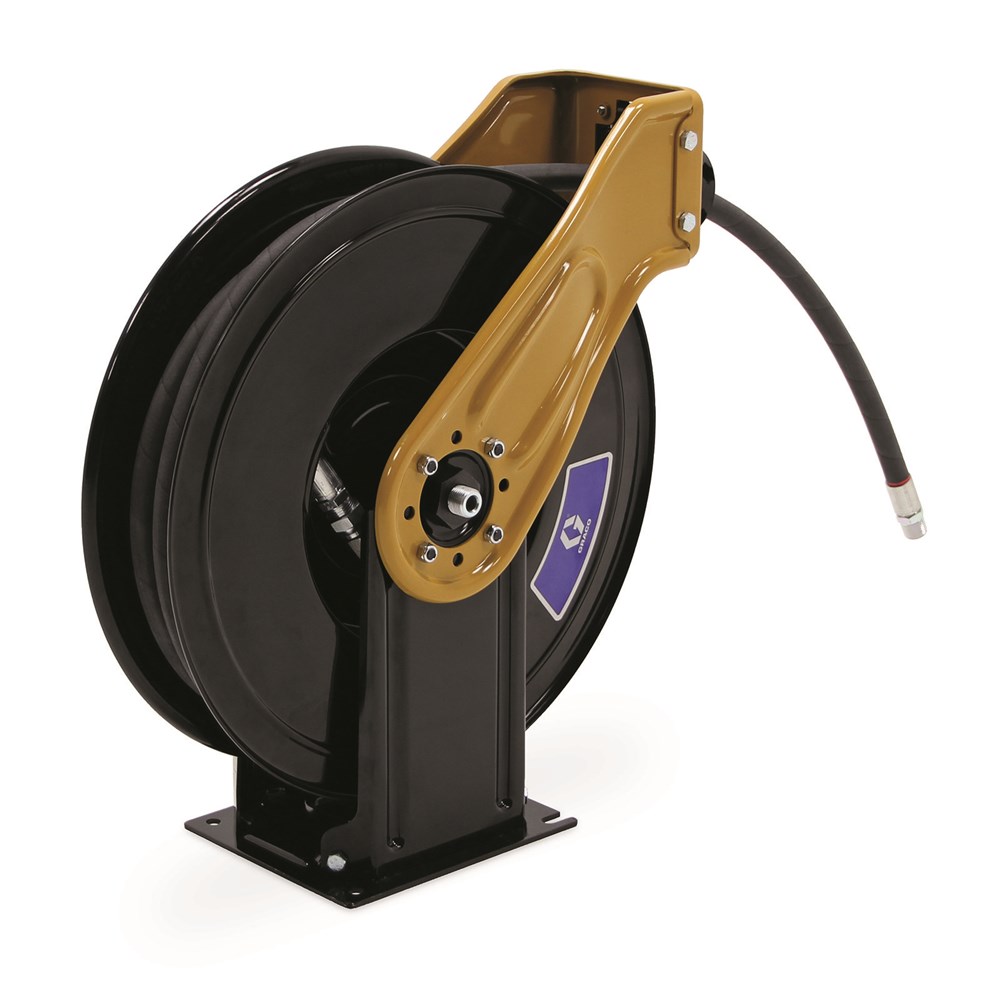

GRACO XD20 Series HP Reel Grease Reel 3/8" x 15m - Yellow

Product Code: AF-G-XDH55F

Brand
Graco
Increase value Decrease value
Description

XDX 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, Yellow

Graco s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid

  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop

  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)

  • Durable Finish - Baked-on enamel finish protects reel from corrosion

  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

Operational Specifications
UPC product769946210231
DivisionLED
Family codeFAMXD1
Country of OriginUS
Unit of MeasureEA
Height67.31 CM
Length62.23 CM
Width24.13 CM
Volume.101 M3
Shipping Weight32.84 KG
HTS Code (AU)8479899090
Technical specifications
Hose Inside Diameter (mm)9.525
Inlet Size (in)1/2
Inlet Size (mm)12.7
Maximum Temperature ( C)93
Maximum Temperature ( F)200
Maximum Working Pressure (psi)4800
Minimum Temperature ( C)-40
Minimum Temperature ( F)-40
Outlet Size (in)1/4
Outlet Size (mm)6.35
Overall Height (in)25.2
Overall Height (mm)640
Overall Length (in)21
Overall Length (mm)533
Overall Width (in)7.5
Overall Width (mm)191
Series20
Frame TypeDual Pedestal
Reel Thread TypeNPT
Inlet Thread GenderMale
Outlet Thread GenderMale
Recommended Fluid TypeGrease
Hose Reel TypeReel with Hose
ModelXDX
includes_hoseYes
