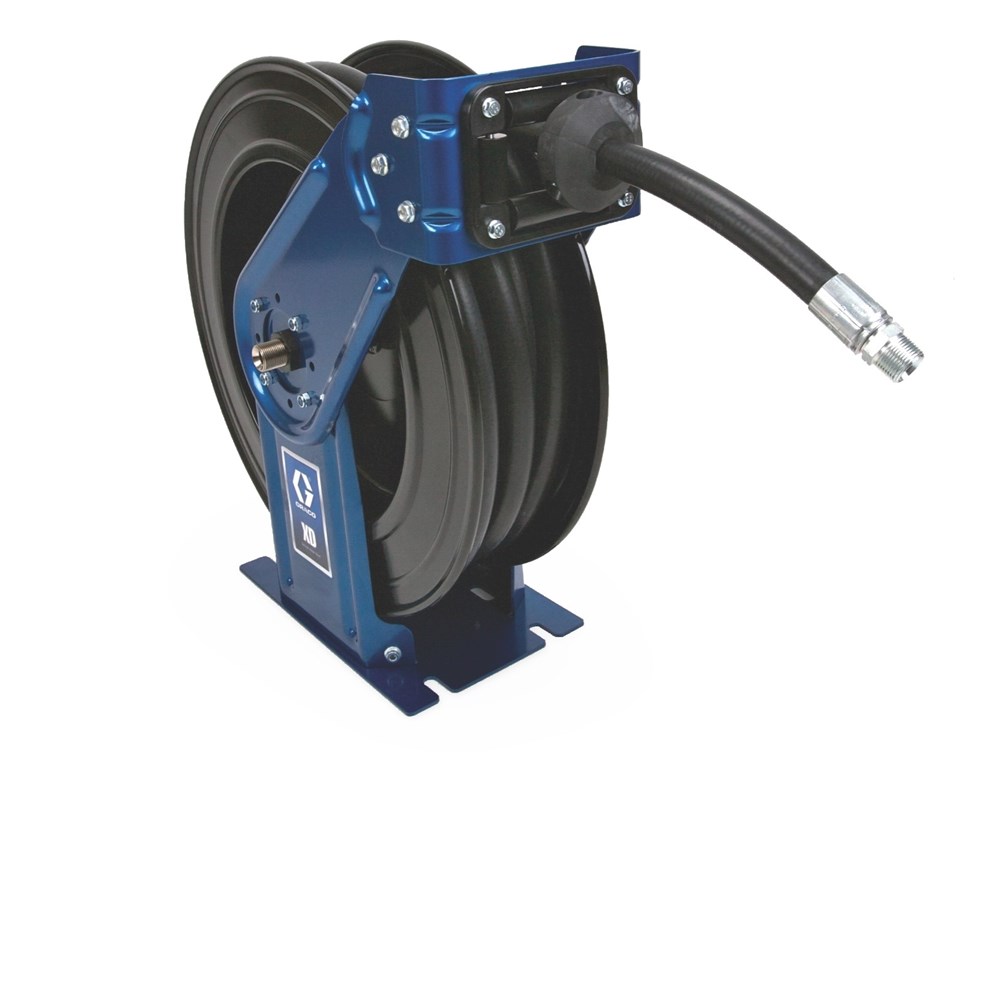

Graco s XD30 Series Hose Reels are used in applications requiring longer range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 9.1-22.8 metre (30-75 foot) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment Increase or decrease spring tension while reel is pressurised with fluid
- Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile Compact pedestal and spool fits into tight spaces and can accommodate 91-228 metre (30-75 foot) hose capacity for a wide variety of applications
Technical specifications
Dry Weight (lb): 98
Hose Inside Diameter (mm): 12.7
Inlet Size (in): 1/2
Inlet Size (mm): 12.7
Maximum Working Pressure (psi): 1500
Outlet Size (in): 1/2
Outlet Size (mm): 12.7
Overall Height (in): 27.6
Overall Height (mm): 701
Overall Length (in): 25.96
Overall Length (mm): 659
Overall Width (in): 9
Overall Width (mm): 229
Series: 30
Frame Type: Dual Pedestal
Reel Thread Type: NPT
Recommended Fluid Type: Oil
Hose Reel Type: Reel with Hose
Model: XD
includes hose: Yes
