Air & Water Hose Reels

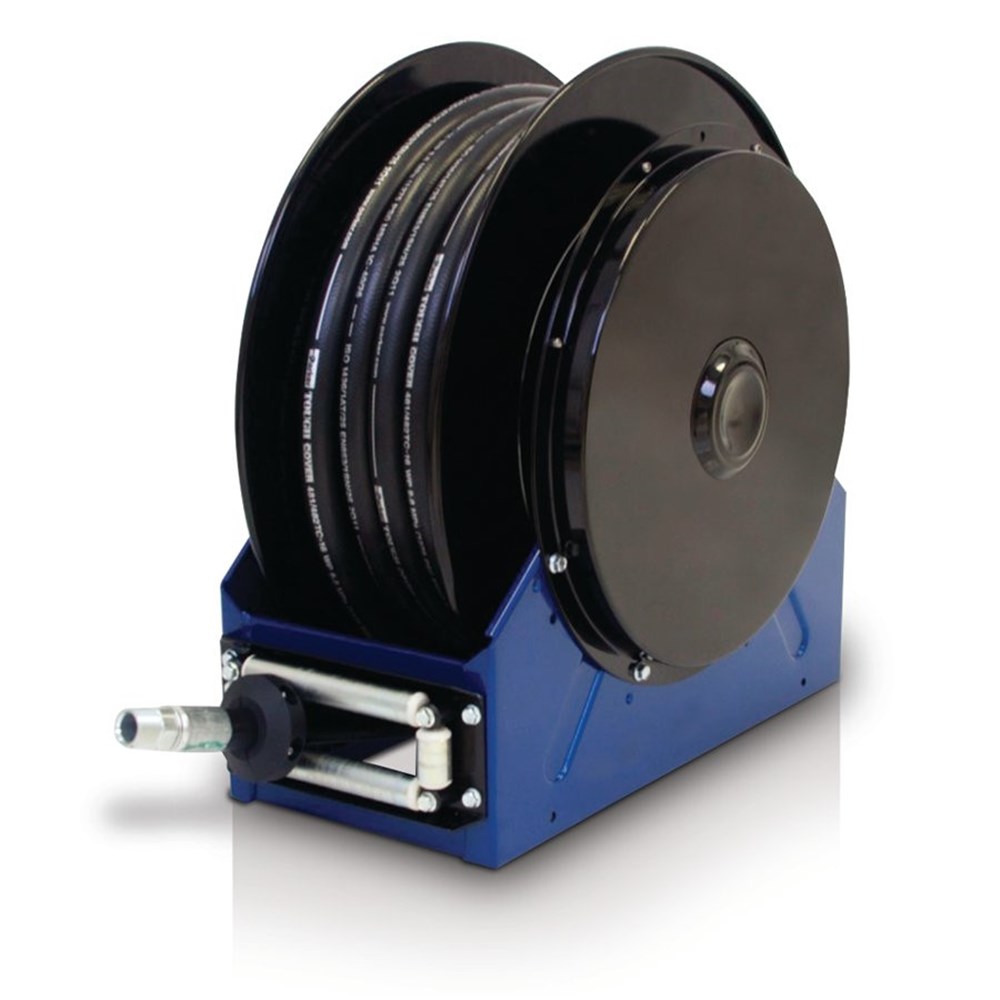

GRACO XD50 Series Blue Air/Water Reel - 23m x 1" ID Hose

Product Code: AF-G-24P470

Brand
Graco
Increase value Decrease value
Description

XD50 , Air/Water, 1 in. (25 mm) Inlet, 25 mm X 23 m (1 in. X 75 ft.) Hose, NPT, Metallic Blue

Graco s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several colour options, thread types and hoses. Typical fluids handled include: Petroleum and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Extensive Hose Offering Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs Built standard with 90 elbow with NPT threads

Technical specifications
Dry Weight (kg): 73.5
Hose Inside Diameter (mm): 25.4
Inlet Size (in): 1
Inlet Size (mm): 25.4
Maximum Working Pressure (psi): 300
Outlet Size (in): 1
Outlet Size (mm): 25.4
Overall Height (in): 30.13
Overall Height (cm): 76.5
Overall Length (in): 29.4
Overall Length (cm): 74.7
Overall Width (in): 17.47
Overall Width (cm): 44.4
Series: 50
Frame Type: Box Frame
Reel Thread Type: NPT
Recommended Fluid Type: Air, Water
Hose Reel Type: Reel with Hose
Model: XD
includes_hose: Yes
