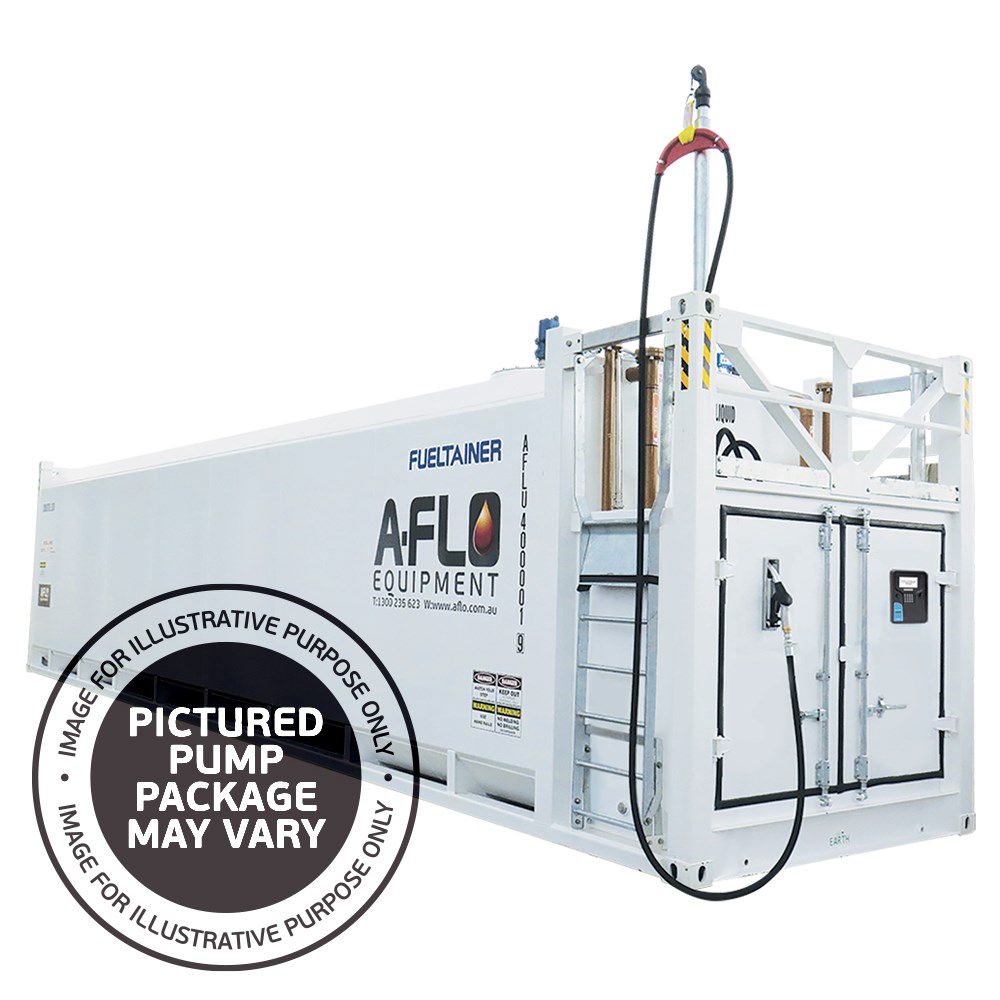

The FUELTAINER Self Bunded Bulk Diesel Storage Tanks have become a go-to for many industries due to their minimal installation costs and low maintenance. These Tanks are flexible and can be custom-built according to your refuelling needs. FUELTAINER can also be combined to hold both Diesel and AdBlue inside one integrated system.

The FUELTAINER Self Bunded Diesel Tanks provide the best storage and fluid management technology in the refuelling solutions industry.

FEATURES

• Self Bunded Diesel Static Storage Tank specifically designed to handle larger fuel storage requirements
• We also offer the popular combo of Diesel and AdBlue integrated into the one system
• Minimal installation costs and low maintenance save you time and money
• Secure lockable pump bay
• All tanks have rounded corners on the roof to provide extra strength in the construction but more importantly, do not allow debris or water to pool in the corners
• Floor drains to a low point at the front of the tank for water removal
• Can be transported by standard trucks, trains or container handling equipment without cranes
• All tanks are ISO standard shipping container design (10 , 20 , 40 & 48 ) and are built in accordance with all Australian Standards including AS1940, AS1692, AS1657 & UL Approvals
• Ideally suited for use in industries such as fuel distribution, power generation, military transport, aviation & Construction

SPECIFICATIONS

• AF-FT12 Diesel Storage Tank
  Safe Fill Level: 11,240L
  2,991 (L) x 2,438 (W) x 2,896 (H)
  Tare Weight: 4,950kg
• AF-FT30 Diesel Storage Tank
  Safe Fill Level: 29,350L
  6,058 (L) x 2,438 (W) x 2,896 (H)
  Tare Weight: 7,850kg
• AF-FT68 Diesel Storage Tank
  Safe Fill Level: 65,570L
  12,192 (L) x 2,438 (W) x 2,896(H)
  Tare Weight: 13,460kg
• AF-FT80 Diesel Storage Tank
  Safe Fill Level: 78,811L
  14,630 (L) x 2,438 (W) x 2,896 (H)
  Tare Weight: 14,550kg
• AF-FT100 Diesel Storage Tank*
  Safe Fill Level: 97,185L
  14,630 (L) x 2,438 (W) x 3,200 (H)
  Tare Weight: 18,500kg
• AF-FT100IPB Diesel Storage Tank
  Safe Fill Level: 97,185L
  14,630 (L) x 2,438 (W) x 3,550 (H)
  Tare Weight: 17,029kg
• AF-FT110 Diesel Storage Tank*
  Safe Fill Level: 109,838L
  14,630 (L) x 2,438 (W) x 3,550 (H)
  Tare Weight: 20,000kg

*No pump bay

FUELTAINER Pump Cabinets

• AF-FT100C - suits AF-FT100 & AF-FT85/10 Model Tanks
  1,182 (L) x 2,438 (W) x 3,200 (H)
• AF-FT110C - suits AF-FT110 & AF-FT95/10 Model Tanks
  1,182 (L) x 2,438 (W) x 3,550 (H)
