A-FLO Clear Captor Filter 5 Micron - 2 Cartridges

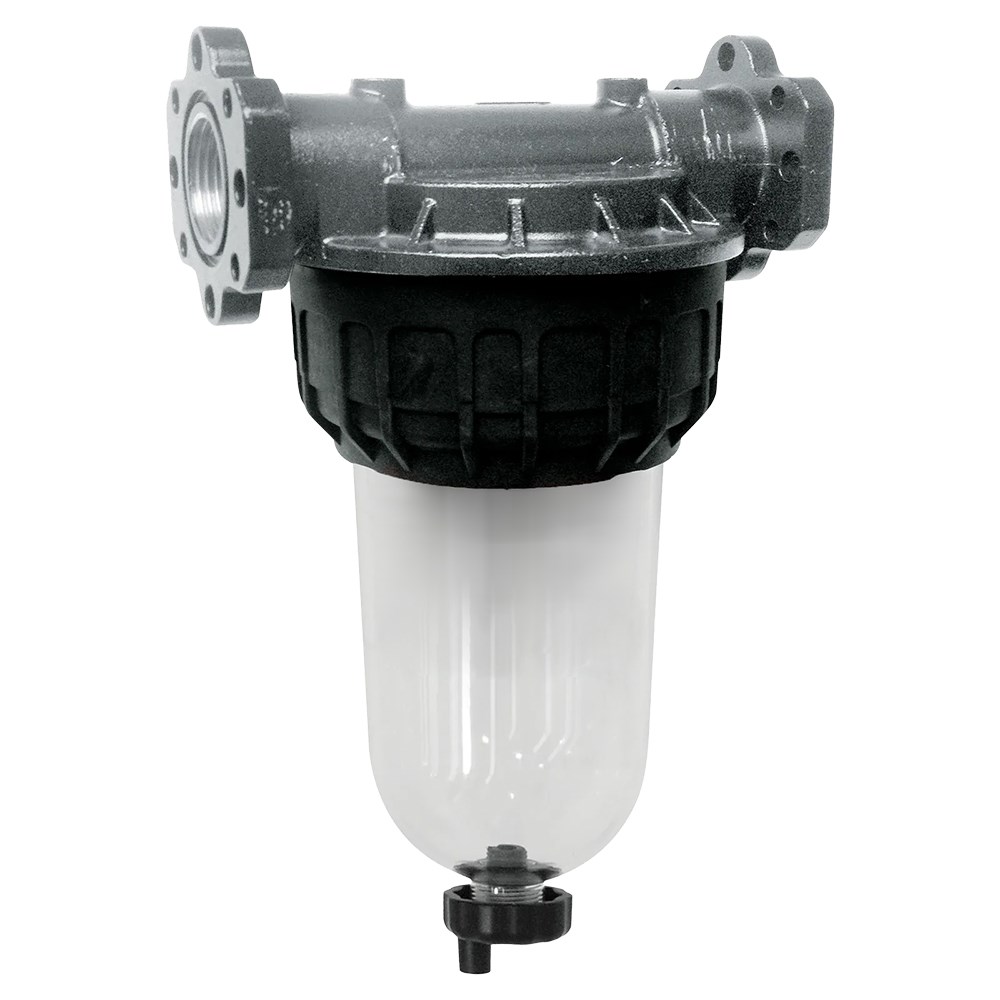

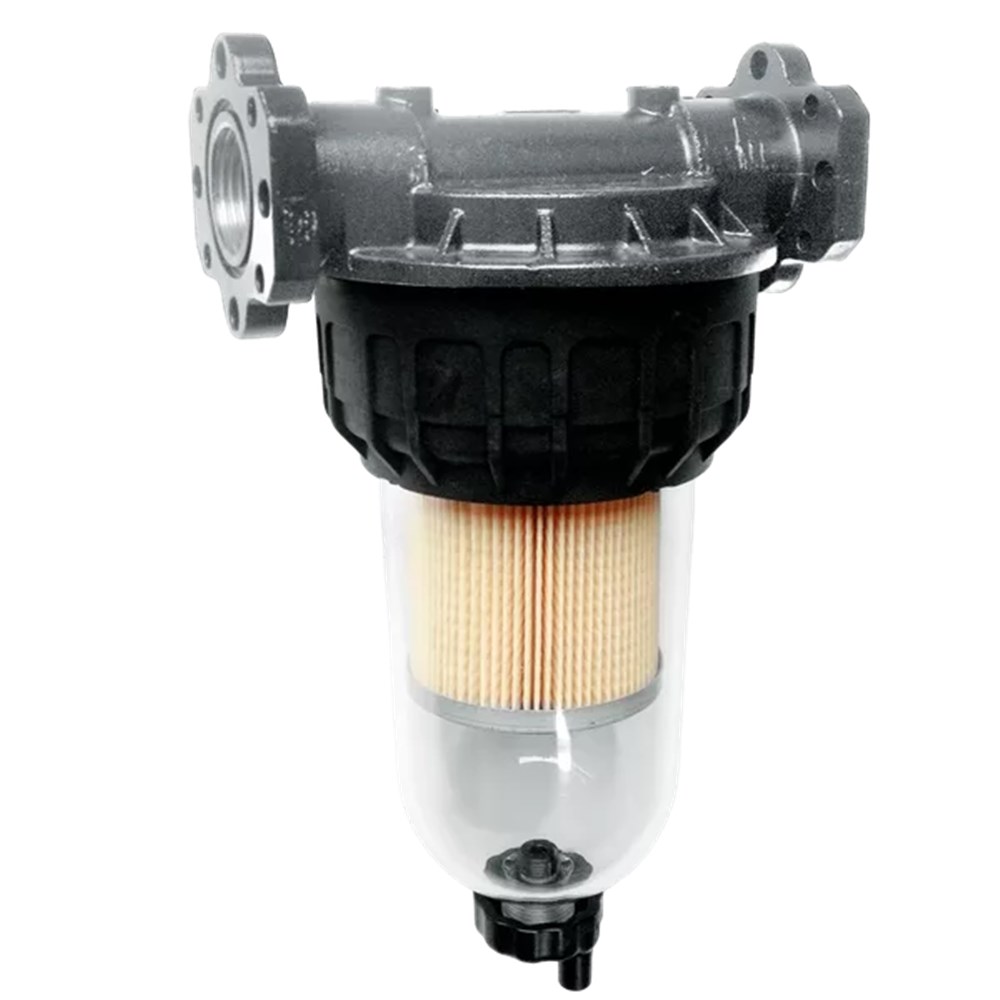

Cartridge filter with transparent housing and removable inner cartridge.

The CLEAR CAPTOR is a cartridge-filter system designed for suction or delivery flow of fuels and oils. It features a high-performance replaceable cartridge and a transparent plastic container that captures both water and particulate contaminants, enabling quick safe drainage via a bottom valve ensuring longer filter life.

FEATURES & BENEFITS:

• Replaceable cartridge: economical servicing and minimal downtime.

• High efficiency filtration: captures fine particles (e.g., 2/5 m rating).

• Compact size: suitable for both mobile and stationary installations.

• Flow versatility: can be installed in suction or delivery lines.

• Water separation capability (for water-filter versions): helps protect

• downstream equipment from water contamination.

• Transparent bowl & drain valve: visual monitoring of collected

  contaminants plus safe and easy removal.

• Durable, service-friendly design: lower maintenance overhead and longer equipment life.

• Replaceable cartridge
• High efficiency
• Small size


SPECIFICATIONS:

• Flow Rate Range 100 L/min

• Inlet/Oulet 1 BSP

• Filtering Efficiency 2 / 5 m

• Maximum Operating Pressure 5 bar

• Water Absorbing No (i.e., standard particulate

• filter version)

• Weight: approx 2.3kg

• Packaging Dimension approx 390 285 140 mm

• Pressure Drop <0.5 bar (SAE10W oil at 20 C)

• Operating Temperature -10 C to +50 C
