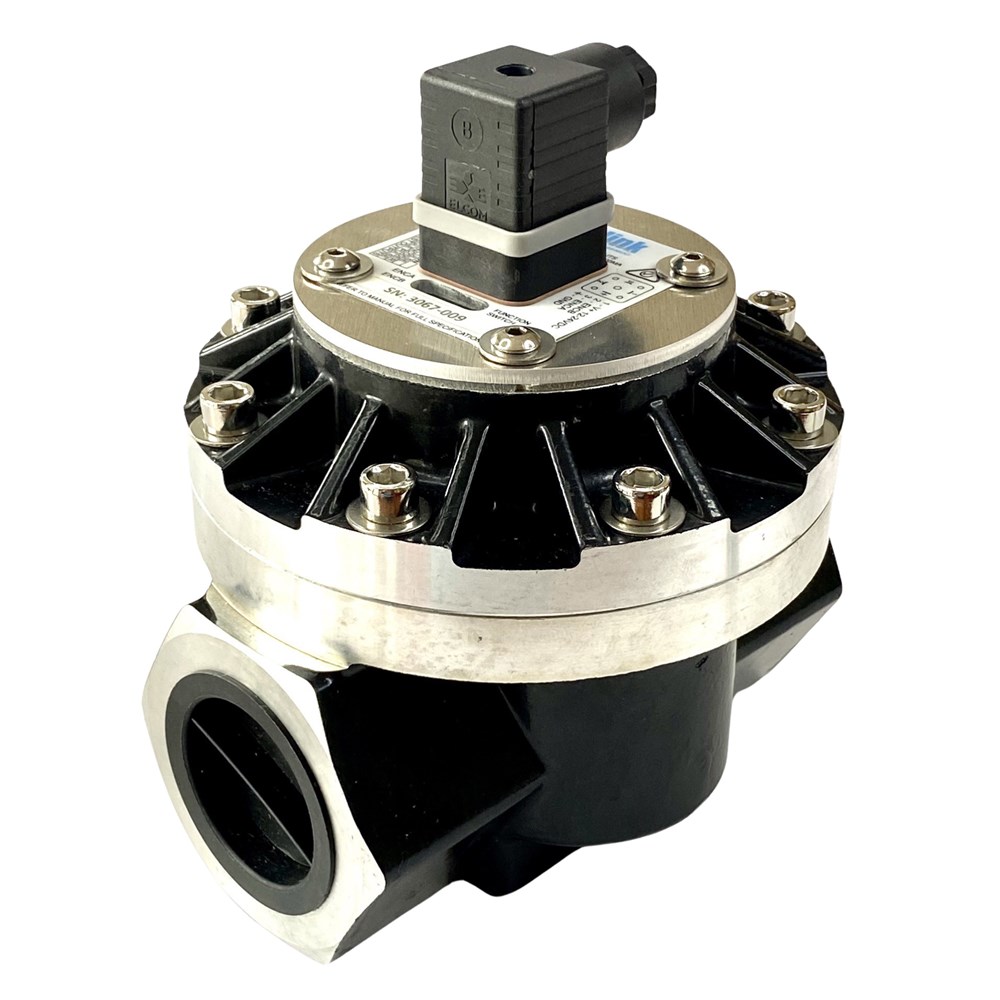

FLUIDLINK Flowmeter Diesel/Oil 40mm 1.5 "BSP, Hall Effect Switches, 4 Modes, 5-250LPM Positive Displacement
A 40mm positive displacement flowmeter with BSP threaded flange nuts. Aluminium construction with hardened bushpins, graphite bushes and aluminium gears, with hardened electroplating to provide superior service life. Fluidlink Solenoid valve can be bolted directly to this flowmeter to create a valve and flowmeter combo block, which reduces installation cost.
APPLICATIONS:
Primary industries
Infrastructure industries
Service Sector
Industrial Sector
SPECIFICATIONS:
Supply Voltage:
5-24VDC
Operating Temperature Range:
-25 C to 55 C
Humidity Range:
95% non-condensing
Ingress Protection Rating (IP):
IP65 (when installed correctly)
FEATURES & BENEFITS:
Positive displacement oval gear technology for
precise and repeatable flow measurement
Rugged aluminium construction with hardened bush pins, graphite
bushes, and electroplated aluminium gears forlong service life
Solid-state pickup eliminates contact bounce and reed switch wear -
proven to last up to 10x longer than traditional reed-based meters
Dual channel NPN output with support for Single,
Dual, Encoder, and Test Function modes
Accurate pulse output: 76.5 pulses per litre for granular datacapture
Wide flow range: 5 150 L/min to 5-250 L/min
Supplied with 5-metre PUR sheathed lead and moulded
DIN plug for fast, waterproof installation
Compatible with Fluidlink solenoid valve to
create a compact combo block
Optional stainless steel mounting cases available:
Ingress Protection Rating: IP65 (when installed correctly
