Grease Hose Reels

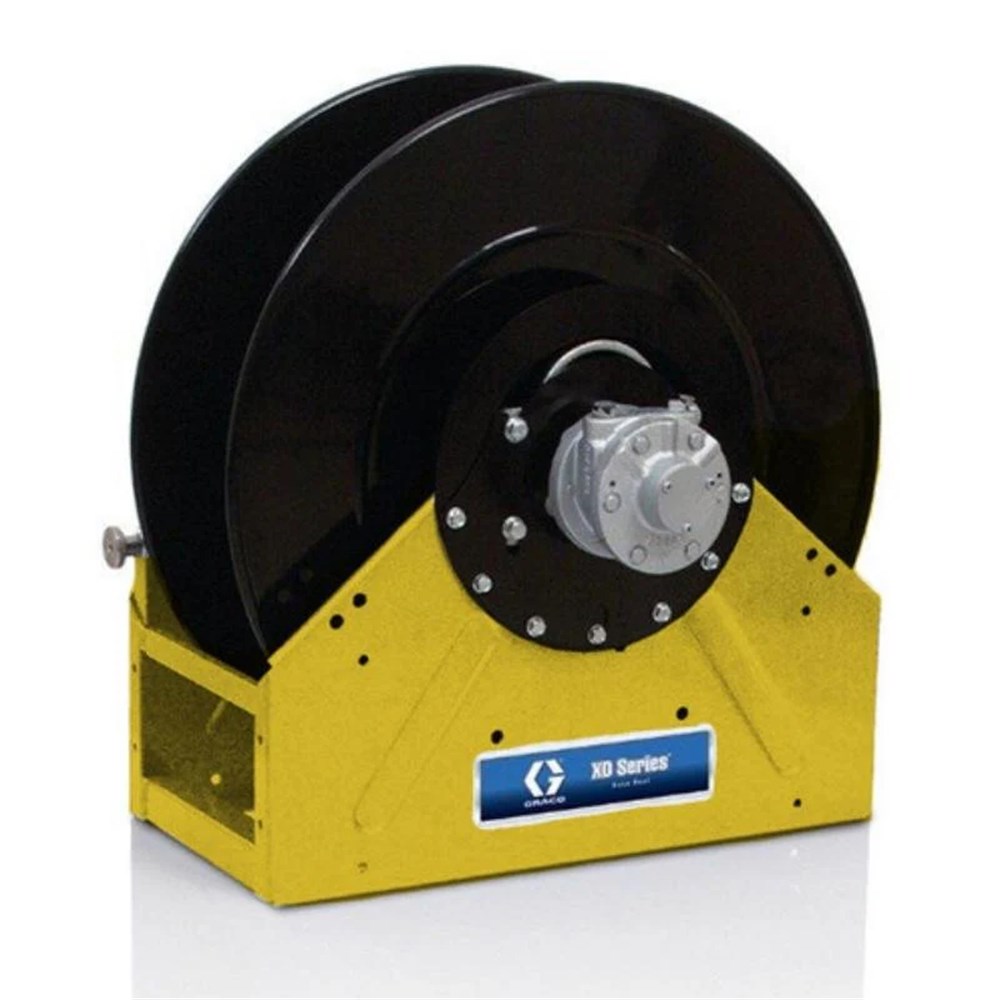

GRACO XD60 Yellow Reel Bare 1" NPT, Motorless Reel

Product Code: AF-G-24T108

Brand
Graco
Increase value Decrease value
Description

XD60 , Oil/Grease, 1 in. (25 mm) Inlet/Outlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Motorless Reel, Yellow

The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster.

*The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Safe, Reliable Direct Drive and Gear Motors - Drive unit is clean and lubricated for life No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators
  • Easy System Integration - Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation
  • Heavy-duty Welded Spool - Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation
  • Rugged and Durable Body - Heavy-duty one piece welded frame is engineered to flex under extreme operating conditions and is stronger than bolted frames that can loosen with use Individually painted and powder coated components have superior corrosion resistance over assembled and painted products

*Purchased Separately

SPECIFICATIONS

  • Inlet Size (in): 1
  • Inlet Size (mm): 25.4
  • Inlet Size (cm): 2.54
  • Inlet Thread Gender: Female
  • Maximum Temperature ( C): 82
  • Maximum Temperature ( F): 180
  • Maximum Working Pressure (psi): 3000
  • Maximum Working Pressure (kPa): 20670
  • Maximum Working Pressure (bar): 207
  • Minimum Temperature ( C): -40
  • Minimum Temperature ( F): -40
  • Outlet Size (in): 1
  • Outlet Size (mm): 25.4
  • Outlet Size (cm): 2.54
  • Outlet Thread Gender: Female
  • Overall Height (in): 26.1
  • Overall Height (mm): 662.9
  • Overall Height (cm): 66.294
  • Overall Length (in): 26
  • Overall Length (mm): 660
  • Overall Length (cm): 66
  • Overall Width (in): 15.07
  • Overall Width (mm): 382.77
  • Overall Width (cm): 38.2778
  • Series: 60
  • Frame Type: Box Frame
  • Recommended Fluid Type: Oil, Grease
  • Reel Thread Type NPT
  • Hose Reel Type: Bare Reel
  • Model: XD
