Hand Operated Diesel Pumps

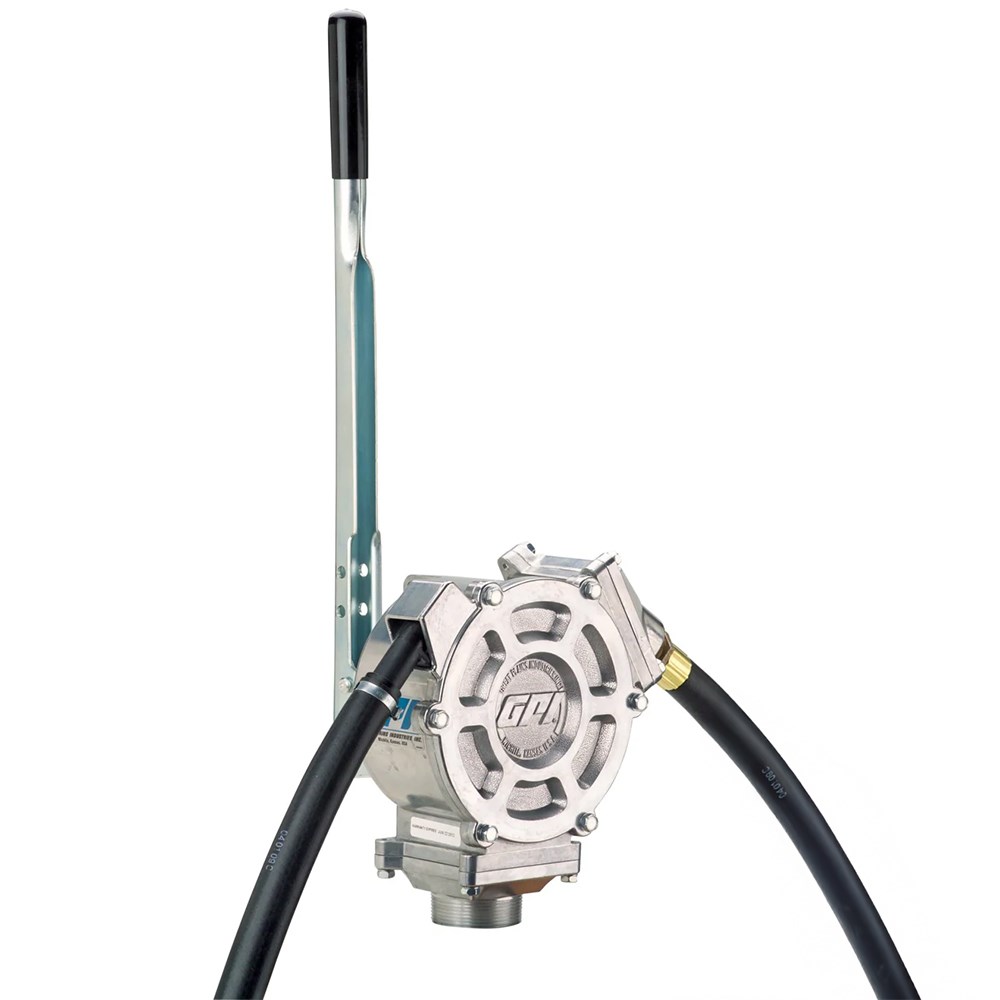

Lever Piston Hand Pump, 189L / 100 Strokes

Product Code: AF-UF-HP-100-NUL

Brand
A-FLO Equipment
Increase value Decrease value
Description

The HP-100 Dual-flo hand pump is a reliable and versatile solution for all your fuel transfer needs, with a premium design that delivers double the flow of other hand pumps at 1.9 L per stroke. For heavier fluids or for easier pumping, use the second stroke setting. in either handle position, expect economical, trouble-free operation.

The pump is made in the USA with a 2-year warranty and is virtually maintenance-free. It is perfect for industries such as construction, agriculture, and more, where portability, reliability, and versatility are key.

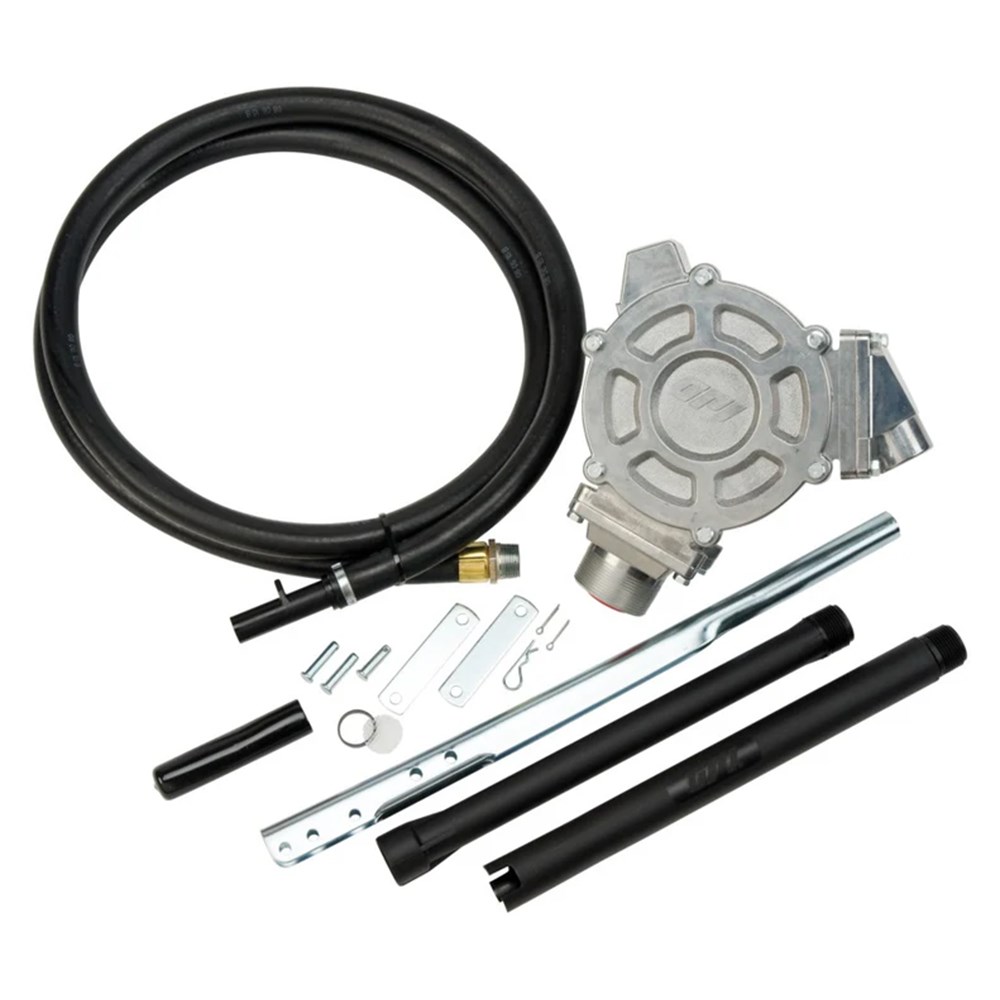

The HP-100 comes with everything you need for easy installation, including a telescoping suction pipe, dispensing hose, pump, lockable handle lever, bung adapter, and anti-siphon valve. It can be easily mounted to tanks with a 2" NPT thread.

FEATURES

  • Dual-Flo piston design pumps fluid on both the push and pull stroke.
  • Two-position handle provides versatility for both high and low flow rate applications.
  • Light-weight aluminum body provides corrosion resistance and reduces tank stress.
  • Handle lock deters fluid theft
  • Comes complete with 3/4 in. x 2.44 m Nitrile fuel dispensing hose with static wire and plastic nozzle.

SPECIFICATIONS

  • Type: Piston
  • Flowrate: 1.9L per stroke
  • Suction Pipe Connection: 1" NPT (F)
  • Outlet Connection: 3/4" NPT (F)
  • Mounting Connection: Direct Mount, 2" NPT (M)
  • Pump Housing: Lightweight Cast Aluminium
  • Dispensing Hose: 3/4 in. x 2.44 m Nitrile fuel dispensing hose with static wire and plastic nozzle.
  • Suction Pipe: Polypropylene, Telescoping 38 cm - 101 cm x 1" NPT

COMPATIBLE FLUIDS

  • Petrol (Up to E15)
  • Diesel (up to 20% biodiesel blends such as B20)
  • Kerosene
  • Avgas
  • Jet A-1
  • Hydraulic Fluid
  • Transmission Fluid
  • 10W-30W Oil
Technical Specifications
Dimensions 470x400x230
Weight 7 Kg

Click the button below to download this page as a PDF:

What Is an Oil Hand Pump?

An oil hand pump is a manually operated device used to dispense and transfer oils—such as engine oil, gear oil, and hydraulic fluid—from drums, containers, or tanks to machinery or equipment. These pumps are commonly used in workshops, garages, farms, and industrial settings where precise, low-volume oil dispensing is required.

Oil hand pumps are designed for ease of use and are available in various types, including:

  • Lever-operated pumps
  • Rotary (barrel) pumps
  • Piston or plunger pumps

They are typically compatible with standard 20L, 60L, or 205L drums, and are ideal for low-pressure applications or environments where electricity is not available.

How Do I Use an Oil Hand Pump?

Using an oil hand pump is simple and requires no power source. Follow these steps for safe and effective operation:

  1. Secure the Pump

    • Attach the pump to the oil drum or container using the threaded bung adapter or mounting kit provided.

    • Ensure a tight seal to avoid leaks.

  2. Check for Compatibility

    • Confirm that the pump is rated for the type and viscosity of oil being dispensed.

  3. Operate the Pump

    • For lever or plunger pumps, manually pull and push the handle to create suction and dispense oil.

    • For rotary pumps, turn the handle in a circular motion to transfer oil through the outlet hose or spout.

  4. Dispense Oil

    • Direct the nozzle into the receiving container or machinery reservoir.

    • Pump at a consistent speed for a controlled flow.

  5. After Use

    • Wipe the nozzle and hoses clean.

    • Seal the drum to prevent contamination or spills.

      Always follow the manufacturer’s usage instructions and safety guidelines, especially when working with industrial lubricants or hazardous fluids.

What Are the Advantages of Using a Hand Pump Over an Electric Pump?

While both serve the same core function, an oil hand pump offers several distinct advantages over electric pumps in specific scenarios:

  • Portability
    Hand pumps are lightweight and ideal for mobile or remote operations where power access is limited or unavailable.
  • Cost-Effective
    They are more affordable to purchase and maintain, making them perfect for low-volume oil transfer tasks.
  • No Power Needed
    Hand pumps operate manually, eliminating the need for electricity or batteries and reducing the risk of equipment failure.
  • Simplicity
    With fewer mechanical parts, hand pumps require less maintenance and often have a longer lifespan when properly cared for.
  • Safe for Hazardous Locations
    The absence of motors or electrical components makes hand pumps safer in flammable or explosive environments.

For small-scale, precision-oriented, or remote-use applications, an oil hand pump is often the most practical and reliable solution. Its simplicity, affordability, and safety make it an essential tool across many sectors of industry and maintenance.
