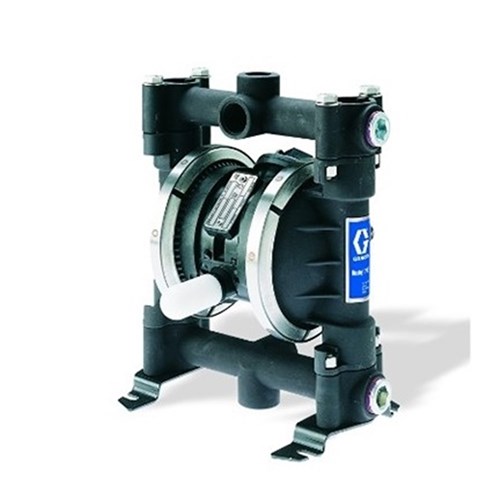

Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, TPE Ball and TPE Diaphragm
The Husky 716 Air-Operated Diaphragm Pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. When compared to other diaphragm pumps, the Husky pumps' one-piece centre part prevents leaks and lowers maintenance. The Husky 716 Air-Operated Diaphragm Pump also features an external controller for remote control capabilities.
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
- Centre and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- 19.05 mm (3/4 in) centre and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
SPECIFICATIONS
Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Ball Material: TPE (Hytrel)
Centre Section Material: Polypropylene
Compressor Required: Yes
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (in/mm): 3/4 / 19
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in/mm): 3/4 / 19
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminium
Manifold Configuration: Centre Port
Manifold O-Ring Material: PTFE
Material: Aluminium
Maximum Air Pressure (bar/psi): 7 / 100
Maximum Flow Rate (l/min): 61
Maximum Fluid Pressure (bar/psi): 7 / 100
Maximum Operating Temperature ( C): 107
Maximum Solid Size (mm) 2.4
Minimum Operating Temperature ( C): 4
Model: Husky
Power Source: Air
Seat Material: Acetal
Standards Met: ATEX, CE
Type: Pneumatic Diaphragm Pump
