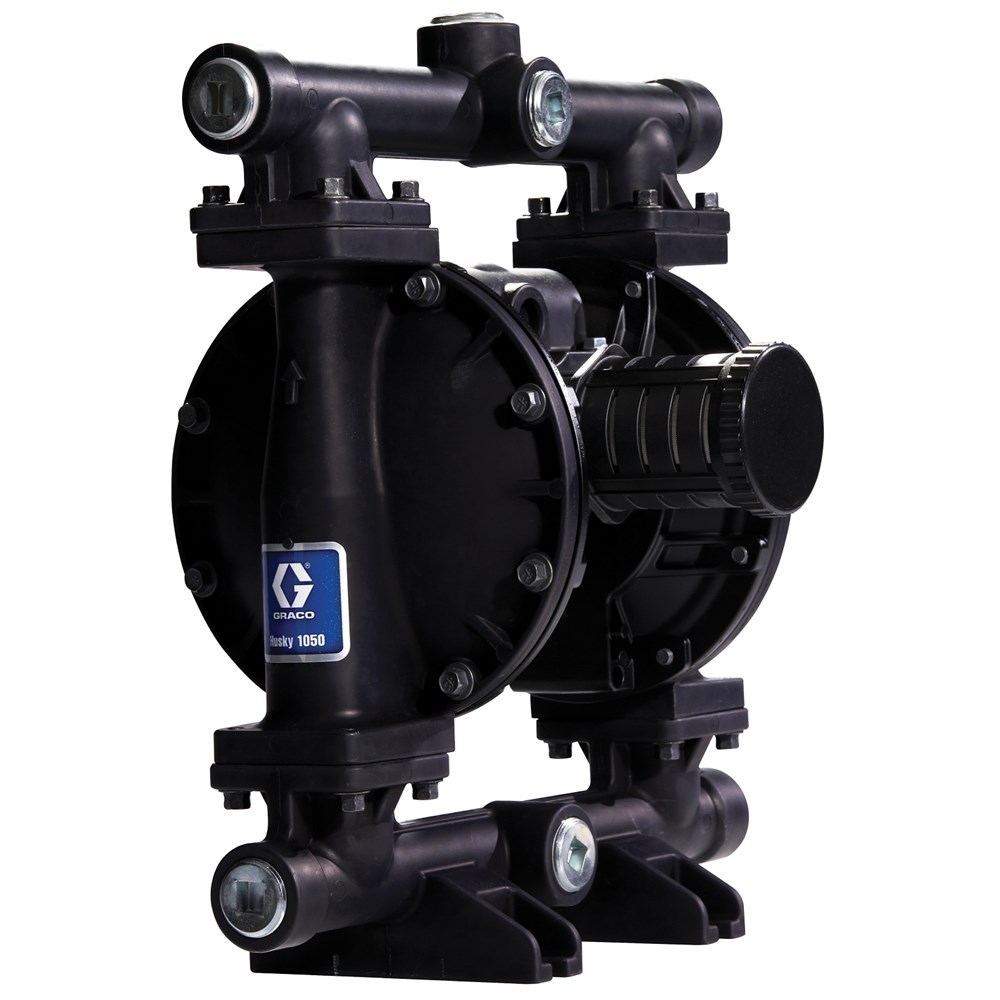

Husky 1050 AL 25.4 mm (1 in.) BSPT Pump, Standard AL Centre Section, SS Seats, PTFE Balls & PTFE Diaphragm
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Longer Diaphragm Life
Up to 5x longer diaphragm life for less maintenance and down-time
Modular Air Valve
One-Piece Center Section
Four-Bolt Joint Design
Multiple Ports
Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
30% more efficient than the market leader
20% increase in fluid flow compared to the Husky 1040
Suitable for Solvent / Flammable materials requiring PTFE Elastomers - multi purpose
Operational Specifications
Country of Origin: US
Height: 42.672 CM
Length: 39.624 CM
Width: 24.384 CM
Technical specifications
Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Fluid Inlet Size (cm/in): 2.54/1
Fluid Outlet Size (cm/in): 2.54/1
Maximum Air Consumption (SCFM): 67
Maximum Air Pressure (bar/psi): 8.6/125
Maximum Cycle Rate (CPM): 280
Maximum Flow Rate (L/min): 189
Maximum Fluid Pressure (bar/psi): 8.6/125
Maximum Operating Temperature ( C): 104
Maximum Solid Size (mm): 3.175
Model: Husky
Overall Height (in): 15.9
Series: 1050
diaphragm_compatible_material: PTFE
