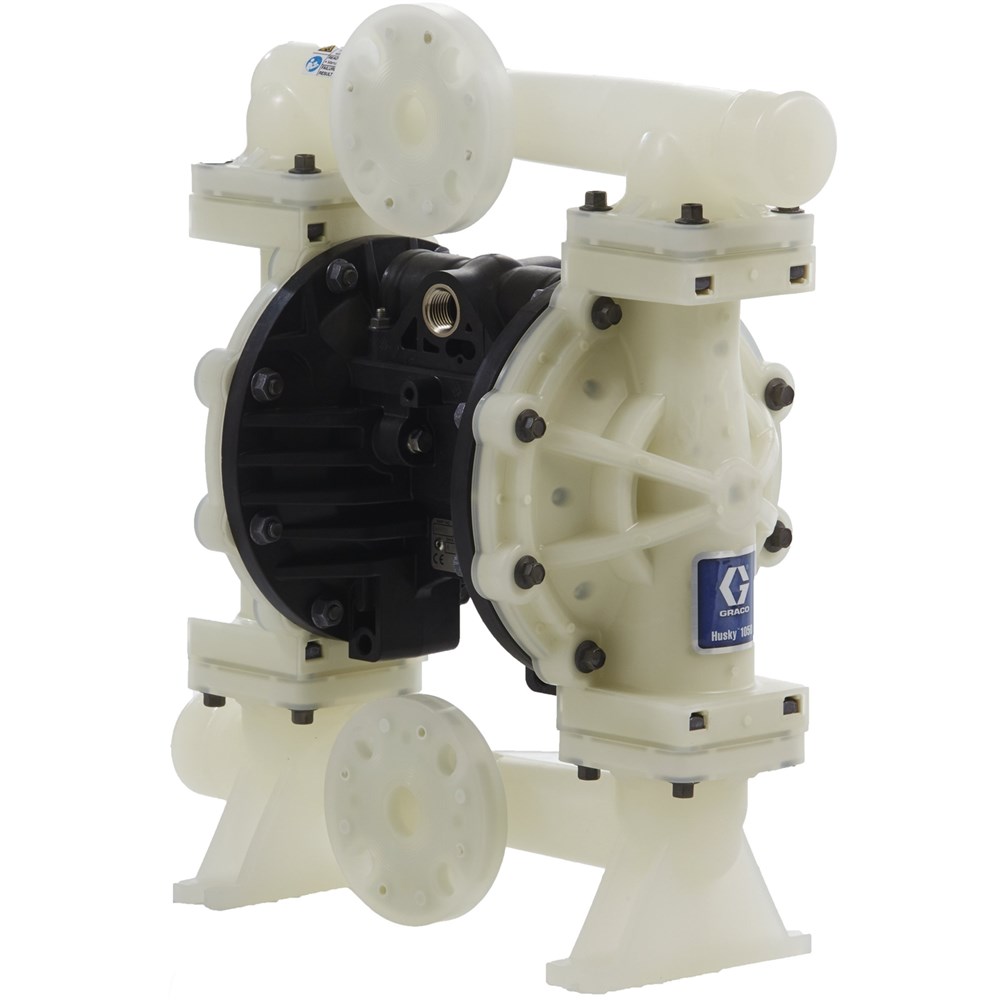

Husky 1050 PP (NPT) Pump, Centre Flange, PP Centre Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life
  • Up to 5x longer diaphragm life for less maintenance and down-time
• Modular Air Valve
  • Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section
  • Eliminates air leaks for more efficient operation
• Four-Bolt Joint Design
  • Bolted design provides even sealing pressure for leak-free operation
• Multiple Ports
  • Increased number of ports for installation flexibility
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

Highest Chemical Resistance where PTPE is required

Operational Specifications

• Country of Origin: US
• Height: 48.768 CM
• Length: 42.672 CM
• Width: 21.336 CM

Technical specifications

• Air Exhaust Port Size (in):
• Air Exhaust Port Thread Gender: Female
• Air Inlet Size (in):
• Air Inlet Thread Gender: Female
• Fluid Inlet Size (cm/in): 2.54/1
• Fluid Outlet Size (cm/in) 2.54/1
• Maximum Air Consumption (SCFM): 67
• Maximum Air Pressure (bar/psi): 8.6/125
• Maximum Cycle Rate (CPM): 280
• Maximum Flow Rate (L/min): 189
• Maximum Fluid Pressure (bar/psi): 8.6/125
• Maximum Operating Temperature ( C): 66
• Maximum Solid Size (mm): 3.175
• Model: Husky
• Overall Height (in): 17.8
• Series: 1050
• diaphragm compatible material: PTFE
