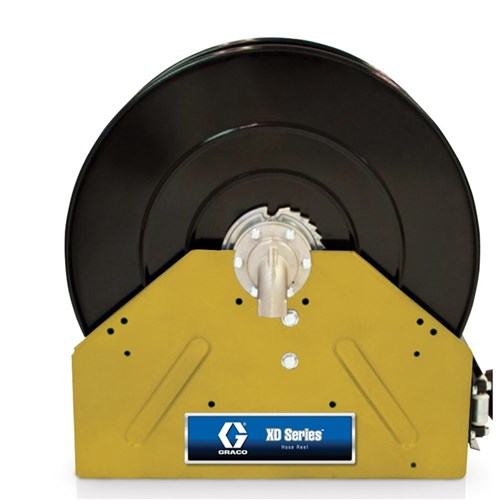

GRACO XD50 Yellow Diesel/Waste Oil Bare Reel

Product Code: AF-G-24P462

Brand
Graco
Increase value Decrease value
Description

XD50 , Diesel Fuel/WOE, 1-1/2 in. (13 mm) Inlet, Bare Reel (1-1/4 in. X 50 ft.Capacity), NPT, Yellow

Graco s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90 elbow with NPT threads

SPECIFICATIONS

  • Dry Weight (lb): 145
  • Hose Inside Diameter (mm): 31.75
  • Inlet Size (in): 1-1/2
  • Inlet Size (mm): 38.1
  • Maximum Working Pressure (psi): 600
  • Outlet Size (in): 1-1/2
  • Outlet Size (mm): 38.1
  • Overall Height (in): 30.13
  • Overall Height (mm): 765
  • Overall Length (in): 29.4
  • Overall Length (mm): 747
  • Overall Width (in): 18.24
  • Overall Width (mm): 463
  • Series: 50
  • Frame Type: Box Frame
  • Reel Thread Type: NPT
  • Recommended Fluid Type: Diesel Fuel, WOE
  • Hose Reel Type: Bare Reel
  • Model: XD
  • includes hose: No
Technical Specifications
Brand Graco

Click the button below to download this page as a PDF:



Graco Fluid Handling Solutions – Available at AFLO

Discover AFLO’s premium range of Graco fluid handling equipment, engineered for reliable performance across industrial, automotive, fleet servicing, and workshop environments. From oil and grease pumps to air-operated diaphragm pumps, fluid control meters, and lubrication systems, Graco products deliver exceptional efficiency, durability, and precision.

Graco equipment is ideal for demanding industries like mining, agriculture, and manufacturing. Shop confidently at AFLO, where you’ll find trusted Graco solutions backed by local support and expert advice.

Oil & Grease Pumps

Graco Fire-Ball Series (300 & 425)

    • Fire-Ball 425 (6:1, 10:1, or 75:1) – Designed for high-volume dispensing, these pumps feature a large air motor and corrosion-resistant components, ideal for fleet servicing and busy workshops.

    • Fire-Ball 300 (50:1) – A workshop favourite for consistent grease dispensing, offering long-term reliability with minimal maintenance requirements.

Graco LD Series Universal Oil Pump (3:1)

    • A cost-effective pump solution with thermal relief, built-in strainer, and a dirt-resistant pilot valve. Ideal for light-duty oil dispensing with great serviceability.

Diaphragm Pumps (Diesel & Fluid Transfer)

Graco Husky Air-Operated Diaphragm Pumps

    • Husky 716 (¾″ Aluminium) – Compact, leak-free, and low-pulsation, this model handles up to 61?L/min, perfect for oil, diesel, or antifreeze.

    • Husky 2150 (2″ Aluminium, Geolast) – High-flow (up to 568?L/min), energy-efficient, and easy to service. Built for large-scale fluid transfer applications.

    • Husky 15120 (Polypropylene / PVDF) – Designed for chemical handling, offering up to 120?GPM flow and up to 5× longer diaphragm life with stall-free operation.

Metering & Fluid Control Hardware

Graco Pulse Wireless Oil Gun (¾″ BSPT, High Flow)

    • A digital dispense gun with LCD display, PIN control, and high-flow output (68?L/min). Perfect for connected Pulse systems and multi-bay workshop use.

Graco EM8 Electronic Oil/Antifreeze Meter (½″ NPT)

    • A handheld metered gun with multi-unit LCD readout, twist-close nozzle, and IP69K rating—designed for accurate and robust performance in high-volume bays.

Graco Pulse Hub (FMS EU)

    • A centralised interface for managing Pulse systems—track dispense volumes, automate workflows, and improve fluid inventory visibility across your network.

Pulse Pro Extender / Repeater – Wall Mount (FMS AUS)

    • Extends Pulse coverage by 100+ metres. Ideal for large workshops or facilities with multiple service areas.

Hose Reels & Valves

Graco XD40 & XD50 Hose Reels

    • Available in various hose sizes (25 mm–38 mm), these reels are engineered with heavy-duty spools, ribbed frames, and full-flow swivel joints—ideal for diesel, oil, air, or water in harsh conditions.

Graco 4-Way Evacuation Valve (1″ NPT)

    • A self-sealing, flow-efficient valve that simplifies tank filling and emptying with minimal product loss. Quick to install and ideal for waste/recovery systems.

Why Choose Graco at AFLO?

  • Robust Engineering
    Built for longevity, with corrosion-resistant materials like stainless steel, nitrided surfaces, and anodised aluminium.
  • Scalable Systems
    Graco’s Pulse platform is designed for growth—supporting large dispense networks with automated tracking and integration.
  • Australian-Ready Support
    AFLO stocks parts locally and provides expert advice to ensure your Graco system runs smoothly under Australian conditions.
