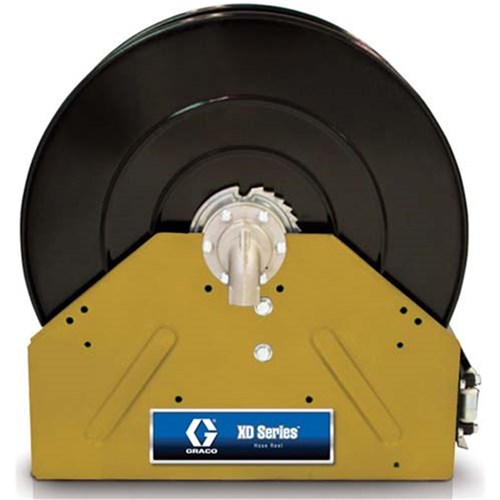

GRACO XD40 Yellow Reel-Bare

Product Code: AF-G-24P318

Brand
Graco
Increase value Decrease value
Description

XD40 , Air/Water/Diesel Fuel/WOE, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Yellow

Graco s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90 elbow with NPT threads
  • For Air / Water / Diesel Fuel

Technical specifications

  • Dry Weight (lb): 125
  • Hose Inside Diameter (mm): 25.4
  • Inlet Size (in): 1
  • Inlet Size (mm): 25.4
  • Maximum Working Pressure (psi): 600
  • Outlet Size (in): 1
  • Outlet Size (mm): 25.4
  • Overall Height (in): 26.13
  • Overall Height (mm): 664
  • Overall Length (in): 26.4
  • Overall Length (mm): 671
  • Overall Width (in): 16.54
  • Overall Width (mm): 420
  • Series: 40
  • Frame Type: Box Frame
  • Reel Thread Type: NPT
  • Recommended Fluid Type: Air, Water, Diesel Fuel, WOE
  • Hose Reel Type: Bare Reel
  • Model: XD
  • includes hose: No
Technical Specifications
Brand Graco
