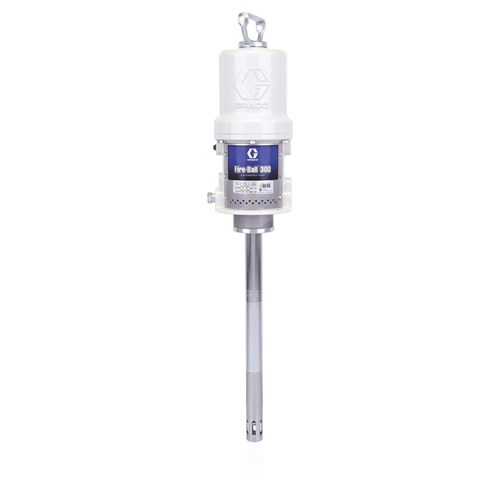

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 50:1 in grease dispense applications.
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Operational Specifications
Country of Origin: US
Height: 27.432 CM
Length: 91.44 CM
Width: 24.384 CM
Technical Specifications
Air Inlet Size (in): 3/8"
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Motor Effective Diameter (in): 3
Fluid Inlet Thread Gender: Female
Fluid Inlet Type: Slotted
Fluid Outlet Thread Gender: Female
Fluid Outlet Size (mm): 6.35
For Use With: Grease
Maximum Air Consumption (SCFM): 22.8
Maximum Air Inlet Pressure (bar): 9.65
Maximum Air Inlet Pressure (kPa): 965
Maximum Air Inlet Pressure (psi): 140
Maximum Continuous Cycle Rate (CPM): 76
Maximum Intermittent Cycle Rate (CPM): 76
Maximum Working Pressure (bar): 580
Maximum Working Pressure (kPa): 58000
Maximum Working Pressure (psi): 8400
Sound Pressure Level (dB(A)): 77.8
Maximum Working Pressure (MPa): 58
