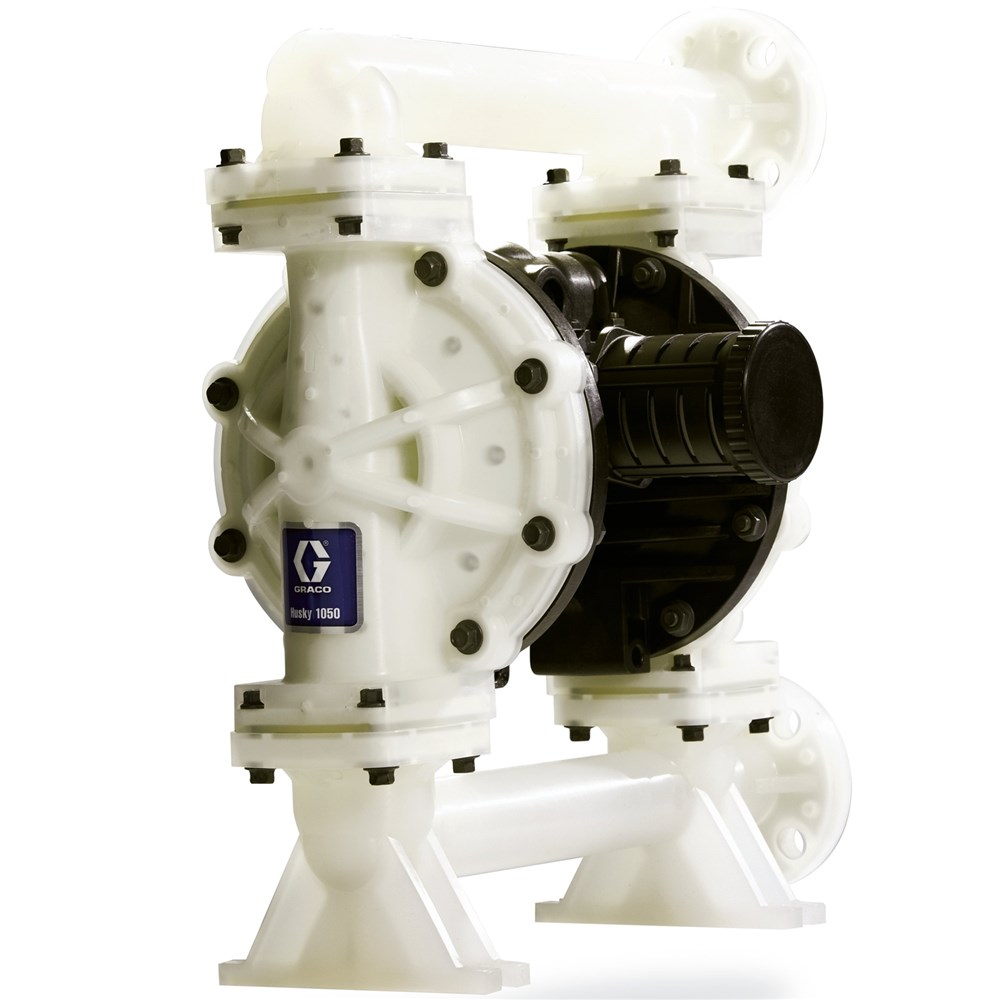

Husky 1050 PP (NPT) Pump, End Flange, PP Centre Section, PP Seats, PTFE Balls & PTFE Diaphragm
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
- Longer Diaphragm Life
- Up to 5x longer diaphragm life for less maintenance and down-time
- Modular Air Valve
- Stall-free, low pulsation operation provides smooth and rapid changeover
- One-Piece Center Section
- Eliminates air leaks for more efficient operation
- Four-Bolt Joint Design
- Bolted design provides even sealing pressure for leak-free operation
- Multiple Ports
- Increased number of ports for installation flexibility
- Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1040
Suitable for highest Chemical Resistance where PTFE is required
Operational Specifications
- Country of Origin: US
- Height: 48.768 CM
- Length: 42.672 CM
- Width: 21.336 CM
- Shipping Weight: 9.75 KG
Technical Specifications
- Air Exhaust Port Size (in) : 3/4
- Air Exhaust Port Thread Gender: Female
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Fluid Inlet Size (cm/in): 2.54/1
- Fluid Outlet Size (cm/in) 2.54/1
- Maximum Air Consumption (SCFM): 67
- Maximum Air Pressure (bar/psi): 8.6/125
- Maximum Cycle Rate (CPM): 280
- Maximum Flow Rate (L/min): 189
- Maximum Fluid Pressure (bar/psi): 8.6/125
- Maximum Operating Temperature ( C): 66
- Maximum Solid Size (mm): 3.175
- Model: Husky
- Overall Height (in): 17.8
- Series: 1050
- diaphragm compatible material: PTFE
