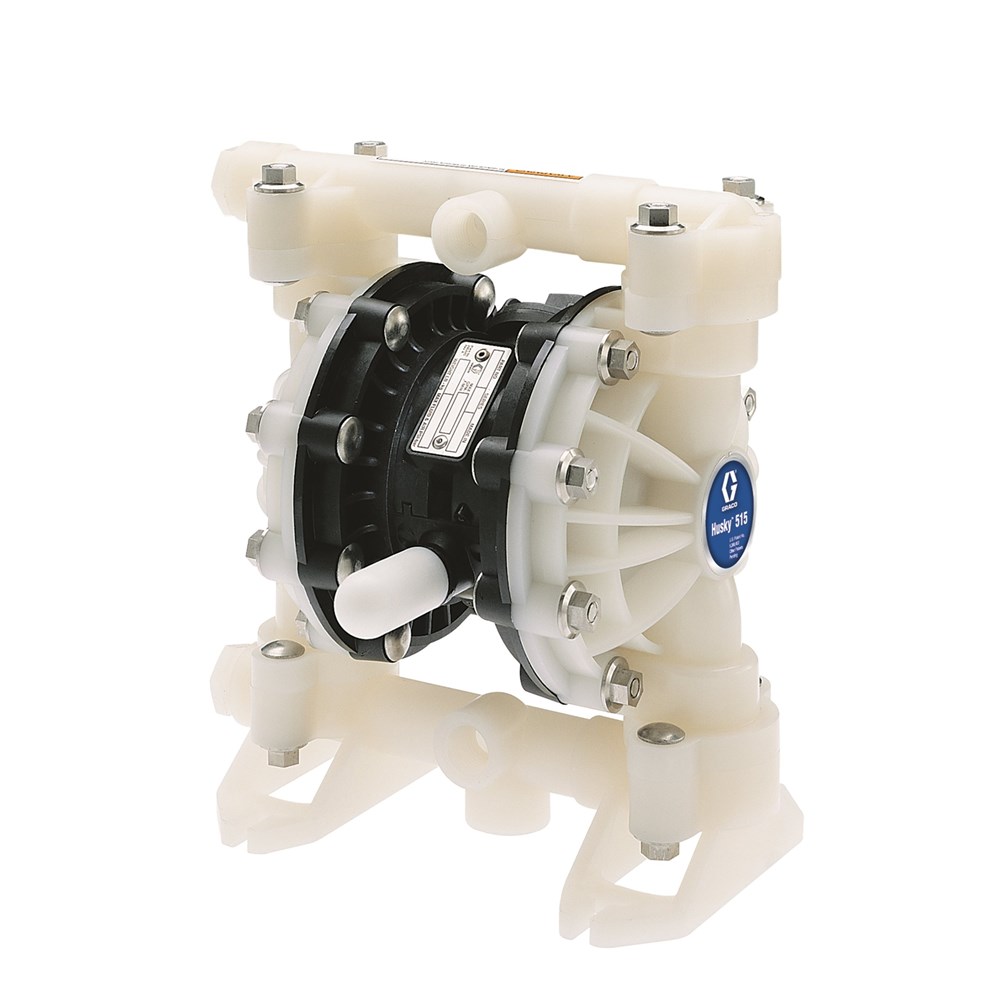

Husky 515 AC 13 mm NPT Standard Pump, PP Centre Section, AC Seats, BN Balls & BN Diaphragm
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Centre and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks
Operates on as little as 1.4 bar (0.14 MPa, 20 psi)
Split manifold option to pump multiple fluids without mixing
Delivery up to 56.7 lpm (15 gpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance
Suitable for Oil, Waste oil, Diesel, Coolant
Operational Specifications
Country of Origin: CN
Height: 30.48 CM
Length: 27.432 CM
Width: 21.336 CM
Shipping Weight: 4.54 KG
Technical specifications
Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Fluid Inlet Thread Gender: Female
Fluid Outlet Thread Gender : Female
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (L/min): 57
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature ( C): 82
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature ( C): 4
Model: Husky
Overall Height (in): 10.63
Series: 515
diaphragm_compatible_material: Buna
compressor_required: Yes
