Product Code: AF-RA-63095

Description

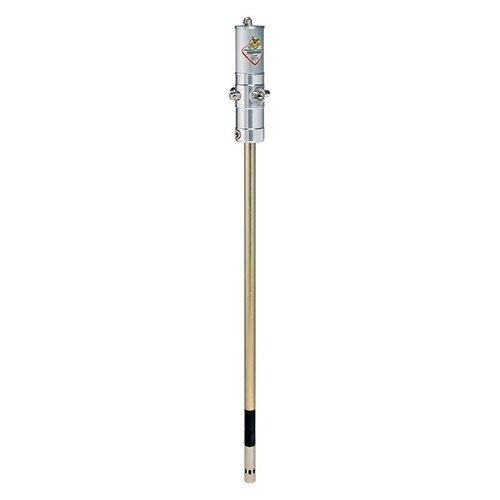

The RAASM 65:1 Ratio Grease Pump is a High Pressure Grease Pump that has the ability to dispense 1900 g/min. These pumps have been designed to dispense high and medium-viscosity grease.

SPECIFICATIONS

Compression Ratio: 65:1
Flow Rate: 1.9 kg/min
Air Cylinder Diameter: 70mm
Air Consumption: 440 LPM (15.5 cfm) at 116psi
Air Inlet Connection: F 1/4 G
Fluid Outlet Connection: F 3/8 G

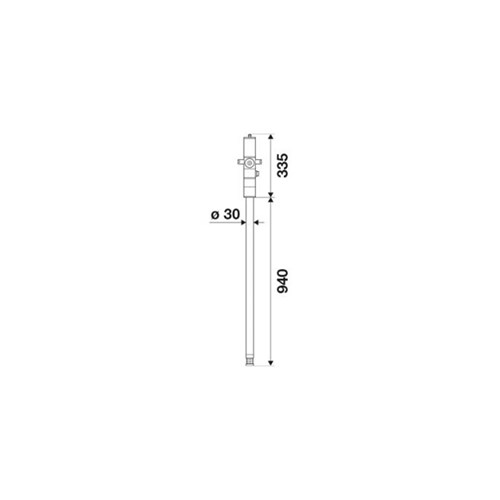

Suction Tube Length: 940mm
Suction Tube Diameter: 30mm
Industries: Agriculture, Aeronautic, Railway, Manufacturing, and Mining

Technical Specifications

Brand	RAASM
Dimensions	135x12x12
Weight	8 Kg
