RAASM diaphragm pumps with cataphoresis treatment are the ideal solution for use in particularly aggressive working environments thanks to the coating of a protective layer that ensures high resistance to chemical and environmental corrosion processes.

POWERCRON 6000 HE cataphoresis treatment ensures better coating of the paint film over the entire surface of the pump, with significant benefits in terms of durability.

In addition, they can be used in applications with potentially explosive atmospheres thanks to their compliance with the ATEX directive

Diaphragm pumps R. 1:1 for transferring, made of die-cast aluminum, with black cataphoresis treatment that guarantees resistance up to 500 hours in saline fog.

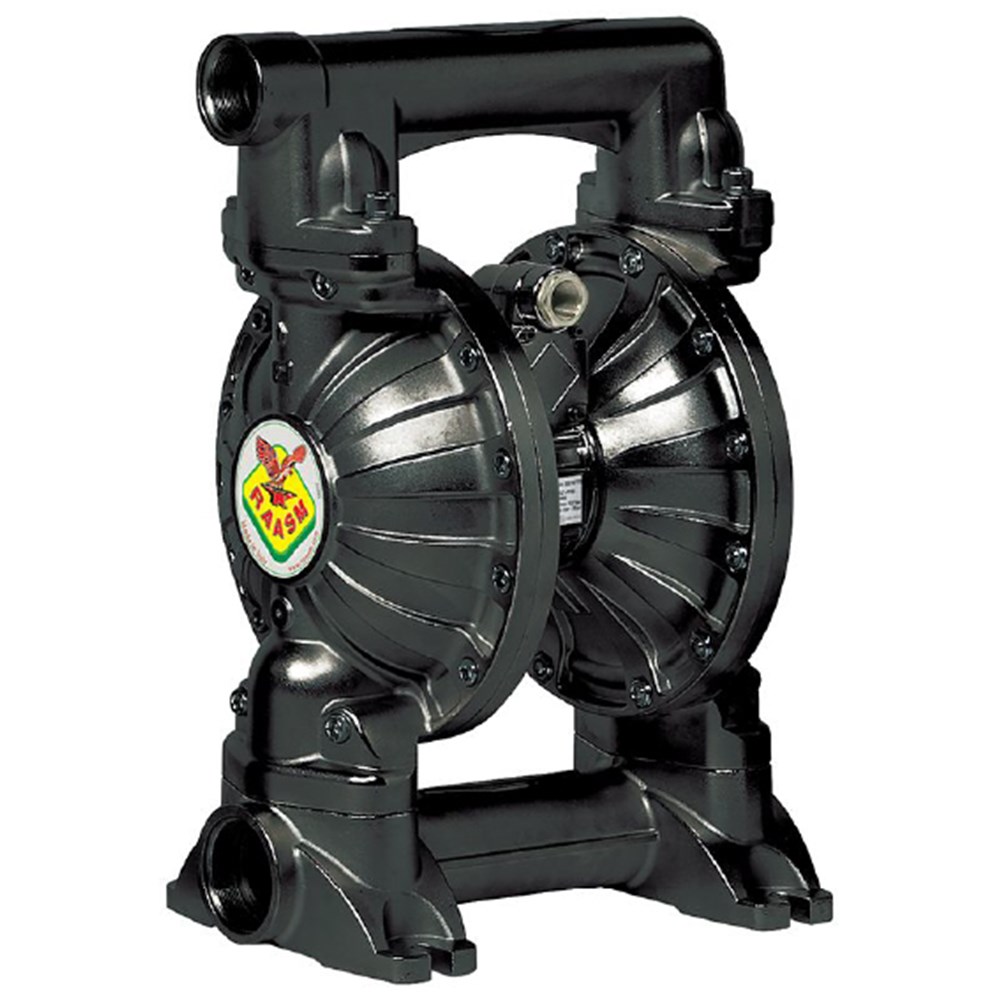

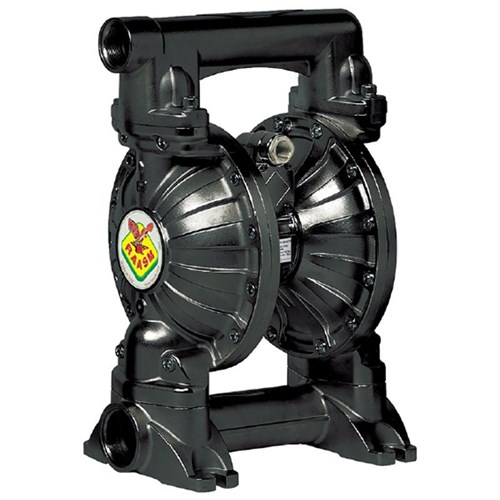

Diaphragm pump in aluminum with cataphoresis treatment series AAB-12 with membranes in NBR, balls and seats in Hytrel.

Features
Flow rate: 610 l/min
Ratio: 1:1
Max pressure: 8 bar
Max cycles for minute: 147 cpm
Delivery for cycles: 4.150 l
Max suction lift: dry column 5 m - wet column 7.5 m
Max size pumpable solids: 6.5mm
Max working temperature: 100 C
Noise level: 82 dB
Max air consumption: 4.00 m3/min
Air working pressure: 2 - 6 bar
Air inlet connection: G 3/4" (f)
Air outlet connection (muffler): G 1" (f)
Fluid inlet connection: G 2.1/2" (f)
Fluid outlet connection: G 2" (f)
Balls for inlet: ball valve
Membranes: NBR
Balls: Hytrel
Seats: Hytrel
