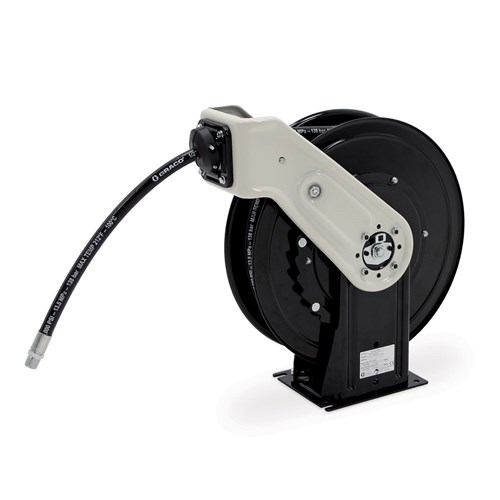

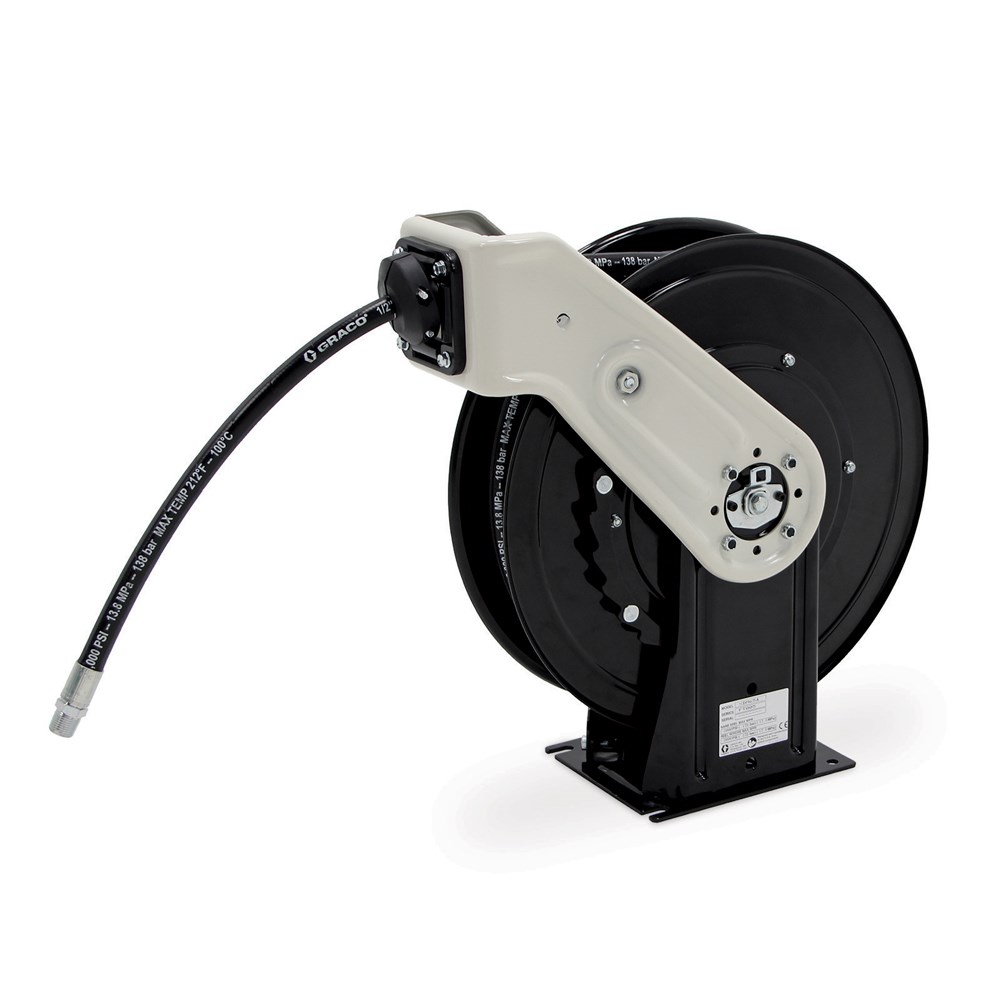

XDX 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, White
Graco s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
Operational Specifications
| UPC product | 769946210231 |
|---|
| Division | LED |
|---|
| Family code | FAMXD1 |
|---|
| Country of Origin | US |
|---|
| Unit of Measure | EA |
|---|
| Height | 67.31 CM |
|---|
| Length | 62.23 CM |
|---|
| Width | 24.13 CM |
|---|
| Volume | .101 M3 |
|---|
| Shipping Weight | 32.84 KG |
|---|
| HTS Code (AU) | 8479899090 |
|---|
Technical specifications
| Hose Inside Diameter (mm) | 9.525 |
|---|
| Inlet Size (in) | 1/2 |
|---|
| Inlet Size (mm) | 12.7 |
|---|
| Maximum Temperature ( C) | 93 |
|---|
| Maximum Temperature ( F) | 200 |
|---|
| Maximum Working Pressure (psi) | 4800 |
|---|
| Minimum Temperature ( C) | -40 |
|---|
| Minimum Temperature ( F) | -40 |
|---|
| Outlet Size (in) | 1/4 |
|---|
| Outlet Size (mm) | 6.35 |
|---|
| Overall Height (in) | 25.2 |
|---|
| Overall Height (mm) | 640 |
|---|
| Overall Length (in) | 21 |
|---|
| Overall Length (mm) | 533 |
|---|
| Overall Width (in) | 7.5 |
|---|
| Overall Width (mm) | 191 |
|---|
| Series | 20 |
|---|
| Frame Type | Dual Pedestal |
|---|
| Reel Thread Type | NPT |
|---|
| Inlet Thread Gender | Male |
|---|
| Outlet Thread Gender | Male |
|---|
| Recommended Fluid Type | Grease |
|---|
| Hose Reel Type | Reel with Hose |
|---|
| Model | XDX |
|---|
| includes_hose | Yes |
|---|
