Gray Manufacturing s high-rise automotive transmission jack features the most flexible, usable and safe head-plate design to boost productivity.

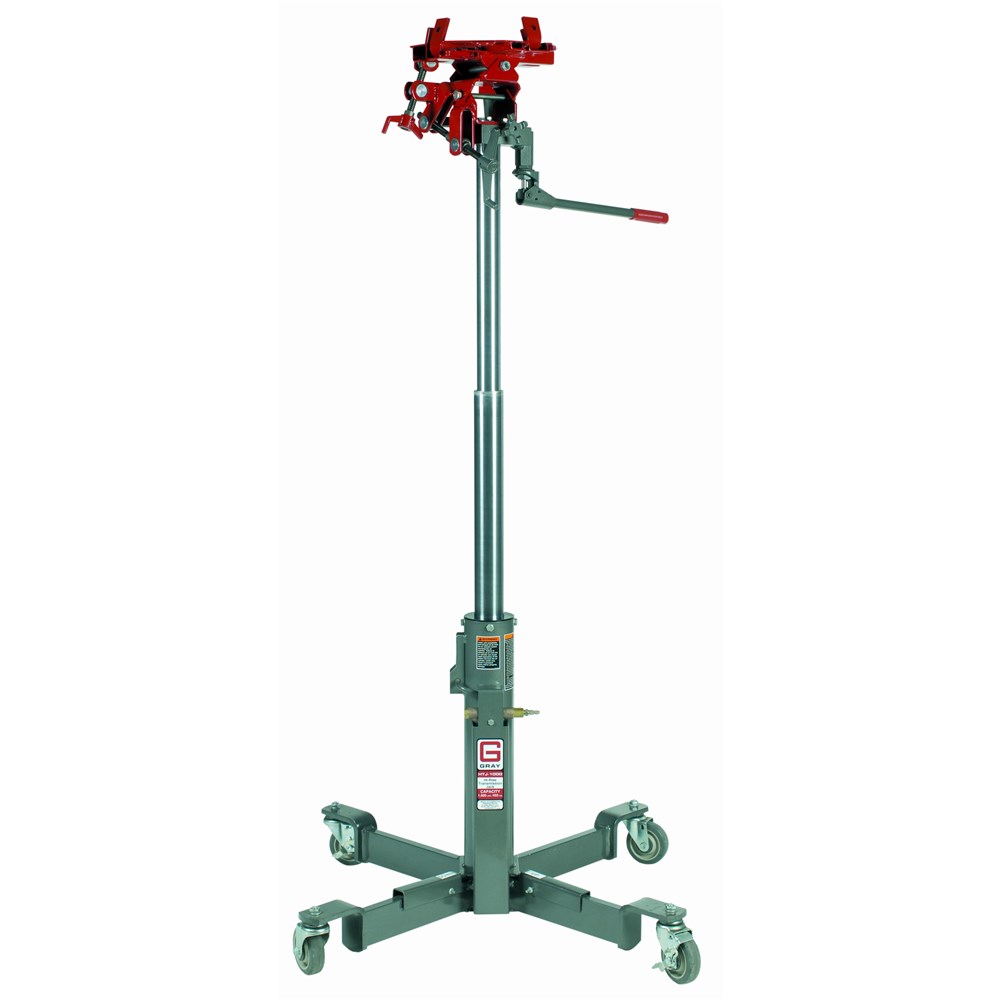

Gray Manufacturing s HTJ-1000 high-rise automotive transmission jack features a two-stage design: the first stage is 100% air operated for speed, while the second stage is hydraulic for precise control.
The swivel casters make for easy maneuverability and a nylon speed-strap is included to quickly and conveniently secure the load.
The heavy duty, acme threaded screws provide greater bearing surface for easier tilt adjustments.
The four quick-ratcheting brackets make the head-plate flexible and easy to use.
FEATURES
- Rated #1 by professional R&D Technicians
- Gray Manufacturing crafted transmission jack adapters for multiple transmissions
- Acme threaded screws
- Two-stage design
- Made in the U.S.A.
SPECIFICATIONS
- Capacity: 1,000 lbs / 453.59 kg
- Minimum Start Height: 34 1/2 / 87.63 cm
- Maximum Lift Height: 72 / 182.88 cm
- Power: 1st Stage: Air / 2nd Stage: Hydraulic
- Head Plate Dimensions: 11 1/2 x 11 1/2 / 29.21 x 29.21 cm
- Overall Width: 41 / 104.14 cm
- Overall Length: 41 / 104.14 cm
- Swivel Caster Diameter: 4 / 10.16 cm
- Required Air Pressure: 90 160 PSI / 6.2 11 Bar
- Tilt Forward: 40
- Tilt Rear: 20
- Tilt Side: 10
