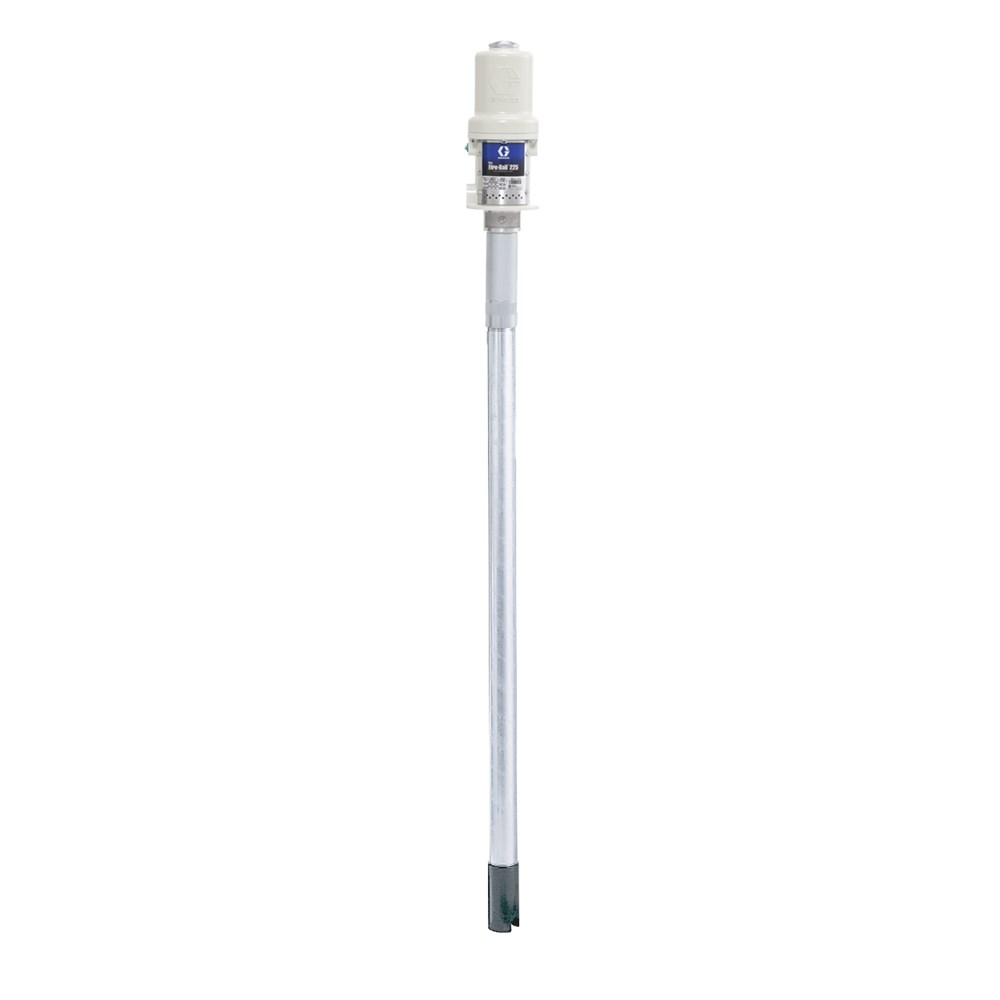

GRACO Mini Fire-Ball 225 3:1 Universal size Oil Pump with Suction Tube and Bung Adapter
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.
- Durable Thick cast aluminium air motor housing offers unmatched durability.
- Fewer Repairs Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant Corrosion-resistant design utilises liquid salt nitriding, nickel plating, stainless steel, aluminium and chrome on key components for longer life.
Operational Specifications
Country of Origin: US
Height: 27.432 CM
Length: 156.21 CM
Width: 24.384 CM
Shipping Weight: 9.75 KG
Technical specifications
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Female
Air Motor Effective Diameter (in): 2.25
Cycles Per Gallon: 43.5
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Gender: Female
For Use With: Petroleum and synthetic-based oils (motor, gear and ATF)
Includes: Hose Installation Kit, Drum Cover, Air Regulator
Maximum Air Consumption (SCFM): 20
Maximum Air Inlet Pressure (bar): 12.41
Maximum Air Inlet Pressure (kPa): 1241
Maximum Air Inlet Pressure (psi): 180
Maximum Continuous Cycle Rate (CPM): 100
Maximum Working Pressure (bar): 37
Maximum Working Pressure (kPa): 3700
Maximum Working Pressure (psi): 540
Model: Mini Fire-Ball
Portable: Portable
Series: 225
Sound Pressure Level (dB(A)): 77.8
Maximum Working Pressure (MPa): 3.7
