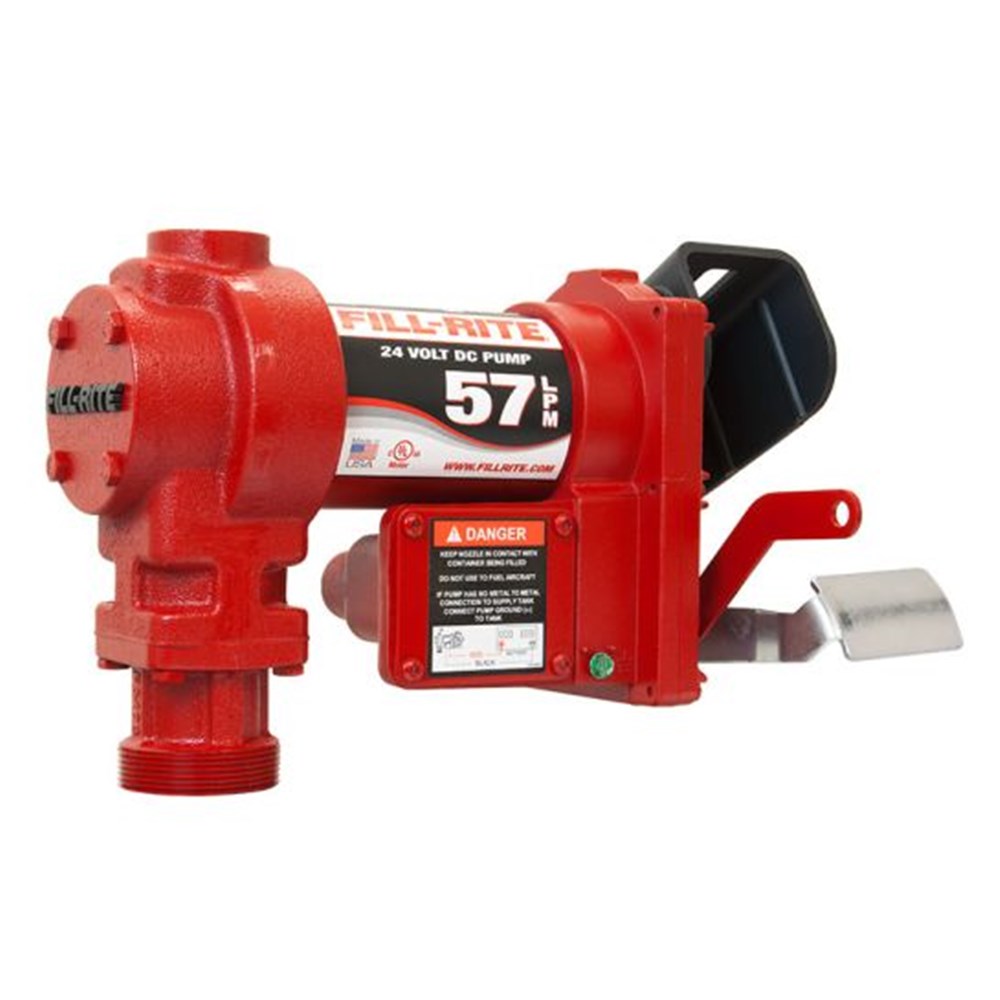

FILL-RITE Pump kit
1200 Series (12V) 57LPM Pump ( " bsp), hose, telescopic tube, battery cables and manual nozzle.
FEATURES
- Cast-Iron Construction heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- Reliable Performance Fill-Rite s trusted rotary vane pump technology delivers 75L per minute, perfect for filling equipment with fuel tanks from 75-302L
- Mobile Tanks powered by a 12V motor and equipped with a 50.8mm bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
- Fluid Compatibility designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
- Easy Installation adjustable electrical junction box rotates 180 for easier wiring and more flexible installations in tight spaces
- Long Life thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
- Equipment Safeguard built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
- Reliable On-Off Switch on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
- Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
You work through all kinds of conditions, so why shouldn t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognise Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
PERFORMANCE
- Max Flowrate: 75Lpm
- Power Type: 12V DC
- Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
- Inlet Size / Connection / Thread: 25.4mm / Female / NPT
- Outlet Size / Connection / Thread: 25.4mm / Female / NPT
- Mounting Size / Thread / Type: 50.8mm / NPT / Bung Mount
- Duty Cycle (min): 30min on / 30min off
- Power Source: Electrical
- Motor Power (HP): 0.25
- Max Current (A): 19 A
- Thermal Protection Switch: Yes
- Self Priming: Yes
- Suction Lift (mm): 2438.4
- Dry Vacuum (mm Hg): 127
- Discharge Head (mm): 11277.6
- Strainer Mesh Size (Micron): 20x20
- Max Operating Pressure (PSI): 16
- Viscosity Range (cSt): 1 to 4
